RT001823 Series

Catalog

RECEPTACLE, SQUARE FLANGE, 23 POSITION, FEMALE, SHELL SIZE 18, WITH END CAP WITH INDIVIDUAL WIRE SEALING /BAG ROHS COMPLIANT: YE

Part	Insert Material	Fastening Type	Ingress Protection Description	Ingress Protection IP Rating	Contact Type	Contact Shape	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Feature	Features	Housing Color	Shielding	Shell Material	Contact Size	Note	Mounting Type	Number of Positions	Orientation	Connector Type	Shell Finish	Material Flammability Rating	Type	Current Rating	Color	Contact Finish - Mating	Termination	Voltage Rating	Contact Material	Applications	Contact Finish Thickness - Mating	Primary Material	Includes	Includes Total Count	Voltage Rating (Type)
McGill Microwave Systems RT001823SNHEC	Thermoplastic	Bayonet Lock	Dust Tight Waterproof	IP67	Crimp	Circular	23	18	-40 °C	105 °C	Flange	Backshell	Silver	Shielded	Zinc Alloy	16 S	Contacts Not Included	Panel Mount	23	N (Normal)	Receptacle Housing	Nickel	UL94 V-0	For Female Sockets

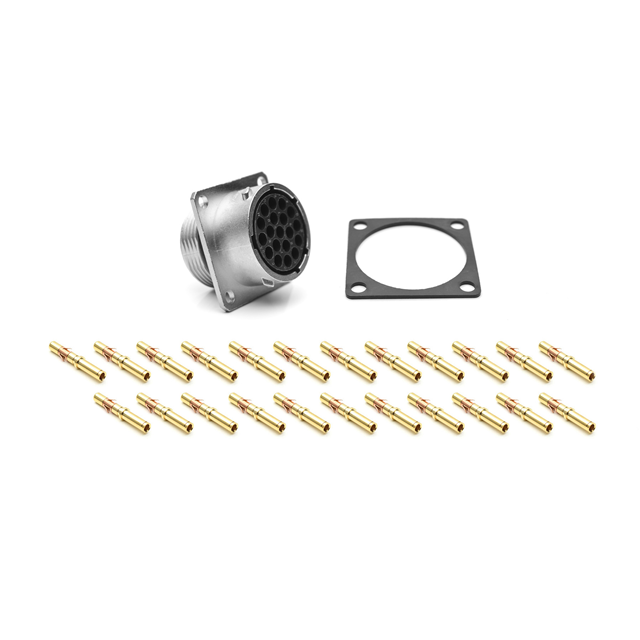

McGill Microwave Systems RT001823SKNH03-K	Nylon 6/6 PA66 Polyamide	Bayonet Lock	Dust Tight Water Resistant Waterproof	IP67 IP69K			23	18	-40 °C	105 °C	Flange			Shielded	Zinc Die Cast			Panel Mount	23	N (Normal)	Female Sockets Receptacle	Nickel	UL94 V-0		13 A	Silver	Gold	Crimp	250 V	Brass	Aerospace Automation Industrial Telecom Transportation	Flash	Metal

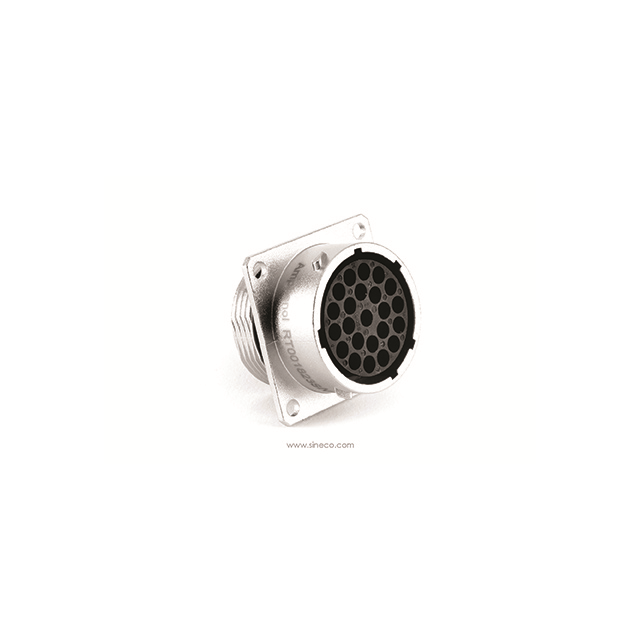

McGill Microwave Systems RT001823SNH03	Thermoplastic	Bayonet Lock	Dust Tight Waterproof	IP67	Crimp	Circular	23	18	-40 °C	125 °C	Flange		Silver	Shielded	Zinc Alloy	16 S	Contacts Not Included	Panel Mount	23	N (Normal)	Receptacle Housing	Nickel	UL94 V-0	For Female Sockets										Connector Gasket O-Ring	3 pcs

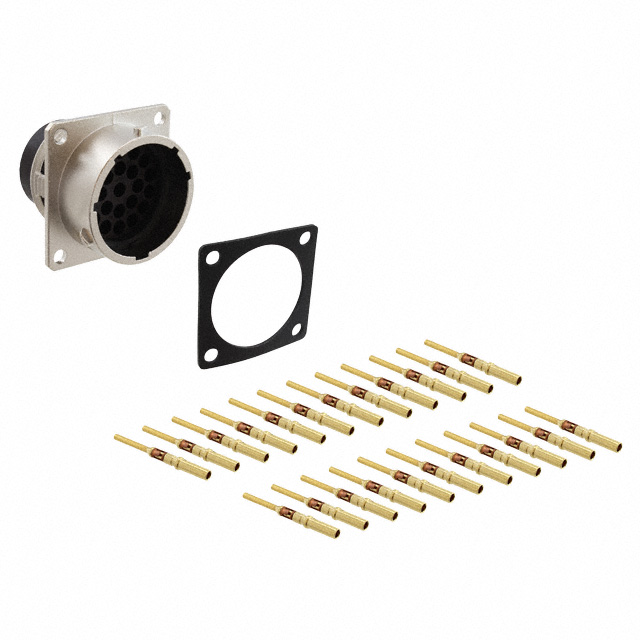

McGill Microwave Systems RT001823PNH-K		Bayonet Lock	Dust Tight Waterproof	IP67			23	18	-40 °C	105 °C	Flange				Zinc Die Cast			Panel Mount	23	N (Normal)	Male Pins Receptacle	Nickel			13 A	Silver	Gold	Crimp	250 V			Flash	Metal			DC

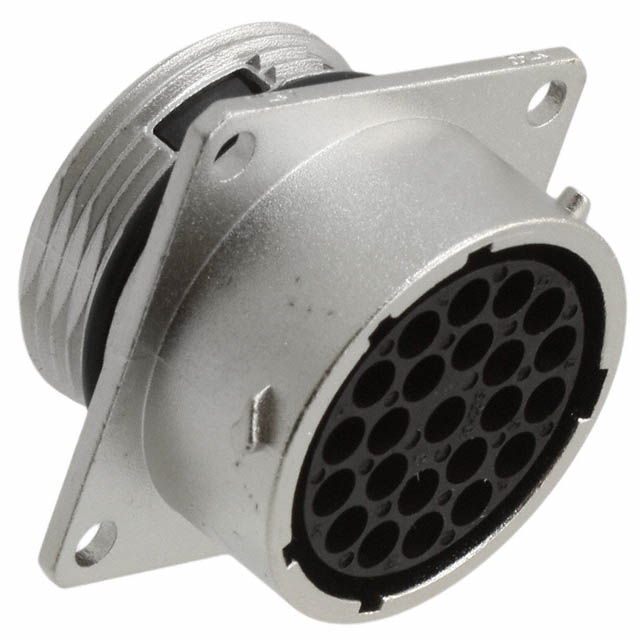

McGill Microwave Systems RT001823SNH	Thermoplastic	Bayonet Lock	Dust Tight Waterproof	IP67	Crimp	Circular	23	18	-40 °C	105 °C	Flange		Silver	Shielded	Zinc Alloy	16 S	Contacts Not Included	Panel Mount	23	N (Normal)	Receptacle Housing	Nickel	UL94 V-0	For Female Sockets

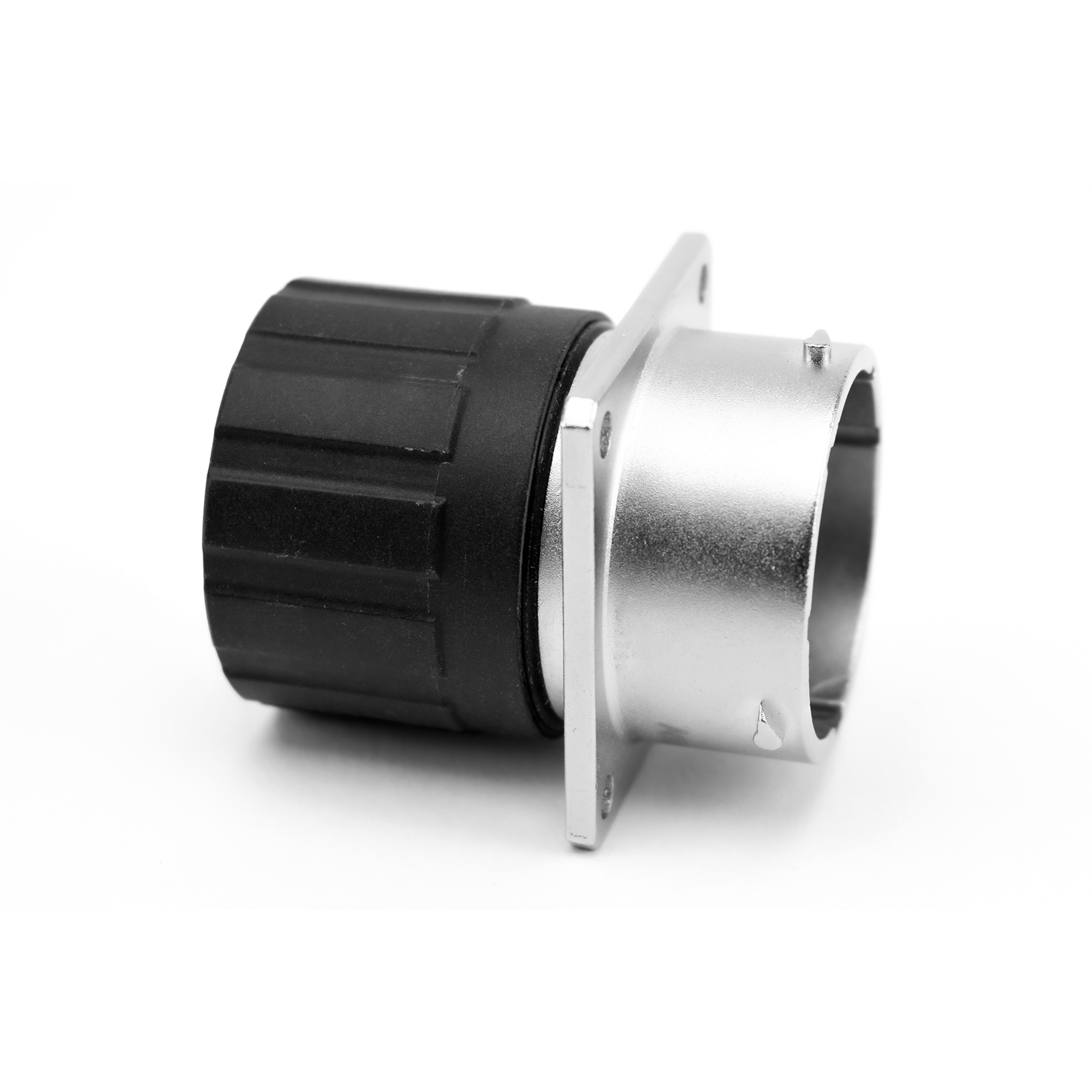

McGill Microwave Systems RT001823SNHEC03	Thermoplastic	Bayonet Lock	Dust Tight Waterproof	IP67	Crimp	Circular	23	18	-40 °C	125 °C	Flange	Cap (Cover)	Silver	Shielded	Zinc Alloy	16 S	Contacts Not Included	Panel Mount	23	N (Normal)	Receptacle Housing	Nickel	UL94 V-0	For Female Sockets									Metal
McGill Microwave Systems RT001823PKNH03-K	Nylon 6/6 PA66 Polyamide	Bayonet Lock	Dust Tight Water Resistant Waterproof	IP67 IP69K			23	18	-40 °C	105 °C	Flange			Shielded	Zinc Die Cast			Panel Mount	23	N (Normal)	Male Pins Receptacle	Nickel	UL94 V-0		13 A	Silver	Gold	Crimp	250 V	Brass	Aerospace Automation Industrial Telecom Transportation	Flash	Metal
