ADG1613 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

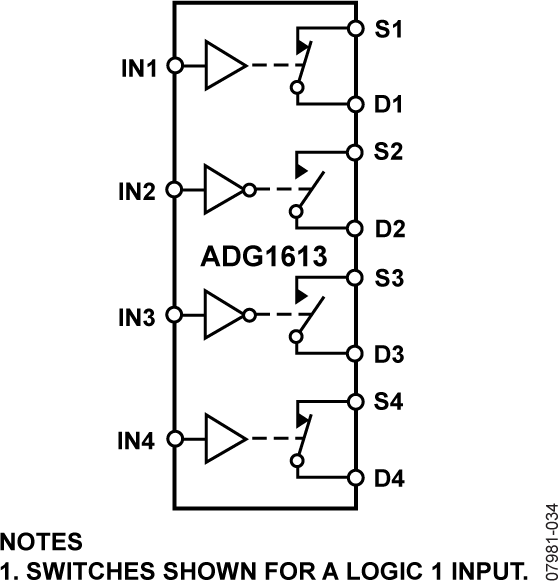

1 Ω TYPICAL ON RESISTANCE, ±5 V, +12 V, +5 V, AND +3.3 V QUAD SPST SWITCHES

Part	Channel Capacitance (CD(off))	Channel Capacitance (CS(off))	Mounting Type	Demultiplexer Outputs	Multiplexer Inputs	Package Name	Channel-to-Channel Matching (ΔRon)	Voltage - Supply, Single (V+) (Maximum)	Voltage - Supply, Single (V+) (Minimum)	Switch Circuit Type	Switch Contact	Charge Injection	On-State Resistance (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Switch Time Toff (Max)	Switch Time Ton (Max)	Voltage - Supply, Dual (Nominal)	Voltage - Supply, Dual (Minimum)	Voltage - Supply, Dual (Maximum)	-3db Bandwidth	Number of Circuits	Package Length	Package Width	Crosstalk	Current - Leakage (Max)	Package / Case
Analog Devices Inc./Maxim Integrated ADG1613BRUZ-REEL7	60 pF	60 pF	Surface Mount	1	1	16-TSSOP	30 mOhm	16 V	3.3 V	SPST	NC NO	170 pC	1.1 Ohms	125 °C	-40 °C	87 ns	156 ns	3.3 V	-3.3 V	8 V	38 MHz	4	0.173 in	4.4 mm	-110 dB	300 pA
Analog Devices Inc./Maxim Integrated ADG1613BCPZ-REEL7	60 pF	60 pF	Surface Mount	1	1	16-LFCSP-VQ	30 mOhm	16 V	3.3 V	SPST	NC NO	170 pC	1.1 Ohms	125 °C	-40 °C	87 ns	156 ns	3.3 V	-3.3 V	8 V	38 MHz	4	4 mm	4 mm	-110 dB	300 pA	16-VQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADG1613BCPZ-REEL	60 pF	60 pF	Surface Mount	1	1	16-LFCSP-VQ	30 mOhm	16 V	3.3 V	SPST	NC NO	170 pC	1.1 Ohms	125 °C	-40 °C	87 ns	156 ns	3.3 V	-3.3 V	8 V	38 MHz	4	4 mm	4 mm	-110 dB	300 pA	16-VQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADG1613BRUZ	60 pF	60 pF	Surface Mount	1	1	16-TSSOP	30 mOhm	16 V	3.3 V	SPST	NC NO	170 pC	1.1 Ohms	125 °C	-40 °C	87 ns	156 ns	3.3 V	-3.3 V	8 V	38 MHz	4	0.173 in	4.4 mm	-110 dB	300 pA
Analog Devices Inc./Maxim Integrated ADG1613BRUZ-REEL	60 pF	60 pF	Surface Mount	1	1	16-TSSOP	30 mOhm	16 V	3.3 V	SPST	NC NO	170 pC	1.1 Ohms	125 °C	-40 °C	87 ns	156 ns	3.3 V	-3.3 V	8 V	38 MHz	4	0.173 in	4.4 mm	-110 dB	300 pA
