XPEBRD Series

Catalog

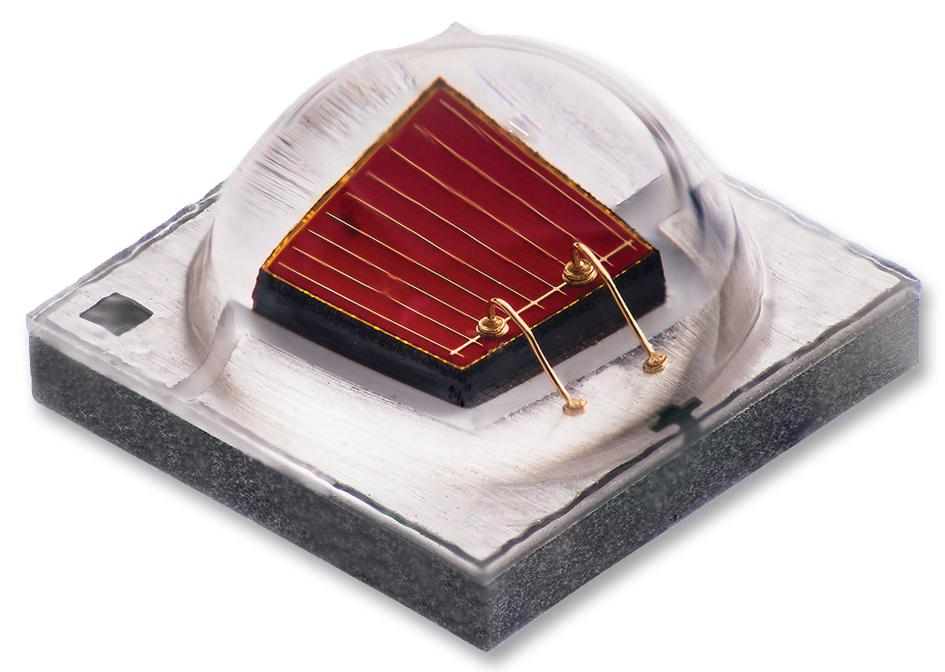

XLAMP XP-E LIGHT EMITTING DIODE RED

Part	Color	Package / Case	Package Name	Current - Test	Lumens/Watt	Wavelength (Nominal)	Wavelength (Maximum)	Wavelength (Minimum)	Wavelength	Voltage - Forward (Vf) (Typ)	Mounting Type	Luminous Flux	Luminous Flux (Maximum)	Luminous Flux (Minimum)	Viewing Angle	Size / Dimension Length	Size / Dimension Width	Current - Max	Temperature - Test	Height - Seated (Max)	Thermal Resistance of Package
CreeLED, Inc. XPEBRD-L1-0000-00802	Red	1414 (3535 Metric)	SMD	350 mA	100 lm/W	623 nm	625 nm	620 nm	623 nm	2.2 V	Surface Mount	77 lm	81 lm	74 lm	130 °	0.136 in	0.136 in	1 A	25 °C	0.094 in	5 °C/W
CreeLED, Inc. XPEBRD-L1-0000-00501	Red	1414 (3535 Metric)	SMD	350 mA	77 lm/W	625 nm	630 nm	620 nm	625 nm	2.2 V	Surface Mount	59 lm	62 lm	57 lm	130 °	0.136 in	0.136 in	1 A	25 °C	0.094 in	5 °C/W

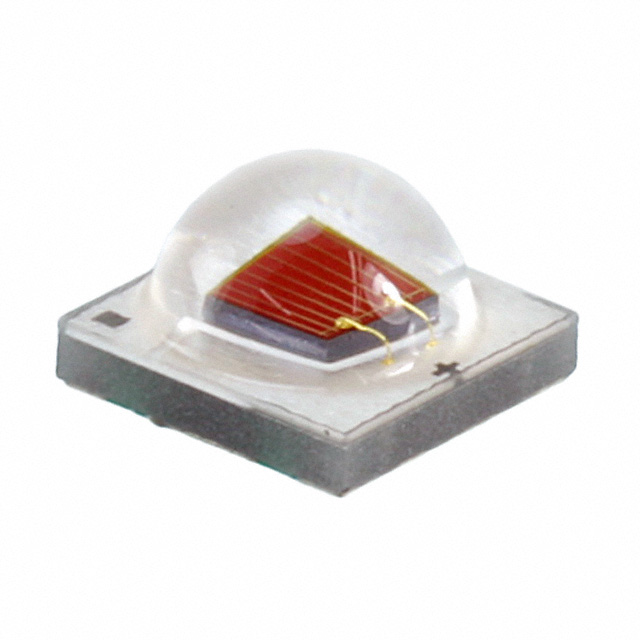

CreeLED, Inc. XPEBRD-L1-R250-00701	Red	1414 (3535 Metric)	SMD	350 mA	92 lm/W	625 nm	630 nm	620 nm	625 nm	2.2 V	Surface Mount	71 lm	74 lm	67 lm	130 °	0.136 in	0.136 in	1 A	25 °C	0.094 in	5 °C/W
CreeLED, Inc. XPEBRD-L1-R250-00902	Red	1414 (3535 Metric)	SMD	350 mA	109 lm/W	623 nm	625 nm	620 nm	623 nm	2.2 V	Surface Mount	84 lm	87 lm	81 lm	130 °	0.136 in	0.136 in	1 A	25 °C	0.094 in	5 °C/W
CreeLED, Inc. XPEBRD-L1-0000-00601	Red	1414 (3535 Metric)	SMD	350 mA	84 lm/W	625 nm	630 nm	620 nm	625 nm	2.2 V	Surface Mount	65 lm	67 lm	62 lm	130 °	0.136 in	0.136 in	1 A	25 °C	0.094 in	5 °C/W
CreeLED, Inc. XPEBRD-L1-0000-00702	Red	1414 (3535 Metric)	SMD	350 mA	92 lm/W	623 nm	625 nm	620 nm	623 nm	2.2 V	Surface Mount	71 lm	74 lm	67 lm	130 °	0.136 in	0.136 in	1 A	25 °C	0.094 in	5 °C/W
CreeLED, Inc. XPEBRD-L1-0000-00A01	Red	1414 (3535 Metric)	1414	350 mA						2.18 V	Surface Mount				130 °	0.136 in	0.136 in	1.5 A	25 °C	0.094 in
CreeLED, Inc. XPEBRD-L1-0000-00A02	Red	1414 (3535 Metric)	1414	350 mA						2.18 V	Surface Mount				130 °	0.136 in	0.136 in	1.5 A	25 °C	0.094 in
CreeLED, Inc. XPEBRD-L1-0000-00902	Red	1414 (3535 Metric)	SMD	350 mA	109 lm/W	623 nm	625 nm	620 nm	623 nm	2.2 V	Surface Mount	84 lm	87 lm	81 lm	130 °	0.136 in	0.136 in	1 A	25 °C	0.094 in
CreeLED, Inc. XPEBRD-L1-0000-00A02	Red	1414 (3535 Metric)	1414	350 mA						2.18 V	Surface Mount				130 °	0.136 in	0.136 in	1.5 A	25 °C	0.094 in
