ADM1062 Series

Super Sequencer®with Margining Control and Temperature Monitoring

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Super Sequencer®with Margining Control and Temperature Monitoring

Part	Supplied Contents	Utilized IC / Part	Contents	Function	Type	Embedded	Secondary Attributes	Primary Attributes	Number of Voltages Monitored	Package / Case	Package Width	Package Name	Package Length	Mounting Type	Voltage - Threshold	Operating Temperature (Min)	Operating Temperature (Max)	Output
Analog Devices Inc./Maxim Integrated EVAL-ADM1062LFEB	Accessories Board(s) Cable(s)	ADM1062	Accessories Board Cable	Power Supply Supervisor Sequencer Tracker	Power Management	No	Graphical User Interface (GUI)	10 Inputs 10 Inputs 10 Outputs (6 can be FET Drivers) 10 Outputs (6 can be FET Drivers)
Analog Devices Inc./Maxim Integrated ADM1062ACP-REEL7					Sequencer				10	40-VFQFN Exposed Pad CSP	6 mm	40-LFCSP-VQ	6 mm	Surface Mount	Adjustable Selectable	-40 °C	85 °C	Programmable
Analog Devices Inc./Maxim Integrated ADM1062ACP					Sequencer				10	40-VFQFN Exposed Pad CSP	6 mm	40-LFCSP-VQ	6 mm	Surface Mount	Adjustable Selectable	-40 °C	85 °C	Programmable
Analog Devices Inc./Maxim Integrated ADM1062ACPZ					Sequencer				10	40-VFQFN Exposed Pad CSP	6 mm	40-LFCSP-VQ	6 mm	Surface Mount	Adjustable Selectable	-40 °C	85 °C	Programmable
Analog Devices Inc./Maxim Integrated ADM1062ASUZ					Sequencer				10	48-TQFP	7 mm	48-TQFP	7 mm	Surface Mount	Adjustable Selectable	-40 °C	85 °C	Programmable
Analog Devices Inc./Maxim Integrated ADM1062ACPZ-REEL7					Sequencer				10	40-VFQFN Exposed Pad CSP	6 mm	40-LFCSP-VQ	6 mm	Surface Mount	Adjustable Selectable	-40 °C	85 °C	Programmable
Analog Devices Inc./Maxim Integrated ADM1062ASUZ-REEL7					Sequencer				10	48-TQFP	7 mm	48-TQFP	7 mm	Surface Mount	Adjustable Selectable	-40 °C	85 °C	Programmable

Catalog

Super Sequencer®with Margining Control and Temperature Monitoring

Description

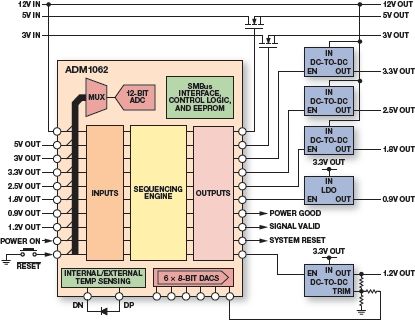

The ADM1062 Super Sequencer®is a configurable supervisory/sequencing device that offers a single-chip solution for supply monitoring and sequencing in multiple-supply systems. In addition to these functions, the ADM1062 integrates a 12-bit ADC and six 8-bit voltage output DACs. These circuits can be used to implement a closed-loop margining system that enables supply adjustment by altering either the feedback node or the reference of a dc-to-dc converter using the DAC outputs.For more information about the ADM1062 register map, refer to theAN-698 Application Note.APPLICATIONSCentral office systemsServers/routersMultivoltage system line cardsDSP/FPGA supply sequencingIn-circuit testing of margined supplies
