M55339 Series

Catalog

CONN ADAPT PLUG-PLUG SMA 50 OHM

Part	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Body Material	Mating Cycles	Center Contact Material	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Adapter Series	Mounting Type	Convert From (Adapter End)	Impedance	Fastening Type	Adapter Type	Frequency - Max	Conversion Type	Style	Center Contact Plating	Center Gender	Convert To (Adapter End)	Features	Mounting Feature	Includes Total Count	Includes	Body Finish

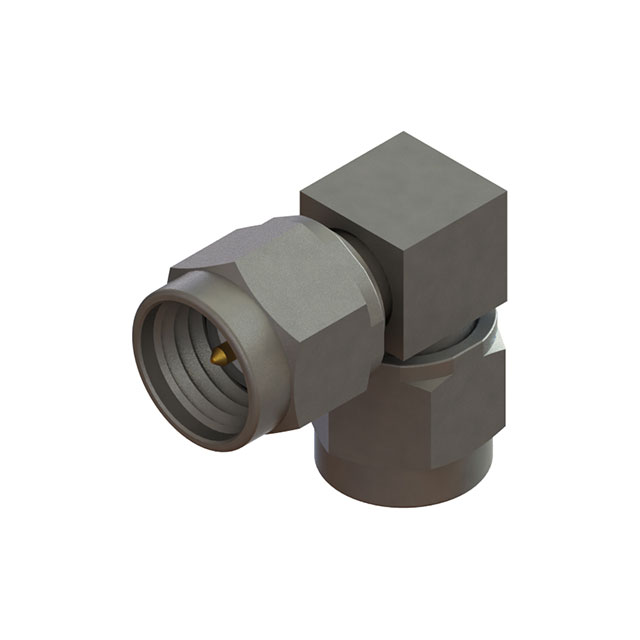

McGill Microwave Systems M55339/53-30001	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Stainless Steel	500 cycles	Beryllium Copper	SMA Plug	Male Pin	SMA to SMA	Free Hanging (In-Line) Right Angle	Male Pin SMA Plug	50 Ohm	Threaded	Plug to Plug	12.4 GHz	Same Series	Right Angle	Gold	Male
McGill Microwave Systems M55339/34-30001	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Stainless Steel	500 cycles	Beryllium Copper			TNC to TNC	Panel Mount	Female Socket TNC Jack	50 Ohm	Threaded	Jack to Jack	11 GHz	Same Series	Straight	Gold	Female	Female Socket TNC Jack	Hermetically Sealed	Bulkhead	3 pcs	Connector Lockwasher Nut

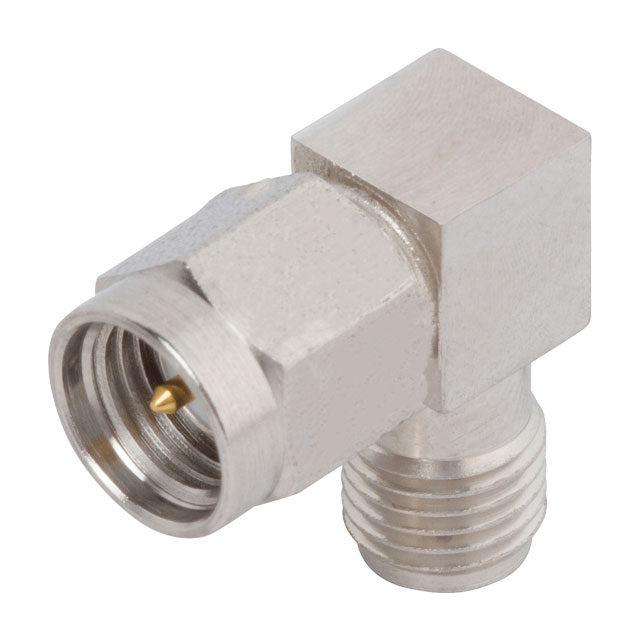

McGill Microwave Systems M55339/02-30001	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Stainless Steel	500 cycles	Beryllium Copper	SMA Jack	Female Socket	SMA to SMA	Free Hanging (In-Line) Right Angle	Male Pin SMA Plug	50 Ohm	Threaded	Plug to Jack	12.4 GHz	Same Series	Right Angle	Gold	Female Male
McGill Microwave Systems M55339/28-30001	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Stainless Steel	500 cycles	Beryllium Copper	SMA Jack	Female Socket	SMA to SMA	Panel Mount	Female Socket SMA Jack	50 Ohm	Threaded	Jack to Jack	12.4 GHz	Same Series	Straight	Gold	Female		Hermetically Sealed	Bulkhead	3 pcs	Connector Lockwasher Nut

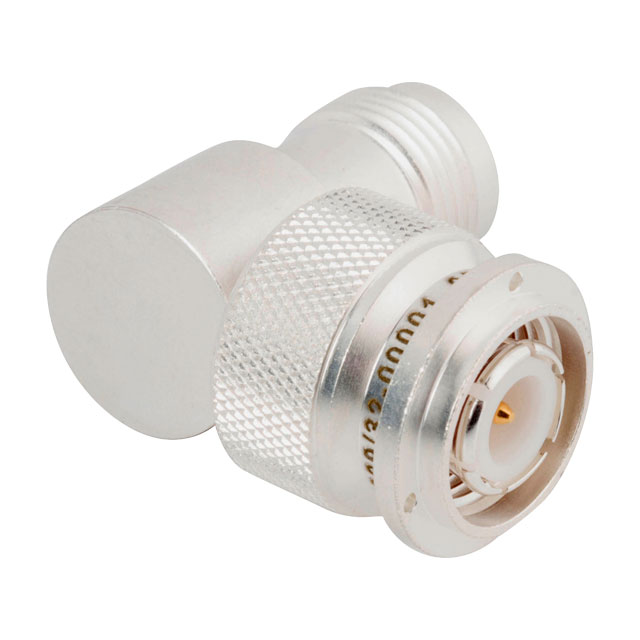

McGill Microwave Systems M55339/32-00001	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Brass	500 cycles	Beryllium Copper	TNC Plug	Male Pin	TNC to TNC	Free Hanging (In-Line) Right Angle	Female Socket TNC Jack	50 Ohm	Threaded	Plug to Jack	11 GHz	Same Series	Right Angle	Gold	Female Male						Silver

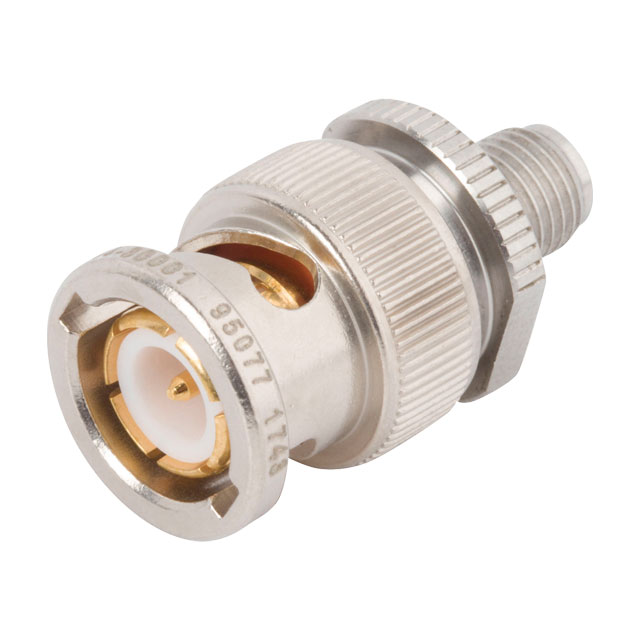

McGill Microwave Systems M55339/44-30001	Polytetrafluoroethylene (PTFE)			Stainless Steel		Beryllium Copper	BNC Plug	Male Pin	BNC to SMA	Free Hanging (In-Line)	Female Socket SMA Jack	50 Ohm	Bayonet Lock Threaded	Plug to Jack	4 GHz	Between Series	Straight	Gold	Female Male
