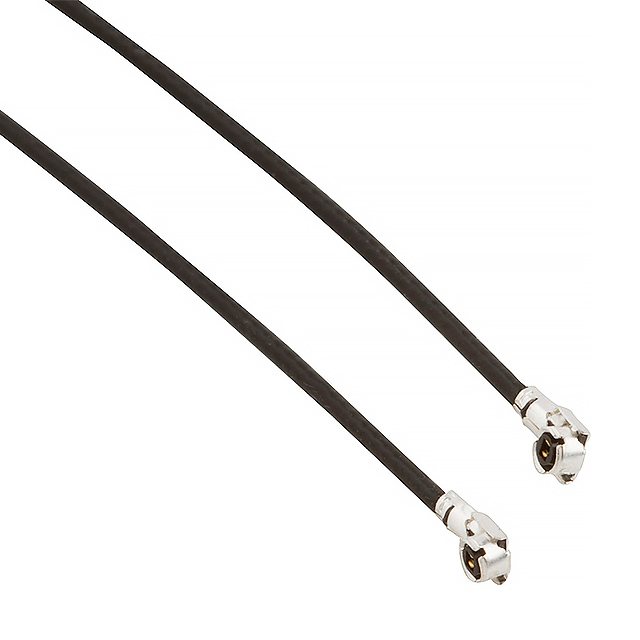

A-2PA-081 Series

Catalog

AMMC RIGHT ANGLE PLUG TO AMMC RIGHT ANGLE PLUG 0.81 MM 50 OHM 150 MM ( 5.9 INCHES)

Part	Features	2nd Contact Gender	Frequency - Max	1st Connector Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	1st Connector	Cable Type Size	Cable Type	Cable Outer Diameter	1st Contact Gender	Length	Color	2nd Connector	Overall Impedance	2nd Connector Mounting Type	Style
McGill Microwave Systems A-2PA-081-150B2	Shielded	Female	6000 MHz	Free Hanging (In-Line)	90 °C	-40 °C	AMMC Plug Right Angle	0.81 mm	0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	0.81 mm	Female	5.906 in	Black	AMMC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	AMMC
McGill Microwave Systems A-2PA-081-300B2	Shielded	Female	6000 MHz	Free Hanging (In-Line)	90 °C	-40 °C	AMMC Plug Right Angle	0.81 mm	0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	0.81 mm	Female	11.811 in	Black	AMMC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	AMMC
McGill Microwave Systems A-2PA-081-200B2	Shielded	Female	6000 MHz	Free Hanging (In-Line)	90 °C	-40 °C	AMMC Plug Right Angle	0.81 mm	0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	0.81 mm	Female	7.874 in	Black	AMMC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	AMMC
McGill Microwave Systems A-2PA-081-250B2	Shielded	Female	6000 MHz	Free Hanging (In-Line)	90 °C	-40 °C	AMMC Plug Right Angle	0.81 mm	0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	0.81 mm	Female	9.843 in	Black	AMMC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	AMMC
McGill Microwave Systems A-2PA-081-500B2	Shielded	Female	6000 MHz	Free Hanging (In-Line)	90 °C	-40 °C	AMMC Plug Right Angle	0.81 mm	0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	0.81 mm	Female	19.69 in	Black	AMMC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	AMMC
McGill Microwave Systems A-2PA-081-050B2	Shielded	Female	6000 MHz	Free Hanging (In-Line)	90 °C	-40 °C	AMMC Plug Right Angle	0.81 mm	0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	0.81 mm	Female	1.969 in	Black	AMMC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	AMMC
McGill Microwave Systems A-2PA-081-01KB2	Shielded	Female	6000 MHz	Free Hanging (In-Line)	90 °C	-40 °C	AMMC Plug Right Angle	0.81 mm	0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	0.81 mm	Female	39.4 in	Black	AMMC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	AMMC
