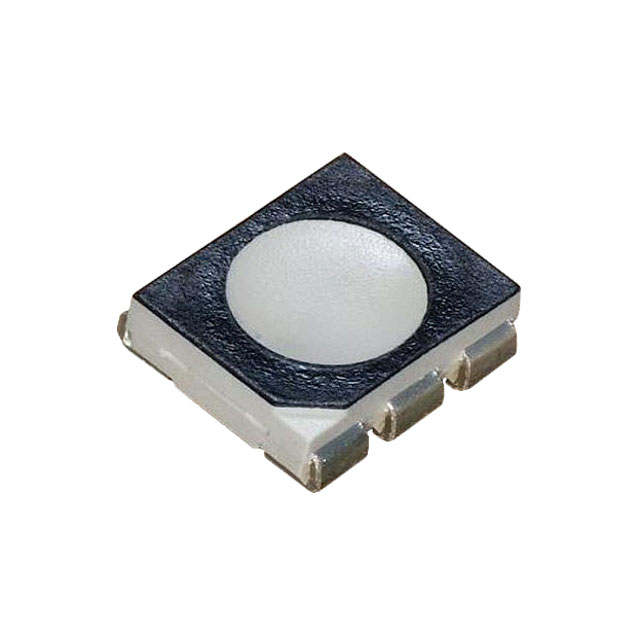

CLP6C Series

Catalog

HIGH BRIGHTNESS LED, CLP6C-RKW SERIES, RED, 624 NM, 120 °, 240 MA

Part	Lens Diameter	Lens Transparency	Mounting Type	Configuration	Size / Dimension Width	Size / Dimension Length	Color	Current - Test	Lens Color	Voltage - Forward (Vf) (Typ)	Height (Max)	Lens Style	Package / Case	Wavelength - Dominant	Package Name	Millicandela Rating	Viewing Angle	Current - Test (Green)	Current - Test Colors	Current - Test (Red)	Current - Test (Blue)	Millicandela Rating Colors	Millicandela Rating (Blue)	Millicandela Rating (Green)	Millicandela Rating (Red)	Wavelength - Dominant Color	Wavelength - Dominant (Green)	Wavelength - Dominant (Red)	Wavelength - Dominant (Blue)	Voltage - Forward (Vf) (Typ) (Blue)	Voltage - Forward (Vf) (Typ) Color	Voltage - Forward (Vf) (Typ) (Green)	Voltage - Forward (Vf) (Typ) (Red)
CreeLED, Inc. CLP6C-RKW-CYBA0AA3	4 mm	Clear	Surface Mount	Standard	5 mm	6 mm	Red	50 mA	Colorless	2.4 V	2.6 mm	Flat Top Round	6-SMD J-Lead	624 nm	6-PLCC	5325 mcd
CreeLED, Inc. CLP6C-FKB-CK1P1G1BB7R3R3	4 mm	Diffused	Surface Mount	Independent	5 mm	6 mm	Blue (RGB) Green Red		White		2.6 mm	Flat Top Round	6-SMD J-Lead		6-PLCC		120 °	20 mA	Blue Green Red	20 mA	20 mA	Blue Green Red	420 mcd	1680 mcd	840 mcd	Blue Green Red	530 nm	621.5 nm	470 nm	3.2 V	Blue Green Red	3.2 V	2 V
CreeLED, Inc. CLP6C-AKW-CZ0B0AA3	4 mm	Clear	Surface Mount	Standard	5 mm	6 mm	Amber	50 mA	Colorless	2.4 V	2.6 mm	Flat Top Round	6-SMD J-Lead	591 nm	6-PLCC	6750 mcd
CreeLED, Inc. CLP6C-FKB-CK1P1G1BB7R3R3	4 mm	Diffused	Surface Mount	Independent	5 mm	6 mm	Blue (RGB) Green Red		White		2.6 mm	Flat Top Round	6-SMD J-Lead		6-PLCC		120 °	20 mA	Blue Green Red	20 mA	20 mA	Blue Green Red	420 mcd	1680 mcd	840 mcd	Blue Green Red	530 nm	621.5 nm	470 nm	3.2 V	Blue Green Red	3.2 V	2 V
