3345 Series

Catalog

CONN RING CIRC 10-12AWG #5/16

Part	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Width - Outer Edges	Stud/Tab Size	Stud/Tab Size (Type)	Stud/Tab Size	Termination	Thickness	Insulation	Mounting Type	Features	Contact Material	Contact Finish	Terminal Type	Length - Overall
TE Connectivity AMP Connectors 33459	12 AWG	10 AWG	0.531 in	0.3125 in	Stud	16 Stud 5 Stud	Crimp	0.039 in	Non-Insulated	Free Hanging (In-Line)	Brazed Seam Serrated Termination	Copper	Tin	Circular	1.004 in
TE Connectivity AMP Connectors 33457	12 AWG	10 AWG	0.375 in	10 Stud			Crimp	0.039 in	Non-Insulated	Free Hanging (In-Line)	Brazed Seam Serrated Termination	Copper	Tin	Circular	0.765 in

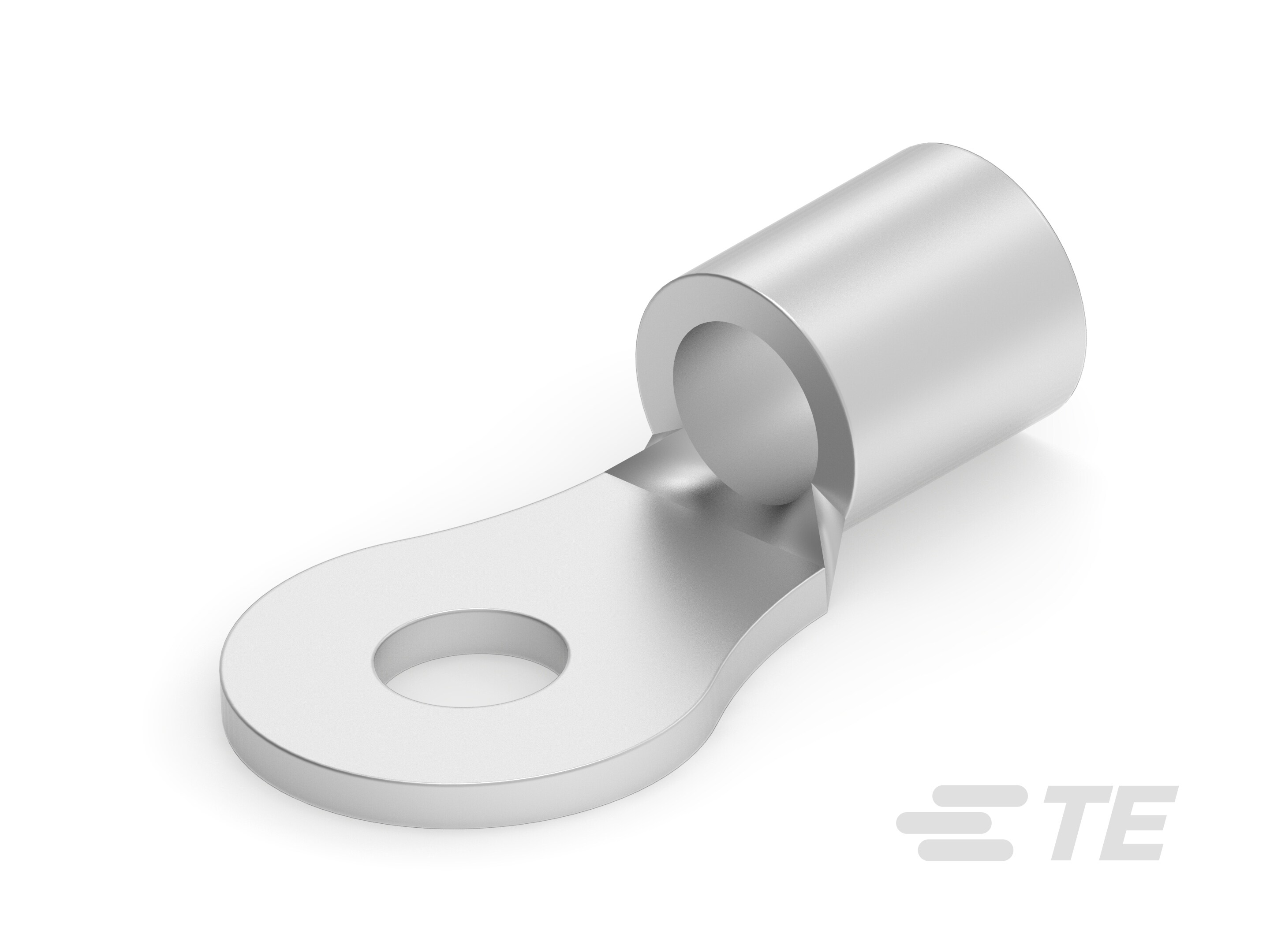

TE Connectivity AMP Connectors 33456	12 AWG	10 AWG	0.375 in	6 Stud			Crimp	0.039 in	Non-Insulated	Free Hanging (In-Line)	Brazed Seam Serrated Termination	Copper	Tin	Circular	0.765 in
