122A100 Series

Catalog

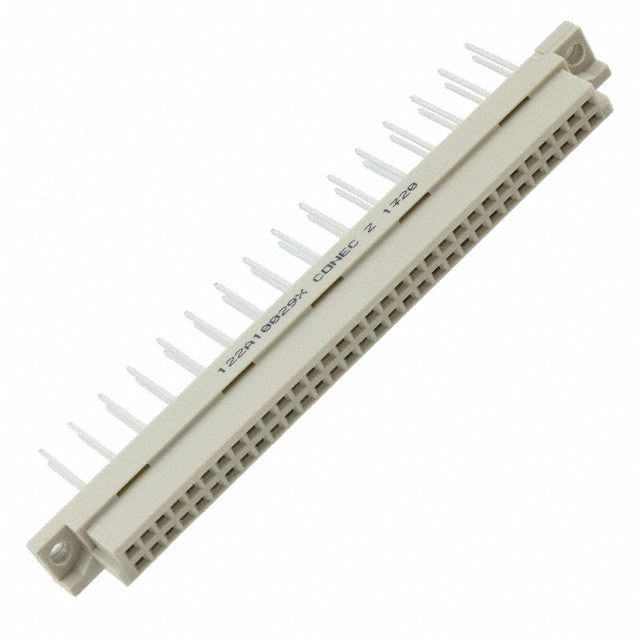

CONN DIN RCPT 64POS PCB GOLD

Part	Current Rating	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Material - Insulation	Contact Finish	Mounting Type	Number of Positions Loaded	Level, Class	Pitch	Number of Positions	Number of Rows	Termination	Connector Type	Style
McGill Microwave Systems 122A10029X	2 A	UL94 V-0	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate	Gold	Through Hole	32	3	0.1 in	64	2	Wire Wrap	Female Sockets Receptacle	B
McGill Microwave Systems 122A10069X	2 A	UL94 V-0	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate	Gold	Through Hole	64	3		64	2	Solder	Female Sockets Receptacle	B
McGill Microwave Systems 122A10059X	2 A	UL94 V-0	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate	Gold	Through Hole	32	3		64	2	Solder	Female Sockets Receptacle	B
McGill Microwave Systems 122A10019X	2 A	UL94 V-0	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate	Gold	Through Hole	32	3	0.1 in	64	2	Wire Wrap	Female Sockets Receptacle	B
McGill Microwave Systems 122A10049X	2 A	UL94 V-0	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate	Gold	Through Hole	32	3		64	2	Solder	Female Sockets Receptacle	B
McGill Microwave Systems 122A10099X	2 A	UL94 V-0	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate	Gold	Through Hole	64	3		64	2	Solder	Female Sockets Receptacle	B
McGill Microwave Systems 122A10079X	2 A	UL94 V-0	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate	Gold	Through Hole	32	3		64	2	Solder	Female Sockets Receptacle	B
McGill Microwave Systems 122A10089X	2 A	UL94 V-0	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate	Gold	Through Hole	32	3		64	2	Solder	Female Sockets Receptacle	B
McGill Microwave Systems 122A10039X	2 A	UL94 V-0	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate	Gold	Through Hole	64	3		64	2	Wire Wrap	Female Sockets Receptacle	B
