RT07104 Series

Catalog

CONN RCPT HSNG MALE 4POS PNL MNT

Part	Fastening Type	Type	Shell Finish	Shell Size - Insert Width	Shell Size - Insert Length	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Note	Material Flammability Rating	Connector Type	Housing Color	Mounting Type	Contact Shape	Mounting Feature	Shell Material	Shielding	Number of Positions	Contact Size	Contact Type	Insert Material	Operating Temperature (Min)	Operating Temperature (Max)	Features	Includes Total Count	Includes	Primary Material	Current Rating	Color	Termination	Voltage Rating	Voltage Rating (Type)	Contact Finish Thickness - Mating	Contact Finish - Mating

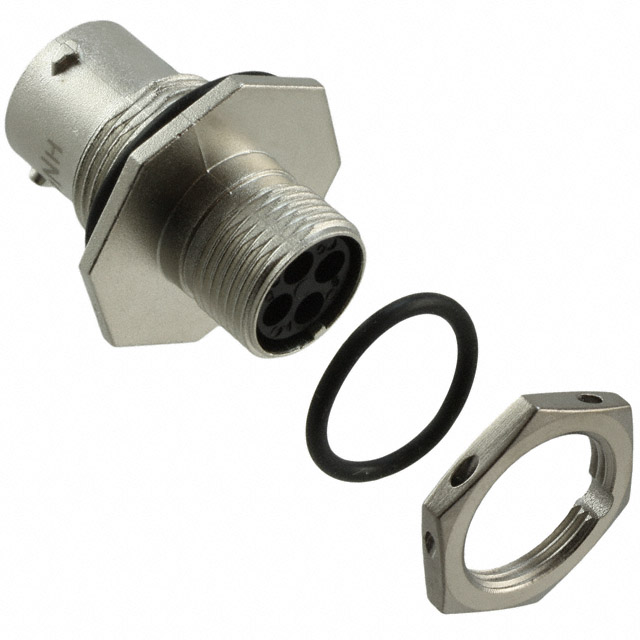

McGill Microwave Systems RT07104PNH	Bayonet Lock	For Male Pins	Nickel	4 mm	10 mm	N (Normal)	Dust Tight Waterproof	IP67	Contacts Not Included	UL94 V-0	Receptacle Housing	Silver	Panel Mount	Circular	Bulkhead Front Side Nut	Zinc Alloy	Shielded	4	16 S	Crimp	Thermoplastic	-40 °C	105 °C
McGill Microwave Systems RT07104SNHEC	Bayonet Lock	For Female Sockets	Nickel	4 mm	10 mm	N (Normal)	Dust Tight Waterproof	IP67	Contacts Not Included	UL94 V-0	Receptacle Housing	Silver	Panel Mount	Circular	Bulkhead Front Side Nut	Zinc Alloy	Shielded	4	16 S	Crimp	Thermoplastic	-40 °C	105 °C	Backshell	3 pcs	Connector Nut O-Ring

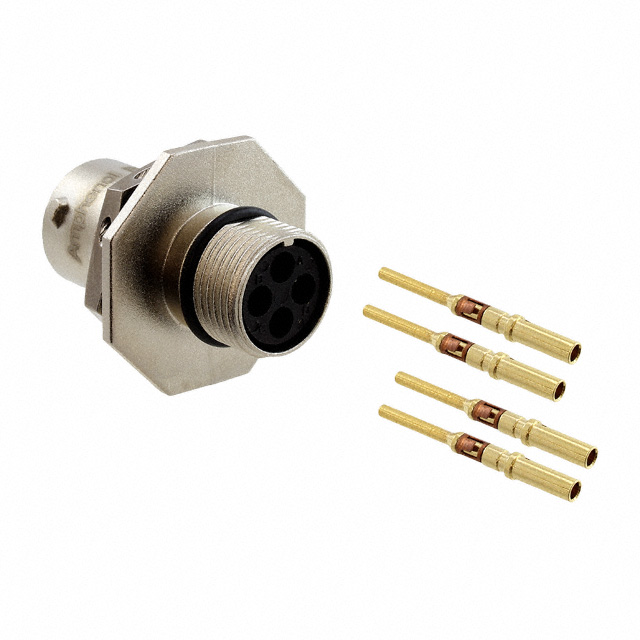

McGill Microwave Systems RT07104PNH-K	Bayonet Lock		Nickel	4 mm	10 mm	N (Normal)	Dust Tight Waterproof	IP67			Male Pins Receptacle		Panel Mount		Bulkhead Front Side Nut	Zinc Die Cast		4				-40 °C	105 °C				Metal	13 A	Silver	Crimp	250 V	DC	Flash	Gold
McGill Microwave Systems RT07104PNHEC03	Bayonet Lock	For Male Pins	Nickel	4 mm	10 mm	N (Normal)	Dust Tight Waterproof	IP67	Contacts Not Included	UL94 V-0	Receptacle Housing	Silver	Panel Mount	Circular	Bulkhead Front Side Nut	Zinc Alloy	Shielded	4	16 S	Crimp	Thermoplastic	-40 °C	125 °C	Cap (Cover)			Metal
