CSM-L10G Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
SENSOR 0.36PSIG .0165V 8CSMD
| Part | Package Name | Applications | Package / Case | Termination Style | Maximum Pressure | Operating Temperature (Max) | Operating Temperature (Min) | Operating Pressure | Mounting Type | Features | Output Type | Voltage - Supply | Output Voltage (Max) | Output Voltage (Min) | Port Style | Pressure Type | Accuracy | Port Feature | Port Gender | Port Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

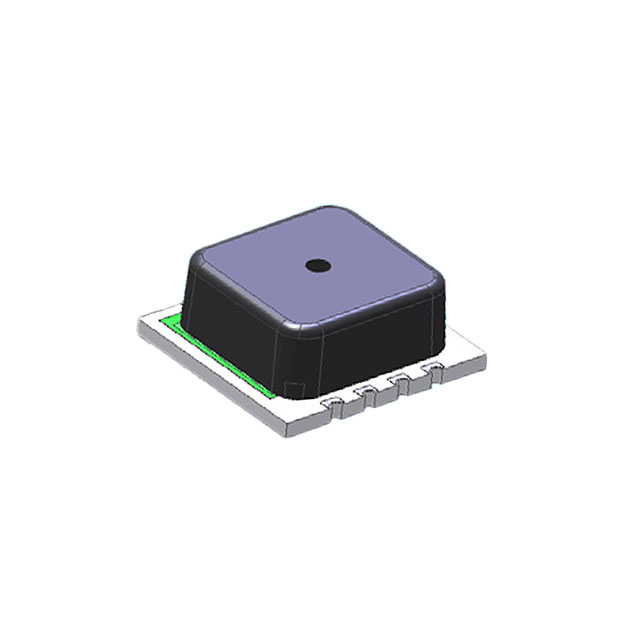

 McGill Microwave Systems | 8-CSMD | Board Mount | 8-CSMD No Lead | SMD (SMT) Tab | 3 PSI | 85 °C | -25 °C | 0.36 PSI | Surface Mount | Temperature Compensated | Wheatstone Bridge | 6 V | 16.5 mV | 0 V | No Port | Vented Gauge | 0.5 % RH | |||

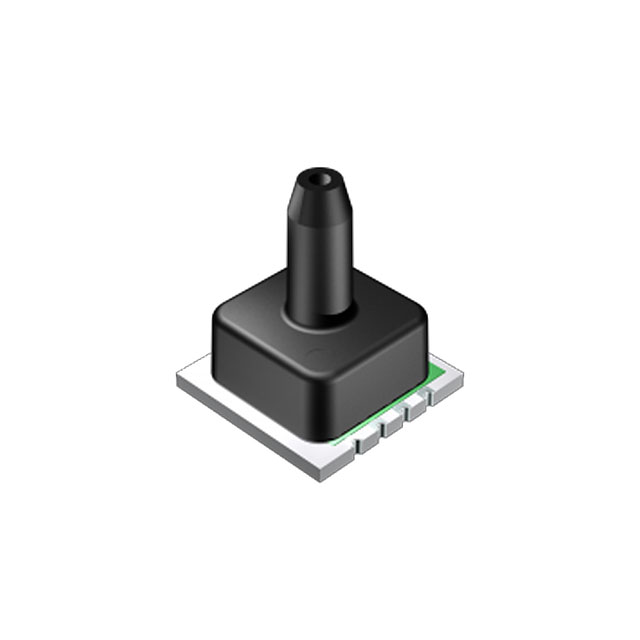

 McGill Microwave Systems | 8-CSMD | Board Mount | 8-CSMD No Lead Top Port | SMD (SMT) Tab | 3 PSI | 85 °C | -25 °C | 0.36 PSI | Surface Mount | Temperature Compensated | Wheatstone Bridge | 6 V | 16.5 mV | 0 V | Barbless | Vented Gauge | 0.5 % RH | Tube | Male | 0.09 in |
