YAA Series

Catalog

M SERIES SENSOR CONNECTOR, Y ADAPTOR, METAL, A CODING, 4A, 05 PINS, (END 1) MALE MALE, (END 2) MALE MALE, (END 3) FEMALE FEMALE,

Part	Orientation (Convert From)	Orientation (Convert To)	Shell Size - Insert (Convert To)	Features	Number of Positions (Convert From)	Housing Material	Connector Style	Shielding	Number of Positions (Convert To) Secondary	Number of Positions (Convert To)	Convert To (Adapter End) Count	Convert To (Adapter End)	Convert From (Adapter End)	Ingress Protection IP Rating	Ingress Protection Description	Shell Size - Insert (Convert From)	Mounting Type	Fastening Type	Primary Material	Housing Color	Current Rating	Voltage Rating	Operating Temperature (Max)	Operating Temperature (Min)
McGill Microwave Systems YA-A05M-A05M-A05F-01	A	A	M12	Coupling Nut	5	Thermoplastic	Distributor Y-Shaped	Unshielded	2	5	1 units	Female Sockets Male Pins	Male Pins	IP68	Dust Tight Waterproof	M12	Free Hanging (In-Line)	Threaded

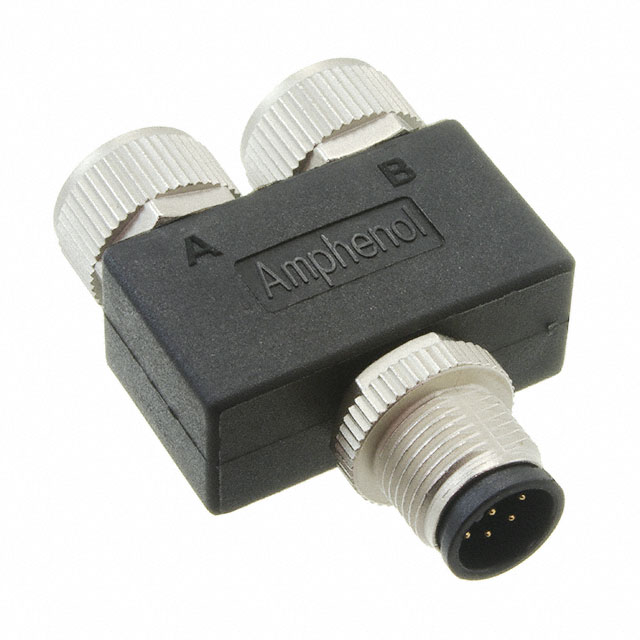

McGill Microwave Systems YA-A08M-A08F-A08F-01	A	A	M12	Coupling Nut	8	Thermoplastic	Distributor Y-Shaped	Unshielded	2	8	2 count	Female Sockets	Male Pins	IP68	Dust Tight Waterproof	M12	Free Hanging (In-Line)	Threaded

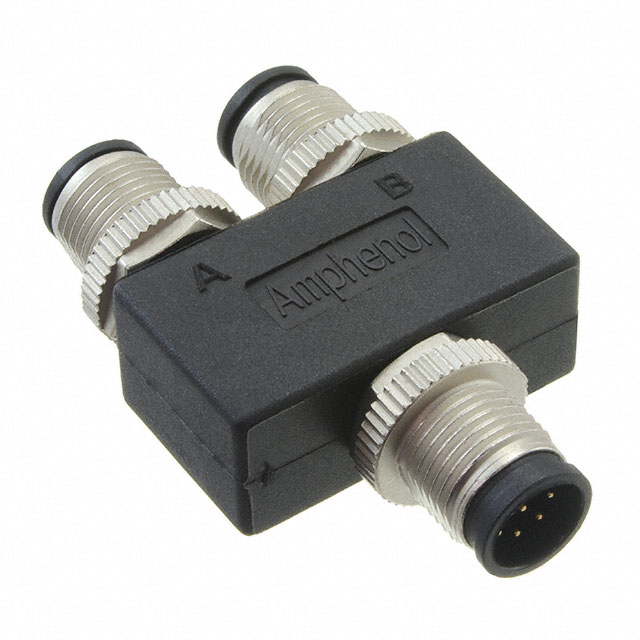

McGill Microwave Systems YA-A08M-A08M-A08M-01	A	A	M12		8	Thermoplastic	Distributor Y-Shaped	Unshielded	2	8	2 count	Male Pins	Male Pins	IP68	Dust Tight Waterproof	M12	Free Hanging (In-Line)	Threaded
McGill Microwave Systems YA-A12M-A12M-A12F-01	A	A	M12	Coupling Nut	12	Thermoplastic	Distributor Y-Shaped	Unshielded	2	12	1 units	Female Sockets Male Pins	Male Pins	IP68	Dust Tight Waterproof	M12	Free Hanging (In-Line)	Threaded

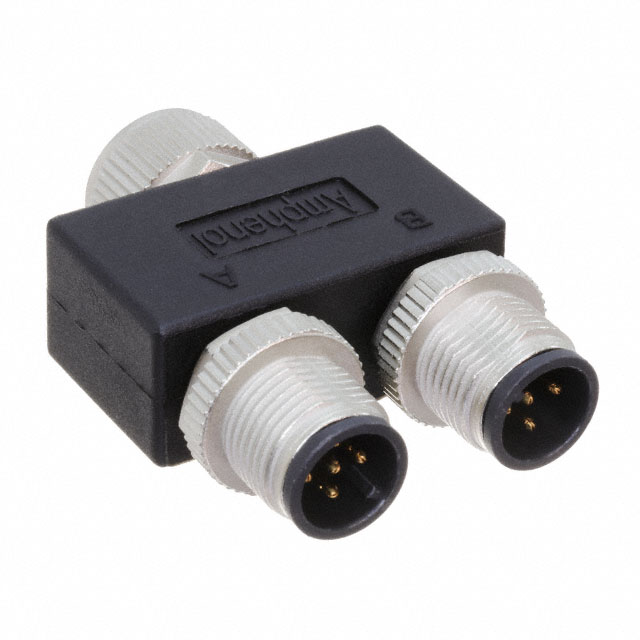

McGill Microwave Systems YA-A05F-A05M-A05M-01	A	A	M12	Coupling Nut	5	Thermoplastic	Distributor Y-Shaped	Unshielded	2	5	2 count	Male Pins	Female Sockets	IP68	Dust Tight Waterproof	M12	Free Hanging (In-Line)	Threaded

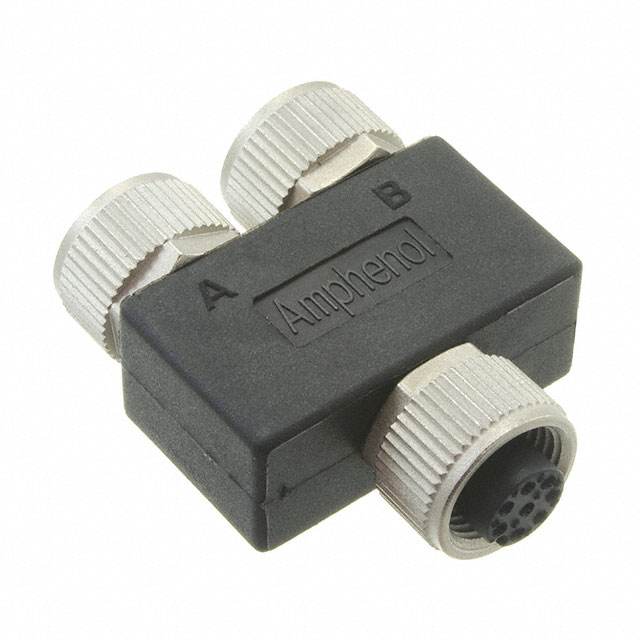

McGill Microwave Systems YA-A08F-A08F-A08F-01	A	A	M12	Coupling Nut	8	Thermoplastic	Distributor Y-Shaped	Unshielded	2	8	2 count	Female Sockets	Female Sockets	IP68	Dust Tight Waterproof	M12	Free Hanging (In-Line)	Threaded

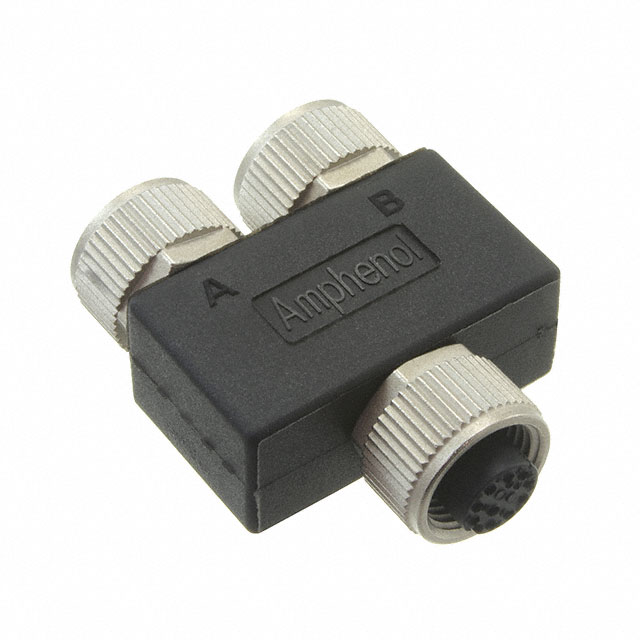

McGill Microwave Systems YA-A10F-A10F-A10F-01	A	A	M12	Coupling Nut	10	Thermoplastic	Distributor Y-Shaped	Unshielded	2	10	2 count	Female Sockets	Female Sockets	IP68	Dust Tight Waterproof	M12	Free Hanging (In-Line)	Threaded
McGill Microwave Systems YA-A03M-A03F-A03F-01	A	A	M12	Coupling Nut	3	Thermoplastic	Distributor Y-Shaped	Unshielded	2	3	2 count	Female Sockets	Male Pins	IP68	Dust Tight Waterproof	M12	Free Hanging (In-Line)	Threaded
McGill Microwave Systems YA-A04M-A04F-A04F-01	A	A	M12		4	Thermoplastic	Distributor Y-Shaped	Unshielded	2	4	2 count	Female Sockets	Male Pins	IP68	Dust Tight Waterproof	M12	Free Hanging (In-Line)	Threaded	Plastic	Black	4 A	250 V	85 °C	-20 °C

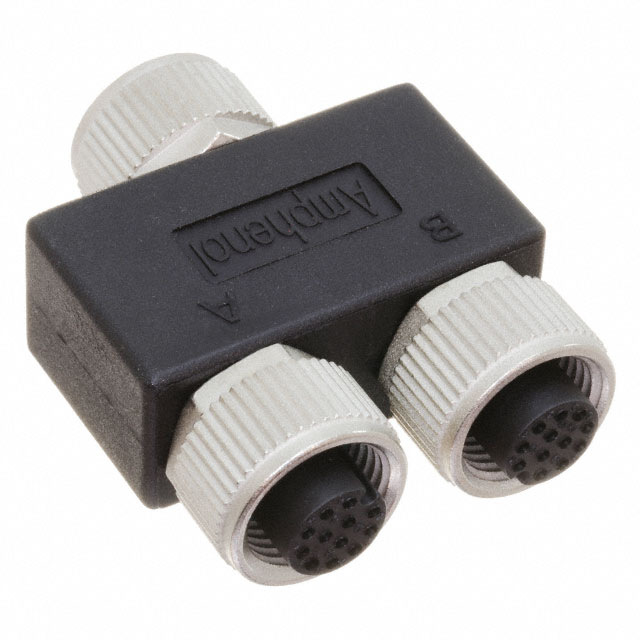

McGill Microwave Systems YA-A12F-A12F-A12F-01	A	A	M12	Coupling Nut	12	Thermoplastic	Distributor Y-Shaped	Unshielded	2	12	2 count	Female Sockets	Female Sockets	IP68	Dust Tight Waterproof	M12	Free Hanging (In-Line)	Threaded
