Q-0304T0 Series

Catalog

CBL ASSY BNC-TNC JACK-PLG 29.53"

Part	1st Connector	1st Connector Mounting Type	Overall Impedance	2nd Contact Gender	Color	Length	2nd Connector Mounting Type	Frequency - Max	Cable Type	1st Contact Gender	2nd Connector	Style	Features	Length (ft)

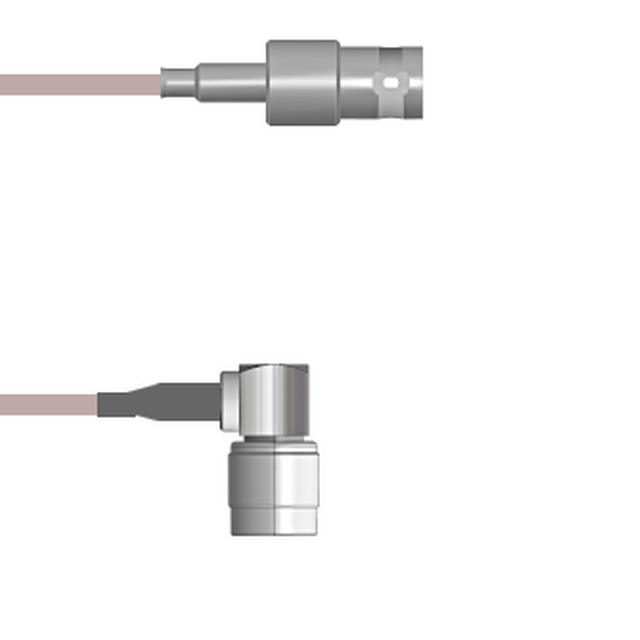

McGill Microwave Systems Q-0304T0005.75M	BNC Jack	Free Hanging (In-Line)	50 Ohms	Male	Copper	29.53 in	Free Hanging (In-Line)	4 GHz	316 RG	Female	Right Angle TNC Plug	BNC TNC	Shielded

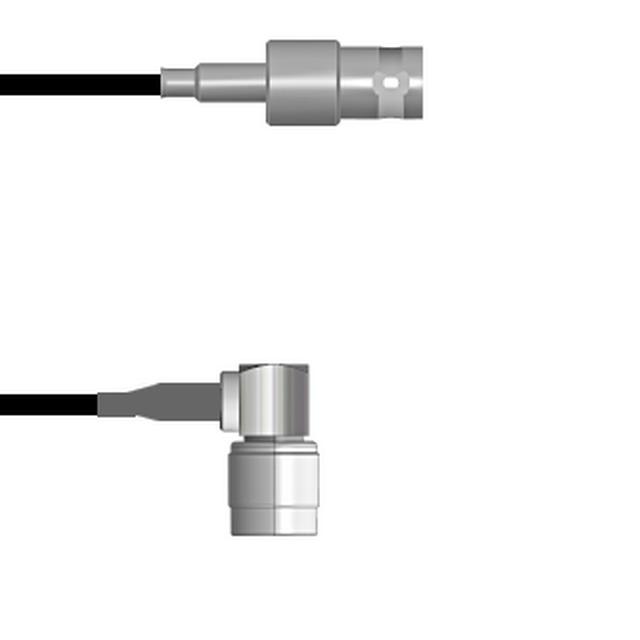

McGill Microwave Systems Q-0304T0003084i	BNC Jack	Free Hanging (In-Line)	50 Ohms	Male	Black	84 in	Free Hanging (In-Line)	4 GHz	174 RG	Female	Right Angle TNC Plug	BNC TNC	Shielded	7 ft
McGill Microwave Systems Q-0304T0005001M	BNC Jack	Free Hanging (In-Line)	50 Ohms	Male	Copper	39.4 in	Free Hanging (In-Line)	4 GHz	316 RG	Female	Right Angle TNC Plug	BNC TNC	Shielded
McGill Microwave Systems Q-0304T0003001M	BNC Jack	Free Hanging (In-Line)	50 Ohms	Male	Black	39.4 in	Free Hanging (In-Line)	4 GHz	174 RG	Female	Right Angle TNC Plug	BNC TNC	Shielded
McGill Microwave Systems Q-0304T0003048i	BNC Jack	Free Hanging (In-Line)	50 Ohms	Male	Black	48 in	Free Hanging (In-Line)	4 GHz	174 RG	Female	Right Angle TNC Plug	BNC TNC	Shielded
McGill Microwave Systems Q-0304T0005072i	BNC Jack	Free Hanging (In-Line)	50 Ohms	Male	Copper	72 in	Free Hanging (In-Line)	4 GHz	316 RG	Female	Right Angle TNC Plug	BNC TNC	Shielded
McGill Microwave Systems Q-0304T0005036i	BNC Jack	Free Hanging (In-Line)	50 Ohms	Male	Copper	36 in	Free Hanging (In-Line)	4 GHz	316 RG	Female	Right Angle TNC Plug	BNC TNC	Shielded
McGill Microwave Systems Q-0304T0005003i	BNC Jack	Free Hanging (In-Line)	50 Ohms	Male	Copper	3 "	Free Hanging (In-Line)	4 GHz	316 RG	Female	Right Angle TNC Plug	BNC TNC	Shielded
McGill Microwave Systems Q-0304T0003003i	BNC Jack	Free Hanging (In-Line)	50 Ohms	Male	Black	3 "	Free Hanging (In-Line)	4 GHz	174 RG	Female	Right Angle TNC Plug	BNC TNC	Shielded
McGill Microwave Systems Q-0304T0005009i	BNC Jack	Free Hanging (In-Line)	50 Ohms	Male	Copper	228.6 mm	Free Hanging (In-Line)	4 GHz	316 RG	Female	Right Angle TNC Plug	BNC TNC	Shielded
