IRF9Z14 Series

Catalog

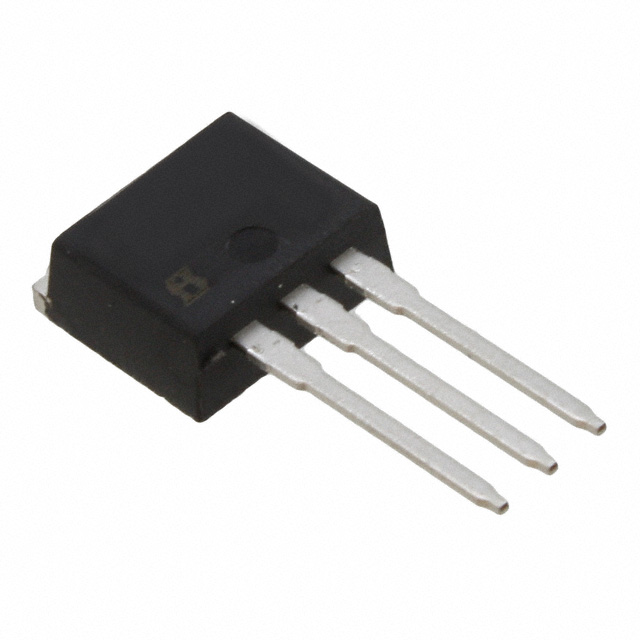

MOSFET P-CH 60V 6.7A I2PAK

Part	Vgs(th) (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Power Dissipation (Max)	Technology	Mounting Type	Rds On (Max)	Package / Case	Drive Voltage (Max Rds On, Min Rds On)	Gate Charge (Max)	Package Name	Current - Continuous Drain (Id) (Tc)	Drain to Source Voltage (Vdss)	FET Type	Vgs (Max)	Input Capacitance (Ciss) (Max)
Vishay Dale IRF9Z14LPBF	4 V	-55 °C	175 °C	3.7 W 43 W	MOSFET (Metal Oxide)	Through Hole	500 mOhm	I2PAK TO-262-3 Long Leads TO-262AA	10 V	12 nC	I2PAK	6.7 A	60 V	P-Channel	20 V	270 pF
Vishay Dale IRF9Z14SPBF	4 V	-55 °C	175 °C	3.7 W 43 W	MOSFET (Metal Oxide)	Surface Mount	500 mOhm	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	10 V	12 nC	TO-263 (D2PAK)	6.7 A	60 V	P-Channel	20 V	270 pF
Vishay Dale IRF9Z14PBF	4 V	-55 °C	175 °C	43 W	MOSFET (Metal Oxide)	Through Hole	500 mOhm	TO-220-3	10 V	12 nC	TO-220AB	6.7 A	60 V	P-Channel	20 V	270 pF
