Q-0D0110 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

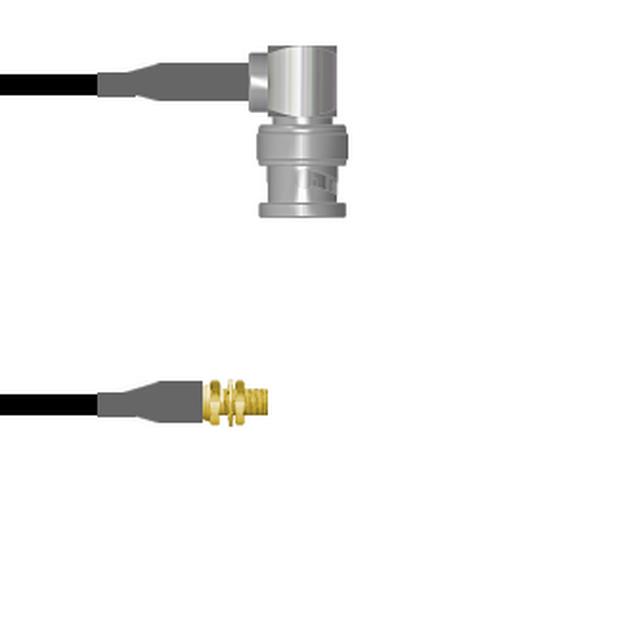

CBL ASSY BNC-MCX PLUG-JACK 36"
| Part | Cable Type | Color | 1st Connector Mounting Type | 2nd Contact Gender | 2nd Connector Mounting Type | Frequency - Max | Features | Length | 1st Contact Gender | 2nd Connector | 2nd Connector Mounting Feature | Style | 1st Connector | Overall Impedance | Length (ft) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 174 RG | Black | Free Hanging (In-Line) | Female | Panel Mount | 4 GHz | Shielded | 36 in | Male | MCX Jack | Bulkhead - Front Side Nut | BNC MCX | BNC Plug Right Angle | 50 Ohms | |
McGill Microwave Systems | 174 RG | Black | Free Hanging (In-Line) | Female | Panel Mount | 4 GHz | Shielded | 3 " | Male | MCX Jack | Bulkhead - Front Side Nut | BNC MCX | BNC Plug Right Angle | 50 Ohms | |
 McGill Microwave Systems | 316 RG | Copper | Free Hanging (In-Line) | Female | Panel Mount | 4 GHz | Shielded | 72 in | Male | MCX Jack | Bulkhead - Front Side Nut | BNC MCX | BNC Plug Right Angle | 50 Ohms | |
McGill Microwave Systems | 316 RG | Copper | Free Hanging (In-Line) | Female | Panel Mount | 4 GHz | Shielded | 228.6 mm | Male | MCX Jack | Bulkhead - Front Side Nut | BNC MCX | BNC Plug Right Angle | 50 Ohms | |
McGill Microwave Systems | 174 RG | Black | Free Hanging (In-Line) | Female | Panel Mount | 4 GHz | Shielded | 98.4 in | Male | MCX Jack | Bulkhead - Front Side Nut | BNC MCX | BNC Plug Right Angle | 50 Ohms | 8.2 ft |
McGill Microwave Systems | 174 RG | Black | Free Hanging (In-Line) | Female | Panel Mount | 4 GHz | Shielded | 72 in | Male | MCX Jack | Bulkhead - Front Side Nut | BNC MCX | BNC Plug Right Angle | 50 Ohms | |
McGill Microwave Systems | 174 RG | Black | Free Hanging (In-Line) | Female | Panel Mount | 4 GHz | Shielded | 84 in | Male | MCX Jack | Bulkhead - Front Side Nut | BNC MCX | BNC Plug Right Angle | 50 Ohms | 7 ft |
McGill Microwave Systems | 316 RG | Copper | Free Hanging (In-Line) | Female | Panel Mount | 4 GHz | Shielded | 36 in | Male | MCX Jack | Bulkhead - Front Side Nut | BNC MCX | BNC Plug Right Angle | 50 Ohms | |
McGill Microwave Systems | 174 RG | Black | Free Hanging (In-Line) | Female | Panel Mount | 4 GHz | Shielded | 59.1 in | Male | MCX Jack | Bulkhead - Front Side Nut | BNC MCX | BNC Plug Right Angle | 50 Ohms | 4.9 ft |
McGill Microwave Systems | 174 RG | Black | Free Hanging (In-Line) | Female | Panel Mount | 4 GHz | Shielded | 29.53 in | Male | MCX Jack | Bulkhead - Front Side Nut | BNC MCX | BNC Plug Right Angle | 50 Ohms |
