2.92mm Series

Catalog

ATTENUATORS - INTERCONNECTS 2.92MM F TO M ATTEN 32 GHZ (SCREENED)

Part	Power (Watts)	Impedance	Attenuation Value	Frequency Range (Max)	Frequency Range (Min)	Package / Case	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Plating	Body Material	Mating Cycles	Housing Color	Frequency - Max	Connector Plug Diameter	Mounting Feature	Mounting Type	Fastening Type	Shield Termination	Contact Termination	Center Contact Material	Connector Type	Number of Ports	Features	Convert To (Adapter End) Precision	Convert To (Adapter End) Type	Convert To (Adapter End) Model	Convert To (Adapter End)	Convert To (Adapter End) Size	Adapter Series	Adapter Series Size	Style	Convert From (Adapter End)	Conversion Type	Center Gender	Adapter Type	Convert To (Adapter End) Gender	Includes Total Count	Includes	Cable Group Size	Cable Group
McGill Microwave Systems M3933/30-34S	2 w	50 Ohm	25 dB	32 GHz	0 Hz	SMA In-Line Module
McGill Microwave Systems SF1521-60061		50 Ohm					Polyetherimide (PEI)	-65 °C	165 °C	Gold	Stainless Steel	500 cycles	Silver	40 Gbps	2.92 mm	Flange	Surface Mount	Threaded	Screw	Compression	Beryllium Copper	Female Socket Jack	1

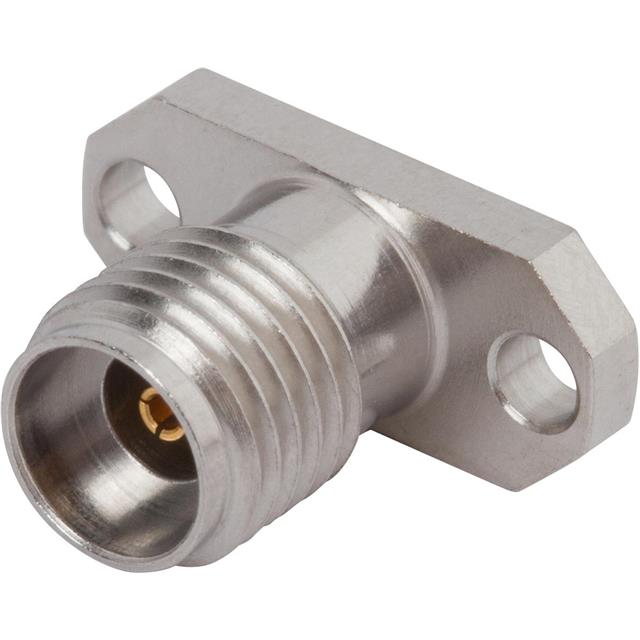

McGill Microwave Systems SF1552-6002		50 Ohm					Polyetherimide (PEI)			Gold	Stainless Steel	500 cycles	Silver	40 Gbps	2.92 mm	Flange	Panel Mount	Threaded	Screw	Compression	Beryllium Copper	Female Socket Jack	1	Field Replaceable For Hermetically Sealed Pin
McGill Microwave Systems SF1115-6085		50 Ohm								Gold				40 Gbps			Free Hanging (In-Line)	Snap-On Threaded							2.92 mm	Male Pin Plug	OS-2.9	(OS-2.9) Plug Male Pin Plug	2.92 mm	SMPM	2.92 mm	Straight	Female Socket SMPM Jack	Between Series	Female Male	Plug to Jack
McGill Microwave Systems SF1115-6084		50 Ohm					Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	Stainless Steel	500 cycles		40 Gbps			Free Hanging (In-Line)	Snap-On Threaded			Beryllium Copper			Full Detent		Jack	OS-2.9	Female Socket Jack	2.92 mm	SMPM	2.92 mm	Straight	Male Pin SMPM Plug	Between Series	Female Male	Plug to Jack	Female Socket
McGill Microwave Systems SF1115-6011		50 Ohm								Gold				26.5 GHz			Free Hanging (In-Line)	Threaded							2.92 mm	Male Pin Plug	OS-2.9	(OS-2.9) Plug Male Pin Plug	2.92 mm	SMA	2.92 mm	Straight	Male Pin SMA Plug	Between Series	Male	Plug to Plug
McGill Microwave Systems SF1521-60045		50 Ohm					Polyetherimide (PEI)			Gold	Stainless Steel	500 cycles	Silver	40 Gbps	2.92 mm	Bulkhead Front Side Nut	Panel Mount	Threaded	Solder	Solder	Beryllium Copper	Female Socket Jack	1															3 pcs	Connector Lockwasher Nut	0.047 "	Flexible
McGill Microwave Systems M3933/30-19S	2 w	50 Ohm	9 dB	32 GHz	0 Hz	SMA In-Line Module
