TV06UCO Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
CONN PLUG MALE 8POS SOLDER CUP
| Part | Features | Orientation | Termination | Shell Material | Shell Finish | Shell Size - Insert | Shell Size - Insert | Mounting Type | Applications | Primary Material | Shielding | Color | Operating Temperature (Max) | Operating Temperature (Min) | Connector Type | Number of Positions | Position Types | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

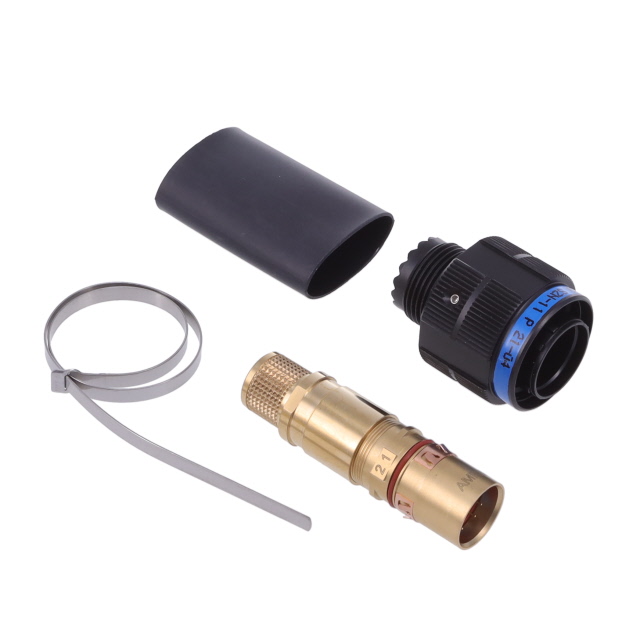

 McGill Microwave Systems | Coupling Nut Heat Shrink | N (Normal) | Solder Cup | Aluminum | Black Zinc Nickel | 11 | 11 | Free Hanging (In-Line) | Aerospace Military | Metal | Unshielded | Black | 125 °C | -55 °C | Male Pins Plug | 8 | Data | Threaded |

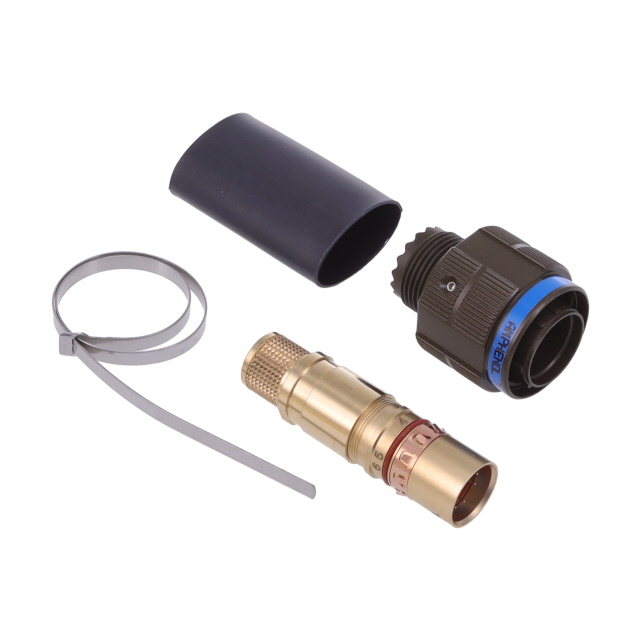

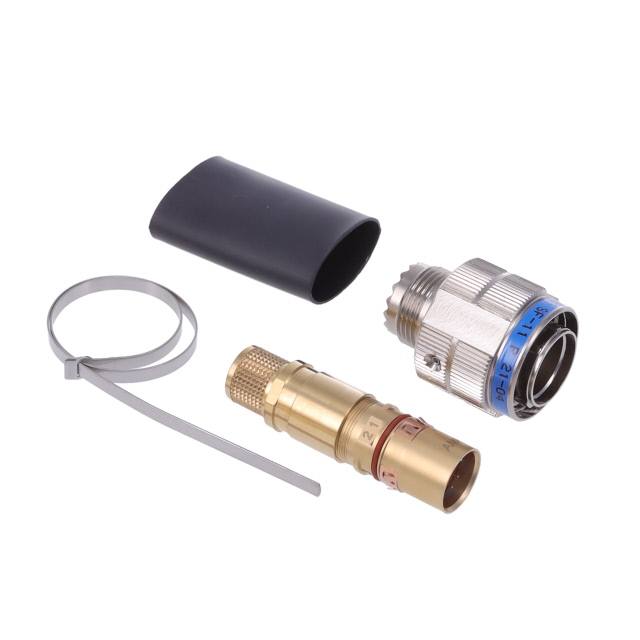

 McGill Microwave Systems | Coupling Nut Heat Shrink | N (Normal) | Solder Cup | Aluminum | Nickel | 11 | 11 | Free Hanging (In-Line) | Aerospace Military | Metal | Unshielded | Silver | 125 °C | -55 °C | Male Pins Plug | 8 | Data | Threaded |

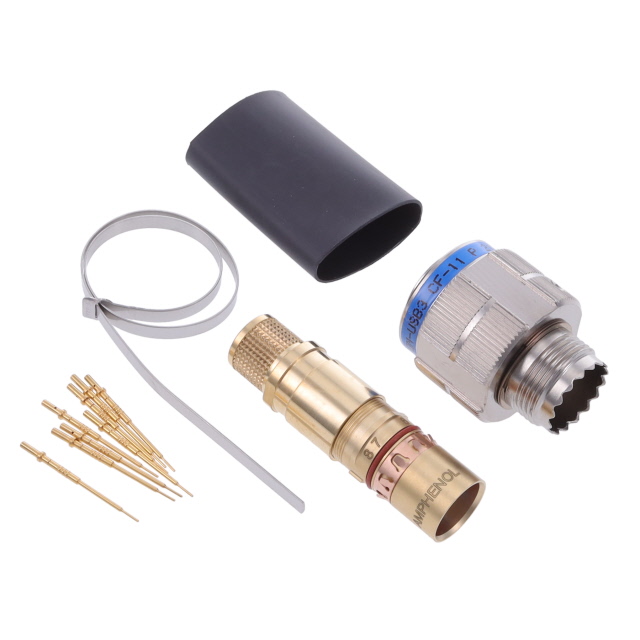

 McGill Microwave Systems | Coupling Nut Heat Shrink | N (Normal) | Crimp | Aluminum | Nickel | 11 | 11 | Free Hanging (In-Line) | Aerospace Military | Metal | Unshielded | Silver | 125 °C | -55 °C | Male Pins Plug | 8 | Data | Threaded |

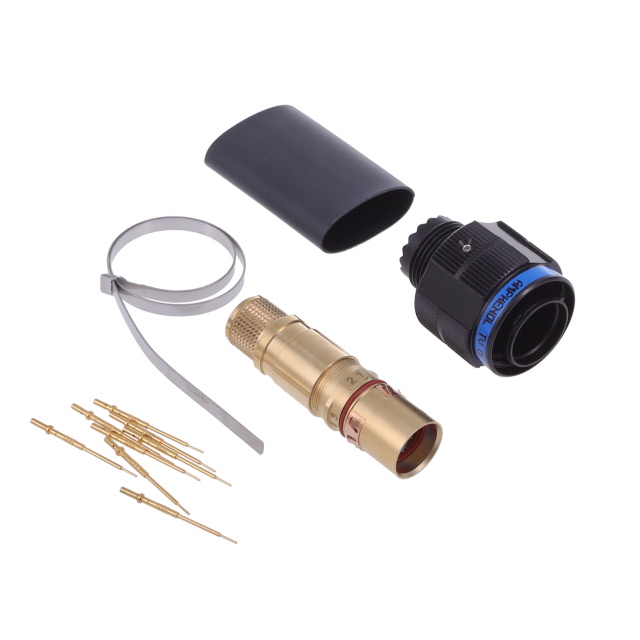

 McGill Microwave Systems | Coupling Nut Heat Shrink | N (Normal) | Crimp | Aluminum | Black Zinc Nickel | 11 | 11 | Free Hanging (In-Line) | Aerospace Military | Metal | Unshielded | Black | 125 °C | -55 °C | Male Pins Plug | 8 | Data | Threaded |
 McGill Microwave Systems | Coupling Nut Heat Shrink | N (Normal) | Solder Cup | Aluminum | Olive Drab Cadmium | 11 | 11 | Free Hanging (In-Line) | Aerospace Military | Metal | Unshielded | Olive Drab | 125 °C | -55 °C | Male Pins Plug | 8 | Data | Threaded |
