NJ2-PD Series
Manufacturer: Pepperl+Fuchs, Inc.
Beta
⌘K

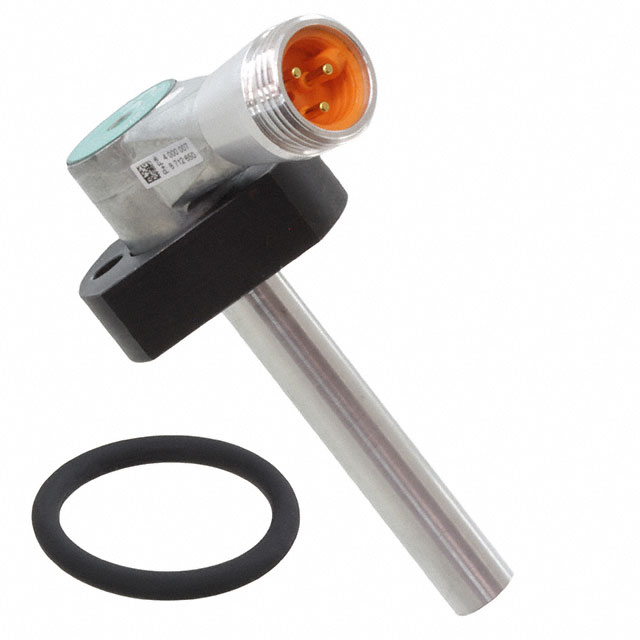

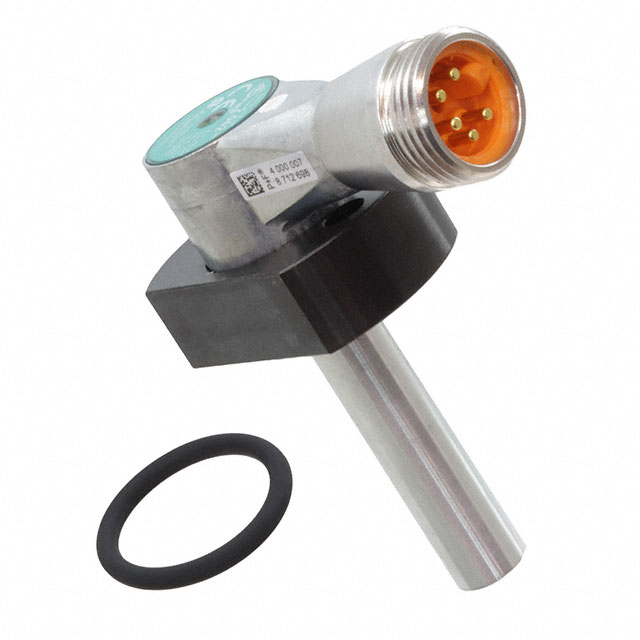

INDUCTIVE PROXIMITY SENSOR, COMFORT SERIES, 2 MM, CYLINDRICAL, SPST-NO, 20 V TO 250 V
| Part | Package / Case | Material - Body | Sensing Distance | Shielding | Ingress Protection | Output Type | Sensor Type | Indicator | Termination Style | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Supply (Range 2 Maximum) | Voltage - Supply (Range 1 Minimum) | Voltage - Supply (Range 1 Maximum) | Voltage - Supply (Range 2 Minimum) | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pepperl+Fuchs, Inc. | Module | Zinc Die-Cast | 0.079 " | Unshielded | IP67 | 2-Wire NO SCR-NC | Inductive | LED | Connector | 70 °C | -25 °C | 300 VDC | 20 VAC | 250 VAC | 20 VDC | ||
 Pepperl+Fuchs, Inc. | Module | Zinc Die-Cast | 0.079 " | Unshielded | IP67 | 3-Wire NPN PNP-NO | Inductive | LED | Connector | 70 °C | -25 °C | 10 VDC | 30 VDC | ||||
 Pepperl+Fuchs, Inc. | Module | Zinc Die-Cast | 0.079 " | Unshielded | IP67 | 2-Wire NO SCR-NC | Inductive | LED | Connector | 70 °C | -25 °C | 300 VDC | 20 VAC | 250 VAC | 20 VDC |
