PLCC-032 Series
Manufacturer: Samtec Inc.
Beta
⌘K

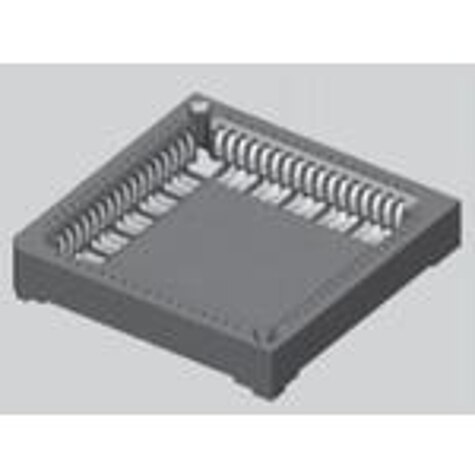

CONN SOCKET PLCC 32POS TIN
| Part | Material Flammability Rating | Contact Resistance | Contact Finish - Post | Contact Material - Post | Type | Pitch - Post | Operating Temperature (Max) | Operating Temperature (Min) | Contact Material - Mating | Pitch - Mating | Termination | Features | Mounting Type | Contact Finish - Mating | Grid Layout Options | Number of Positions or Pins (Grid) | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Samtec Inc. | UL94 V-0 | 10 mOhm | Tin | Beryllium Copper | PLCC | 0.1 in | 125 °C | -55 °C | Beryllium Copper | 0.05 in | Solder | Closed Frame | Surface Mount | Tin | 2 x 7 2 x 9 | 32 | LCP Liquid Crystal Polymer |
