RM Series

Catalog

STANDARD CIRCULAR CONNECTOR 20AWG 6 PIN PLUG FEMALE

Part	Shell Material	Housing Color	Fastening Type	Orientation	Features	Ingress Protection Description	Ingress Protection IP Rating	Number of Positions	Shielding	Connector Type	Shell Finish	Type	Mounting Type	Shell Size - Insert Length	Shell Size - Insert Width	Contact Size	Material Flammability Rating	Contact Type	Contact Shape	Operating Temperature (Min)	Operating Temperature (Max)	Insert Material	Note	Termination	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Voltage Rating	Voltage Rating (Type)	Current Rating	Contact Finish - Mating	Mounting Feature	Contact Finish Thickness - Mating	Primary Material	Color	Material	Outside Cable Diameter (Min)	Thread Pitch (TPI)	Thread Size (Nominal)	Includes	Outside Cable Diameter (Max)
McGill Microwave Systems RT0W6106SNH	Zinc Alloy	Silver	Bayonet Lock	N (Normal)	Coupling Nut	Dust Tight Waterproof	IP67	6	Shielded	Plug Housing	Nickel	For Female Sockets	Free Hanging (In-Line)	10 mm	6 mm	20	UL94 V-0	Crimp	Circular	-40 °C	105 °C	Thermoplastic	Contacts Not Included

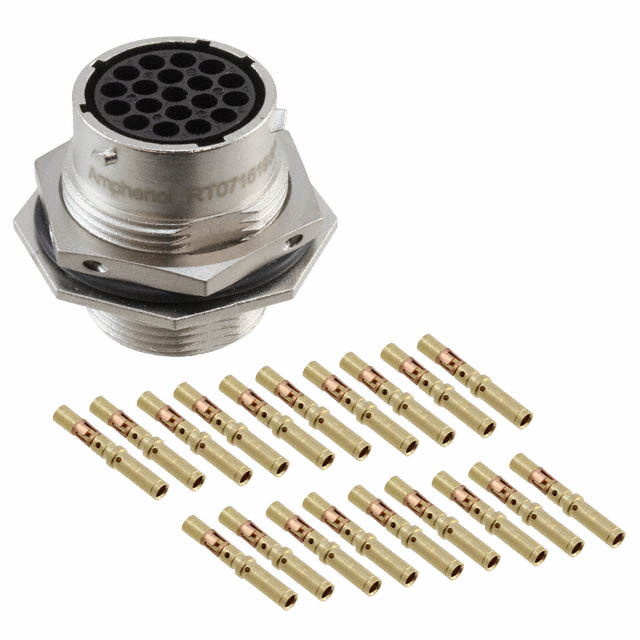

McGill Microwave Systems RT071619SNH-K	Zinc Die Cast		Bayonet Lock	N (Normal)		Dust Tight Waterproof	IP67	19		Female Sockets Receptacle	Nickel		Panel Mount							-40 °C	105 °C			Crimp	19	16 S	250 V	DC	13 A	Gold	Bulkhead Front Side Nut	Flash	Metal	Silver

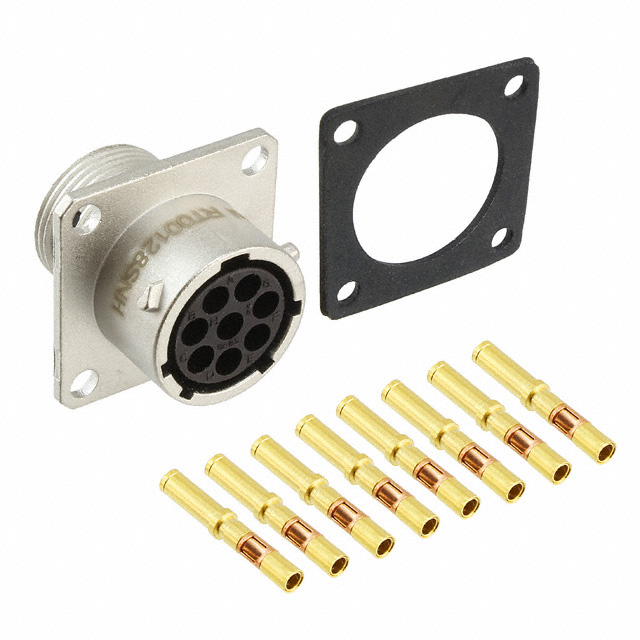

McGill Microwave Systems RT00128SNH-K	Zinc Die Cast		Bayonet Lock	N (Normal)		Dust Tight Waterproof	IP67	8		Female Sockets Receptacle	Nickel		Panel Mount	12 mm	8 mm					-40 °C	105 °C			Crimp			250 V	DC	13 A	Gold	Flange	Flash	Metal	Silver
McGill Microwave Systems RT0W01832PNH	Zinc Alloy	Silver	Bayonet Lock	N (Normal)		Dust Tight Waterproof	IP67	32	Shielded	Receptacle Housing	Nickel	For Male Pins	Panel Mount			20	UL94 V-0	Crimp							32	18					Flange

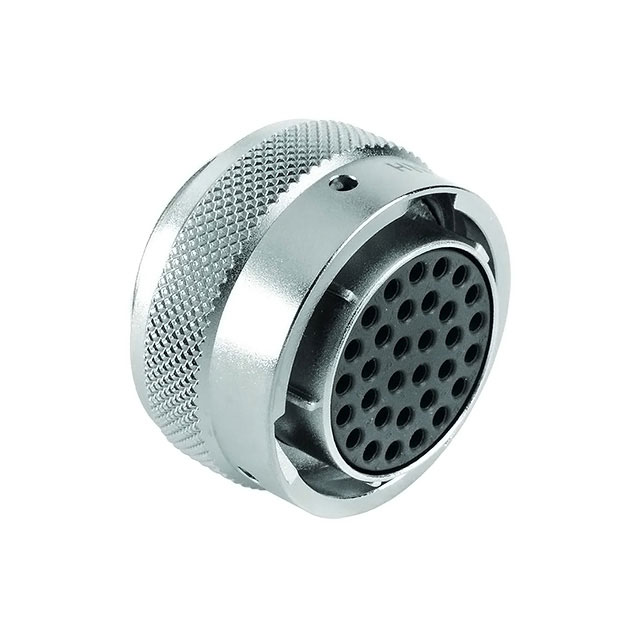

McGill Microwave Systems RT0W61832SNH	Zinc Alloy	Silver	Bayonet Lock	N (Normal)	Coupling Nut	Dust Tight Waterproof	IP67	32	Shielded	Plug Housing	Nickel	For Female Sockets	Free Hanging (In-Line)			20	UL94 V-0	Crimp	Circular	-40 °C	105 °C	Thermoplastic	Contacts Not Included		32	18
McGill Microwave Systems RT06142SNH	Zinc Alloy	Silver	Bayonet Lock	N (Normal)	Coupling Nut	Dust Tight Waterproof	IP67	4	Shielded	Plug Housing	Nickel	For Female Sockets	Free Hanging (In-Line)	14 mm	2 mm	2.5 mm 16	UL94 V-0	Crimp
McGill Microwave Systems RT0W61210SNH-K
McGill Microwave Systems RT0L-14CG-NS1												Cable Grip																						Silver	Nickel Plated Zinc Alloy	0.256 in	20 TPI	0.8125 in	O-Ring Seal	0.394 in
McGill Microwave Systems RT06188PNH	Zinc Alloy	Silver	Bayonet Lock	N (Normal)	Coupling Nut	Dust Tight Waterproof	IP67	8	Shielded	Plug Housing	Nickel	For Male Pins	Free Hanging (In-Line)	18 mm	8 mm	2.5 mm	UL94 V-0	Crimp	Circular	-40 °C	105 °C	Thermoplastic	Contacts Not Included

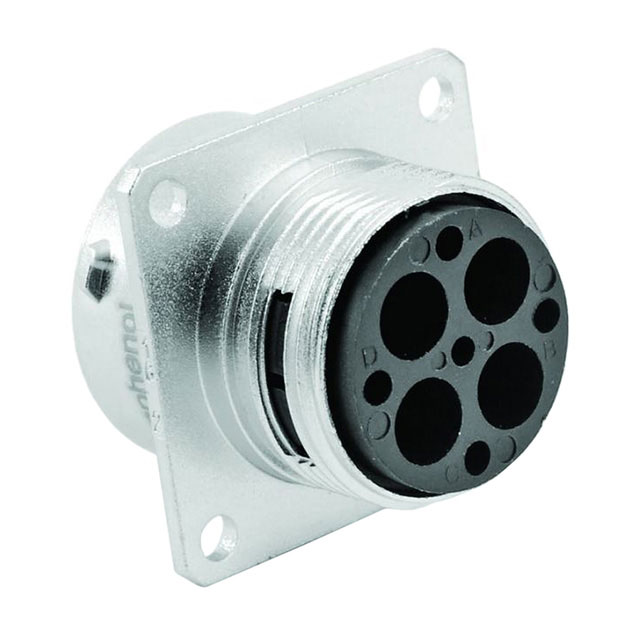

McGill Microwave Systems RT00164SNH	Zinc Alloy	Silver	Bayonet Lock	N (Normal)		Dust Tight Waterproof	IP67	4	Shielded	Receptacle Housing	Nickel	For Female Sockets	Panel Mount	16 mm	4 mm	3.6 mm	UL94 V-0	Crimp	Circular	-40 °C	105 °C	Thermoplastic	Contacts Not Included								Flange
