FA1-NASP Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
CONN FAKRA PLG STR 50OHM EDGEMNT
| Part | Connector Style | Mounting Type | Fastening Type | Housing Color | Impedance | Number of Ports | Shield Termination | Connector Type | Features - Code | Features | Contact Termination | Center Contact Material | Frequency - Max | Center Contact Plating | Body Material | Mating Cycles | Insertion Loss | Dielectric Material | Body Finish | Operating Temperature (Max) | Operating Temperature (Min) | Cable Group | Mounting Feature | Includes Total Count | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Fakra SMB | Board Edge Cutout Surface Mount | Locking Ramp | Black Jet | 50 Ohm | 1 | Solder | Male Pin Plug | A | Code A | Solder | Brass | 4 GHz | Gold | Brass | 100 cycles | 0.3 dB | Polytetrafluoroethylene (PTFE) | Nickel | 100 °C | -40 °C | ||||

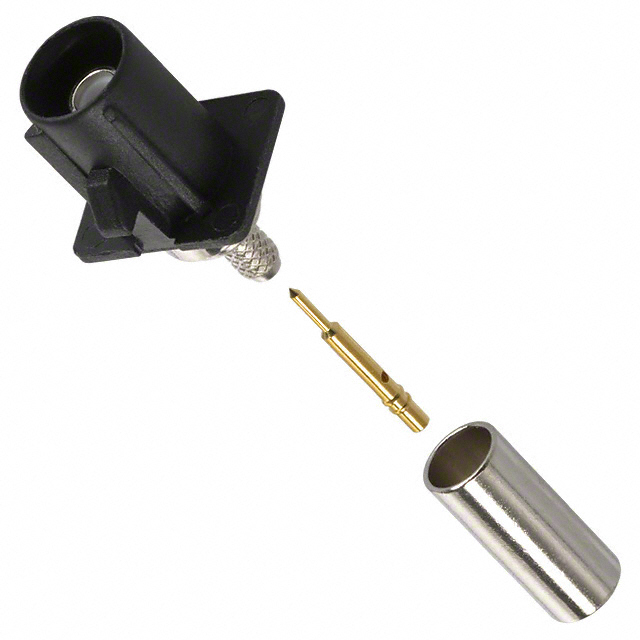

 McGill Microwave Systems | Fakra SMB | Panel Mount | Locking Ramp | Black Jet | 50 Ohm | 1 | Crimp | Male Pin Plug | A | Code A | Crimp | Brass | 4 GHz | Gold | Brass | 100 cycles | 0.3 dB | Polytetrafluoroethylene (PTFE) | Nickel | 100 °C | -40 °C | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | Flange | 3 pcs | Connector Contact Ferrule |

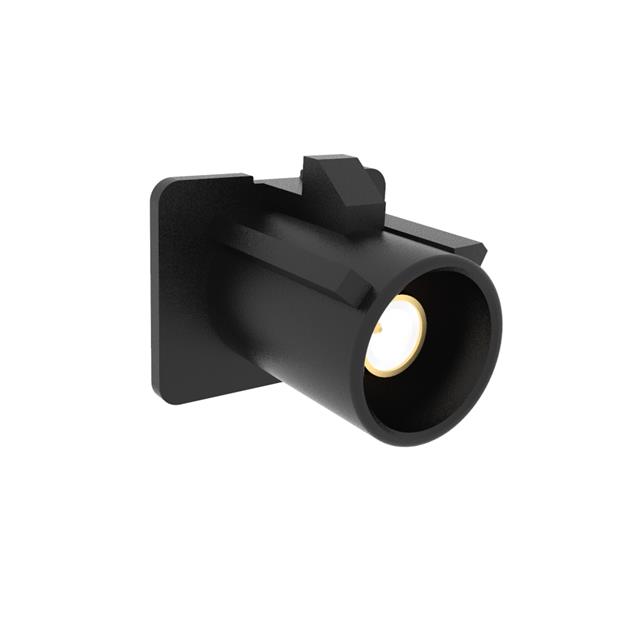

McGill Microwave Systems | Fakra SMB | Board Edge Cutout Right Angle Surface Mount Through Hole | Locking Ramp | Black Jet | 50 Ohm | 1 | Solder | Male Pin Plug | A | Code A | Solder | Brass | 4 GHz | Gold | Brass | 100 cycles | 0.3 dB | Polytetrafluoroethylene (PTFE) | Nickel | 100 °C | -40 °C | ||||
McGill Microwave Systems | Fakra SMB | Panel Mount | Locking Ramp | Black Jet | 50 Ohm | 1 | Crimp | Male Pin Plug | A | Code A | Crimp | Brass | 4 GHz | Gold | Brass | 100 cycles | 0.3 dB | Polytetrafluoroethylene (PTFE) | Nickel | 100 °C | -40 °C | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | Flange | 3 pcs | Connector Contact Ferrule |
 McGill Microwave Systems | Fakra SMB | Panel Mount | Locking Ramp | Black Jet | 50 Ohm | 1 | Crimp | Male Pin Plug | A | Code A | Crimp | Brass | 4 GHz | Gold | Brass | 100 cycles | 0.3 dB | Polytetrafluoroethylene (PTFE) | Nickel | 100 °C | -40 °C | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | Flange | 3 pcs | Connector Contact Ferrule |
 McGill Microwave Systems | Fakra SMB | Panel Mount | Locking Ramp | Black Jet | 50 Ohm | 1 | Crimp | Male Pin Plug | A | Code A | Crimp | Brass | 6000 MHz | Gold | Brass | 100 cycles | 0.3 dB | Polytetrafluoroethylene (PTFE) | Nickel | 100 °C | -40 °C | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | Flange | 3 pcs | Connector Contact Ferrule |
 McGill Microwave Systems | Fakra SMB | Through Hole | Locking Ramp | Black Jet | 50 Ohm | 1 | Solder | Male Pin Plug | A | Code A | Solder | Brass | 4 GHz | Gold | Brass | 100 cycles | Polytetrafluoroethylene (PTFE) | Gold | 85 °C | -40 °C |
