SF1511 Series

Catalog

CONN 2.92MM PLUG STR 50 OHM

Part	Body Material	Dielectric Material	Center Contact Plating	Number of Ports	Mounting Type	Center Contact Material	Frequency - Max	Connector Type	Cable Group Diameter (Default)	Cable Group	Connector Plug Diameter	Impedance	Housing Color	Fastening Type	Mating Cycles	Operating Temperature (Min)	Operating Temperature (Max)	Shield Termination	Features	Contact Termination	Mounting Feature	Cable Group Size	Insertion Loss	Includes	Includes Total Count

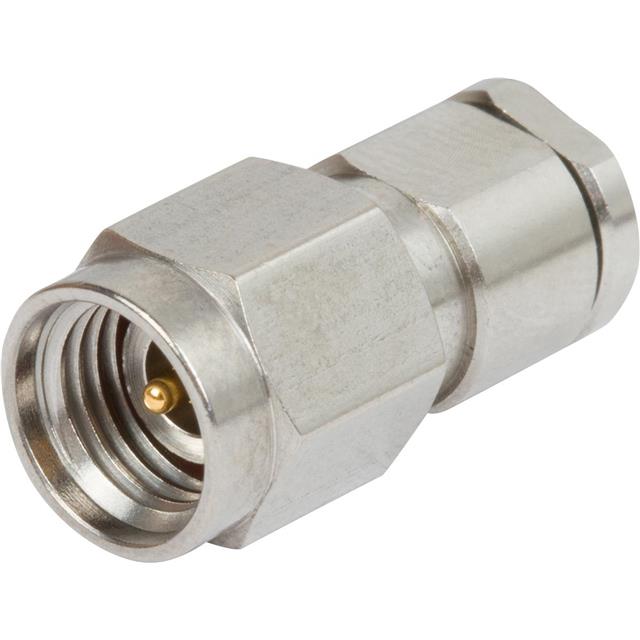

McGill Microwave Systems SF1511-60071	Stainless Steel	Polyetherimide (PEI)	Gold	1	Free Hanging (In-Line)	Beryllium Copper	40 Gbps	Male Pin Plug	0.085 in	RG-405	2.92 mm	50 Ohm	Silver	Threaded

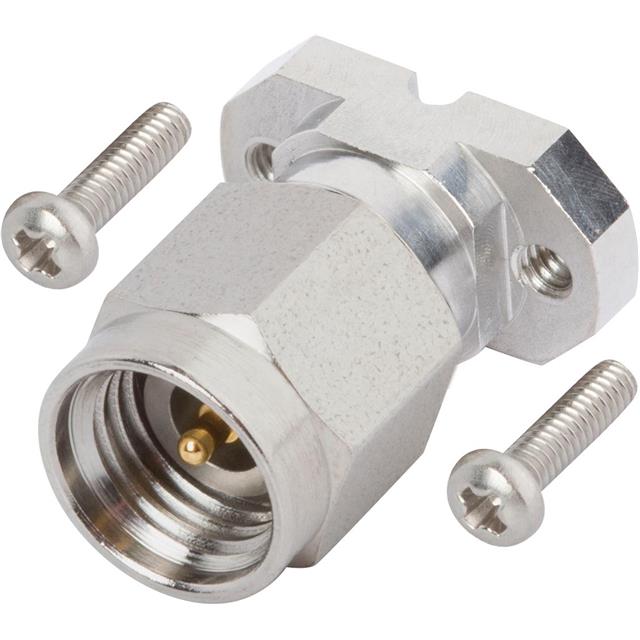

McGill Microwave Systems SF1511-60119-1S	Stainless Steel		Gold		Surface Mount	Beryllium Copper	40 Gbps	Male Pin Plug			2.92 mm	50 Ohm	Silver	Threaded	500 cycles	-65 °C	165 °C	Screw	Mounting Hardware	Compression	Flange
McGill Microwave Systems SF1511-60119-2S	Stainless Steel		Gold		Surface Mount	Beryllium Copper	40 Gbps	Male Pin Plug			2.92 mm	50 Ohm	Silver	Threaded	500 cycles	-65 °C	165 °C	Screw	Mounting Hardware	Compression	Flange

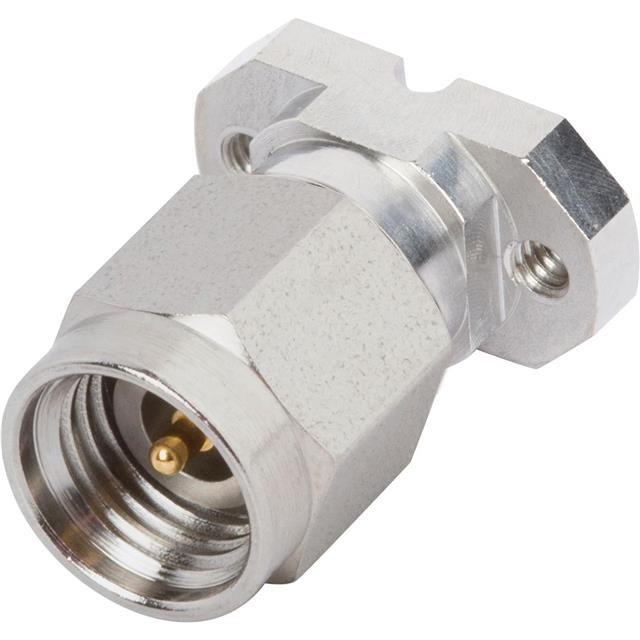

McGill Microwave Systems SF1511-60119	Stainless Steel		Gold		Surface Mount	Beryllium Copper	40 Gbps	Male Pin Plug			2.92 mm	50 Ohm	Silver	Threaded	500 cycles	-65 °C	165 °C	Screw		Compression	Flange
McGill Microwave Systems SF1511-60069	Stainless Steel	Polyetherimide (PEI)	Gold	1	Free Hanging (In-Line)	Beryllium Copper	40 Gbps	Male Pin Plug		Flexible	2.92 mm	50 Ohm	Silver	Threaded								0.047 "

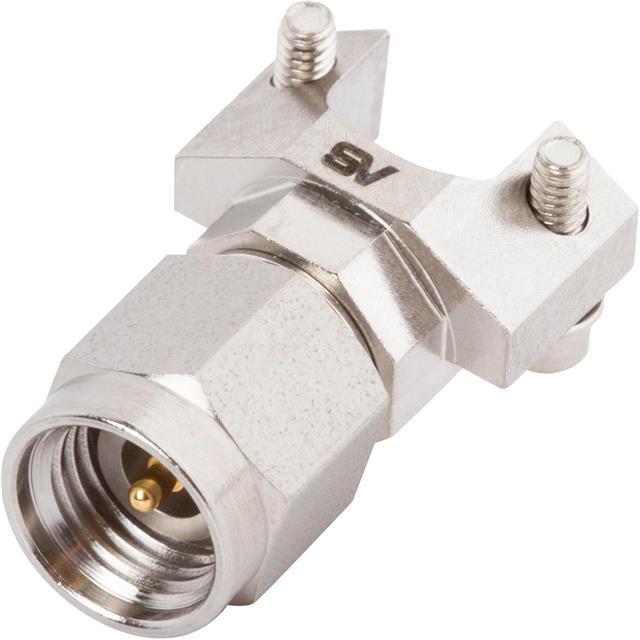

McGill Microwave Systems SF1511-60111	Stainless Steel		Gold	1	Board Edge End Launch	Beryllium Copper	26.5 GHz	Male Pin Plug			2.92 mm	50 Ohm	Silver	Threaded	500 cycles	-65 °C	165 °C	Screw	Mounting Hardware	Compression			0.206 dB	Connector Screws	3 pcs
