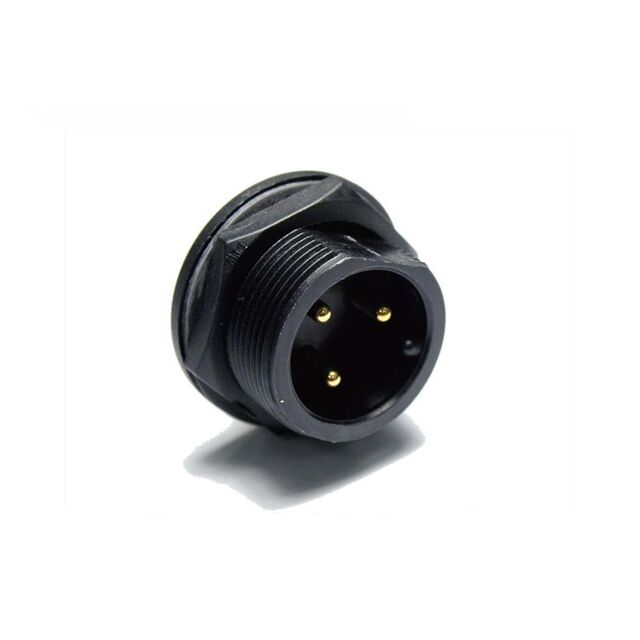

ADC-07PMMS Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
LARGE STAMPING PIN
| Part | Voltage Rating | Voltage Rating (Type) | Current Rating | Primary Material | Ingress Protection Description | Ingress Protection IP Rating | Insert Material | Orientation | Shielding | Shell Size - Insert | Connector Type | Mounting Type | Mounting Feature | Number of Positions | Termination | Contact Material | Color | Fastening Type | Operating Temperature (Min) | Operating Temperature (Max) | Contact Finish - Mating | Shell Material | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 250 V | DC | 20 A | Plastic | Dust Tight Waterproof | IP67 | Glass Filled Nylon PA Polyamide | Keyed | Unshielded | D | Male Pins Receptacle | Panel Mount | Bulkhead Front Side Nut | 7 | Solder Cup | Copper Alloy | Black | Bayonet Lock | -40 °C | 105 °C | Gold | Glass Filled Nylon Polyamide (PA) | UL94 V-0 |
McGill Microwave Systems | 250 V | DC | 20 A | Plastic | Dust Tight Waterproof | IP67 | Glass Filled Nylon PA Polyamide | Keyed | Unshielded | D | Male Pins Receptacle | Panel Mount | Bulkhead Flange Front Side Nut | 7 | Solder Cup | Copper Alloy | Black | Bayonet Lock | -40 °C | 105 °C | Gold | Glass Filled Nylon Polyamide (PA) | UL94 V-0 |
 McGill Microwave Systems | 250 V | DC | 20 A | Plastic | Dust Tight Waterproof | IP67 | Glass Filled Nylon PA Polyamide | Keyed | Unshielded | D | Male Pins Receptacle | Panel Mount | Bulkhead Front Side Nut | 7 | Solder Cup | Copper Alloy | Black | Threaded | -40 °C | 105 °C | Gold | Glass Filled Nylon Polyamide (PA) | UL94 V-0 |
