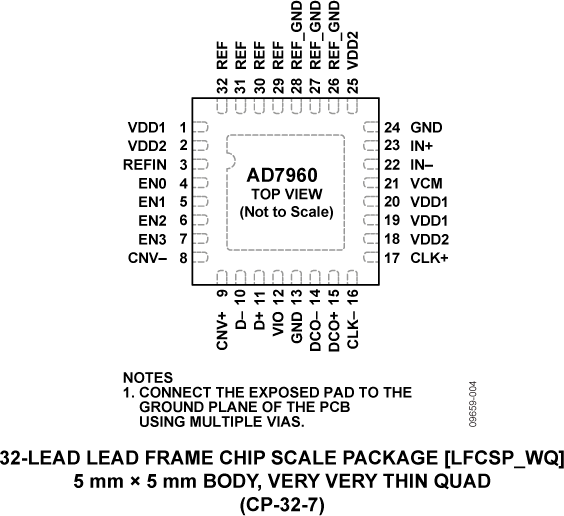

AD7960 Series

Catalog

DATA CONVERSION IC DEVELOPMENT TOOLS 18-BIT, 5 MSPS PULSAR DIFFERENTIAL ADC

Part	Supplied Contents	Input Range	Number of A/D Converters	Contents	Utilized IC / Part	Sampling Rate (Per Second)	Power (Typ)	Data Interface	Number of Bits	Architecture	Configuration	Ratio - ADC	Ratio - S/H	Input Type	Voltage - Supply, Analog	Package Width	Package Name	Package Length	Operating Temperature (Min)	Operating Temperature (Max)	Number of Inputs	Mounting Type	Reference Type	Package / Case	Voltage - Supply, Digital
Analog Devices Inc./Maxim Integrated EVAL-AD7960FMCZ	Board(s)	±VREF	1 count	Board	AD7960	5 MHz	64.5 mW	LVDS - Serial	18 bits
Analog Devices Inc./Maxim Integrated AD7960BCPZ			1 count			5 MHz		LVDS - Serial	18 bits	SAR	S/H-ADC	1	1	Differential	5 V	5 mm	32-LFCSP-WQ	5 mm	-40 °C	85 °C	1	Surface Mount	External Internal	32-WFQFN Exposed Pad CSP	5 V
Analog Devices Inc./Maxim Integrated AD7960BCPZ-RL7			1 count			5 MHz		LVDS - Serial	18 bits	SAR	S/H-ADC	1	1	Differential	5 V	5 mm	32-LFCSP-WQ	5 mm	-40 °C	85 °C	1	Surface Mount	External Internal	32-WFQFN Exposed Pad CSP	5 V
