908-22 Series

Catalog

CONN MMCX F 0HZ TO 6GHZ 50OHM SOLDER ST SMD GOLD T/R

Part	Dielectric Material	Center Contact Plating	Mating Cycles	Body Material	Body Finish	Connector Style	Number of Ports	Fastening Type	Mounting Type	Shield Termination	Connector Type	Impedance	Frequency - Max	Center Contact Material	Contact Termination	Housing Color	Operating Temperature (Min)	Operating Temperature (Max)
McGill Microwave Systems 908-22101-TCT	Liquid Crystal Polymer (LCP)	Gold	500 cycles	Beryllium Copper	Gold	MMCX	1	Snap-On	Surface Mount	Solder	Female Socket Jack	50 Ohm	6000 MHz	Beryllium Copper	Solder
McGill Microwave Systems 908-22101	Liquid Crystal Polymer (LCP)	Gold	500 cycles	Beryllium Copper	Gold	MMCX	1	Snap-On	Surface Mount	Solder	Female Socket Jack	50 Ohm	6000 MHz	Beryllium Copper	Solder	Black

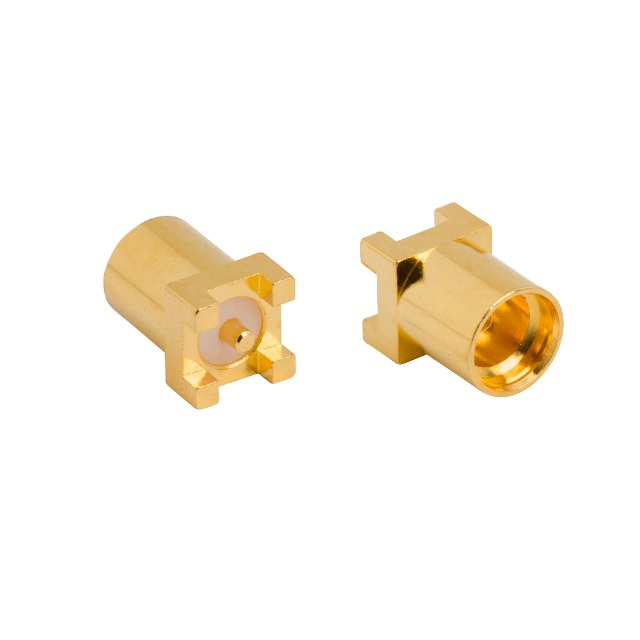

McGill Microwave Systems 908-22116	Polytetrafluoroethylene (PTFE)	Gold	500 cycles	Brass	Gold	MMCX	1	Snap-On	Surface Mount	Solder	Female Socket Jack	50 Ohm	6000 MHz	Beryllium Copper	Solder	Gold	-65 °C	165 °C

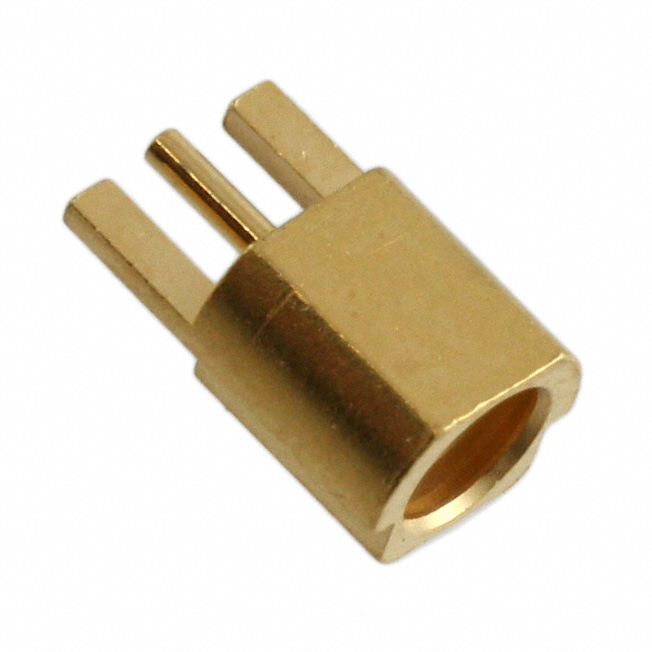

McGill Microwave Systems 908-22100T	Polytetrafluoroethylene (PTFE)	Gold	500 cycles	Brass	Gold	MMCX	1	Snap-On	Board Edge Cutout Surface Mount	Solder	Female Socket Jack	50 Ohm	6000 MHz	Beryllium Copper	Solder	Gold	-65 °C	165 °C
McGill Microwave Systems 908-22103	Polytetrafluoroethylene (PTFE)	Gold	500 cycles	Brass	Gold	MMCX	1	Snap-On	Board Edge Cutout Surface Mount	Solder	Female Socket Jack	50 Ohm	6000 MHz	Beryllium Copper	Solder	Gold
McGill Microwave Systems 908-22106	Polytetrafluoroethylene (PTFE)	Gold	500 cycles	Brass	Gold	MMCX	1	Snap-On	Through Hole	Solder	Female Socket Jack	50 Ohm	6000 MHz	Beryllium Copper	Solder	Gold
