NBB20 Series

Catalog

INDUCTIVE SEN 20MM NO/NC

Part	Package / Case	Sensing Distance	Ingress Protection	Shielding	Output Type	Voltage - Supply (Range 2 Minimum)	Voltage - Supply (Range 1 Maximum)	Voltage - Supply (Range 2 Maximum)	Voltage - Supply (Range 1 Minimum)	Material - Body	Indicator	Sensor Type	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Termination Style

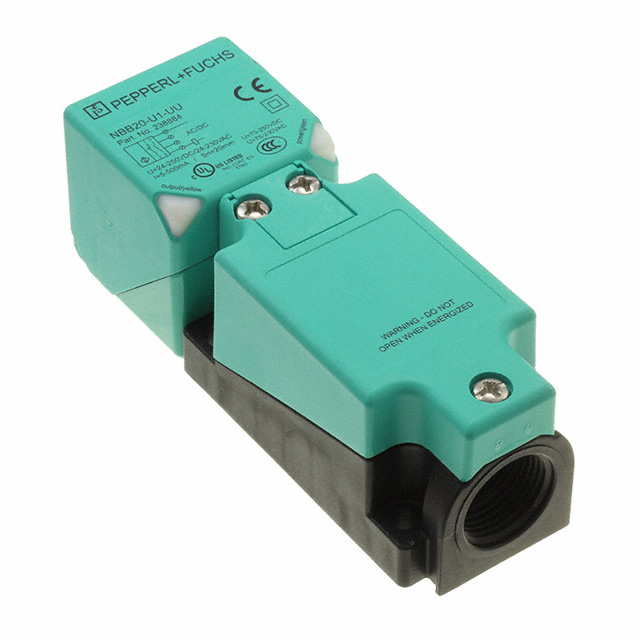

Pepperl+Fuchs, Inc. NBB20-U1-UU	Module	0.787 "	IP67	Unshielded	2-Wire NO SCR-NC	20 VDC	253 VAC	300 VDC	20 VAC	Polyamide (PA)	LED	Inductive	85 °C	-25 °C
Pepperl+Fuchs, Inc. NBB20-U4-UU	Module	0.787 "	IP67	Unshielded	2-Wire NO SCR-NC	20 VDC	253 VAC	300 VDC	20 VAC	Polyamide (PA)	LED	Inductive	85 °C	-25 °C

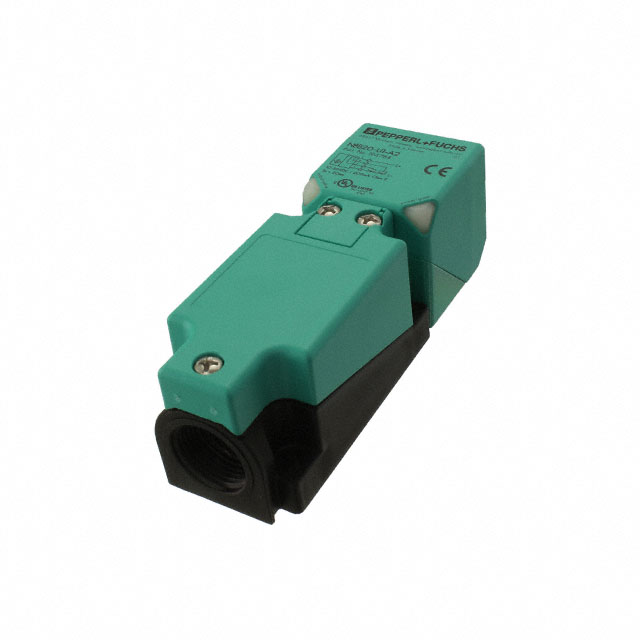

Pepperl+Fuchs, Inc. NBB20-U1-A2	Module	0.787 "	IP68 IP69K	Unshielded	4-Wire NO PNP-NC					Polyamide (PA)	LED	Inductive	85 °C	-25 °C	10 VDC	30 VDC

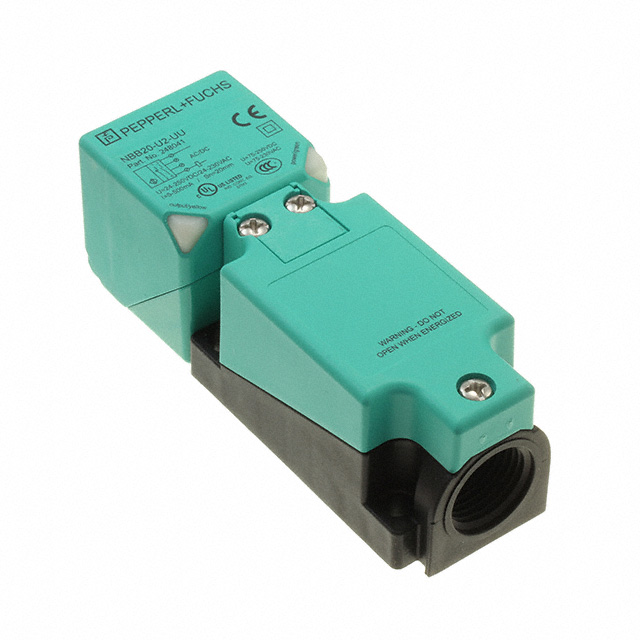

Pepperl+Fuchs, Inc. NBB20-U2-UU	Module	0.787 "	IP67	Unshielded	2-Wire NO SCR-NC	20 VDC	253 VAC	300 VDC	20 VAC	Polyamide (PA)	LED	Inductive	85 °C	-25 °C
Pepperl+Fuchs, Inc. NBB20-L2-E2-V1	Module	0.787 "	IP69K	Unshielded	3-Wire PNP-NO					Polyamide (PA)	LED	Inductive	85 °C	-25 °C	10 VDC	30 VDC	Connector

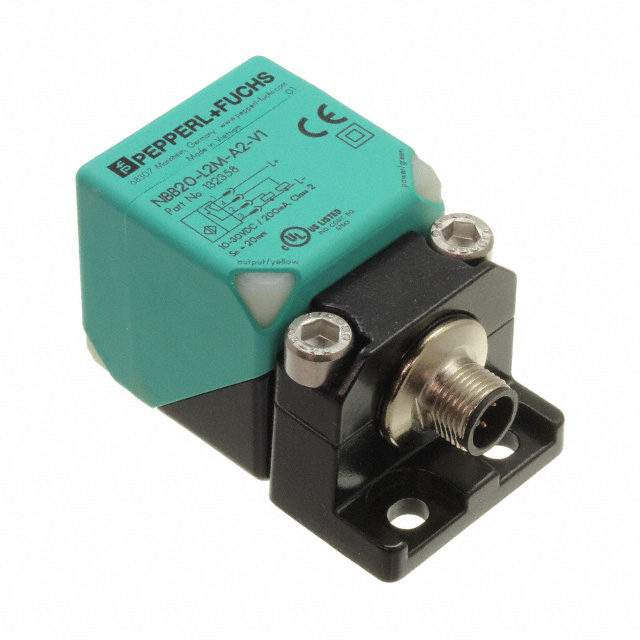

Pepperl+Fuchs, Inc. NBB20-L2M-A2-V1	Module	0.787 "	IP69K	Unshielded	4-Wire NO PNP-NC					Polyamide (PA)	LED	Inductive	85 °C	-25 °C	10 VDC	30 VDC	Connector

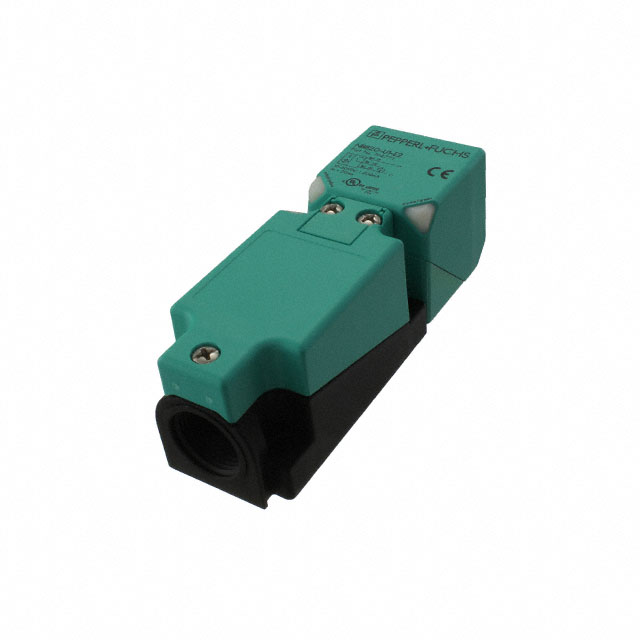

Pepperl+Fuchs, Inc. NBB20-U1-E2	Module	0.787 "	IP68 IP69K	Unshielded	3-Wire PNP-NO					Polyamide (PA)	LED	Inductive	85 °C	-25 °C	10 VDC	30 VDC
Pepperl+Fuchs, Inc. NBB20-L3M-A2-C3-V1	Module	0.787 "	IP67	Unshielded	4-Wire NO PNP-NC					Zinc Die-Cast	LED	Inductive	85 °C	-25 °C	10 VDC	30 VDC	Connector

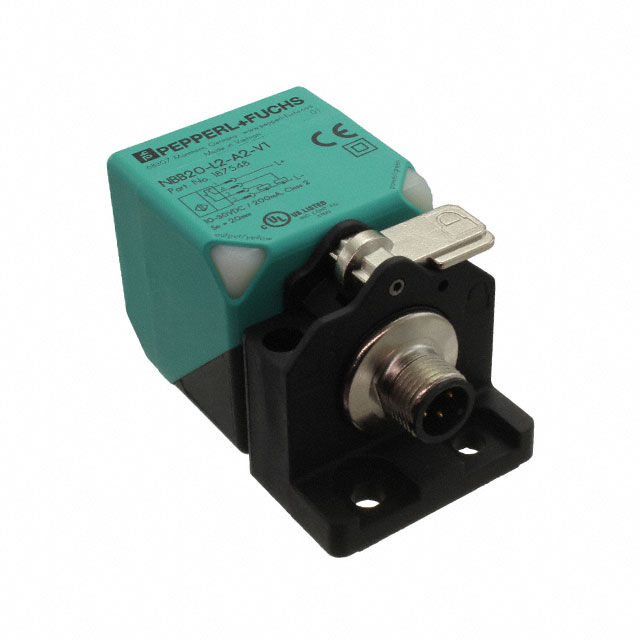

Pepperl+Fuchs, Inc. NBB20-L2-A2-V1	Module	0.787 "	IP69K	Unshielded	4-Wire NO PNP-NC					Polyamide (PA)	LED	Inductive	85 °C	-25 °C	10 VDC	30 VDC	Connector

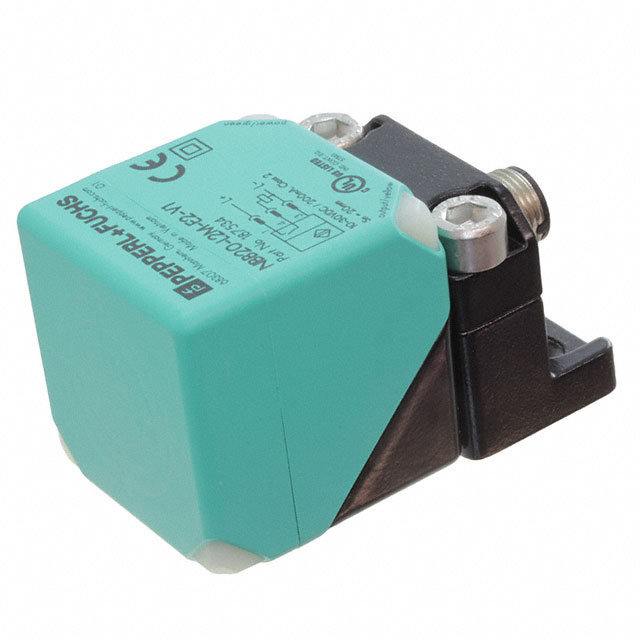

Pepperl+Fuchs, Inc. NBB20-L2M-E2-V1	Module	0.787 "	IP69K	Unshielded	3-Wire PNP-NO					Polyamide (PA)	LED	Inductive	85 °C	-25 °C	10 VDC	30 VDC	Connector
