320575 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

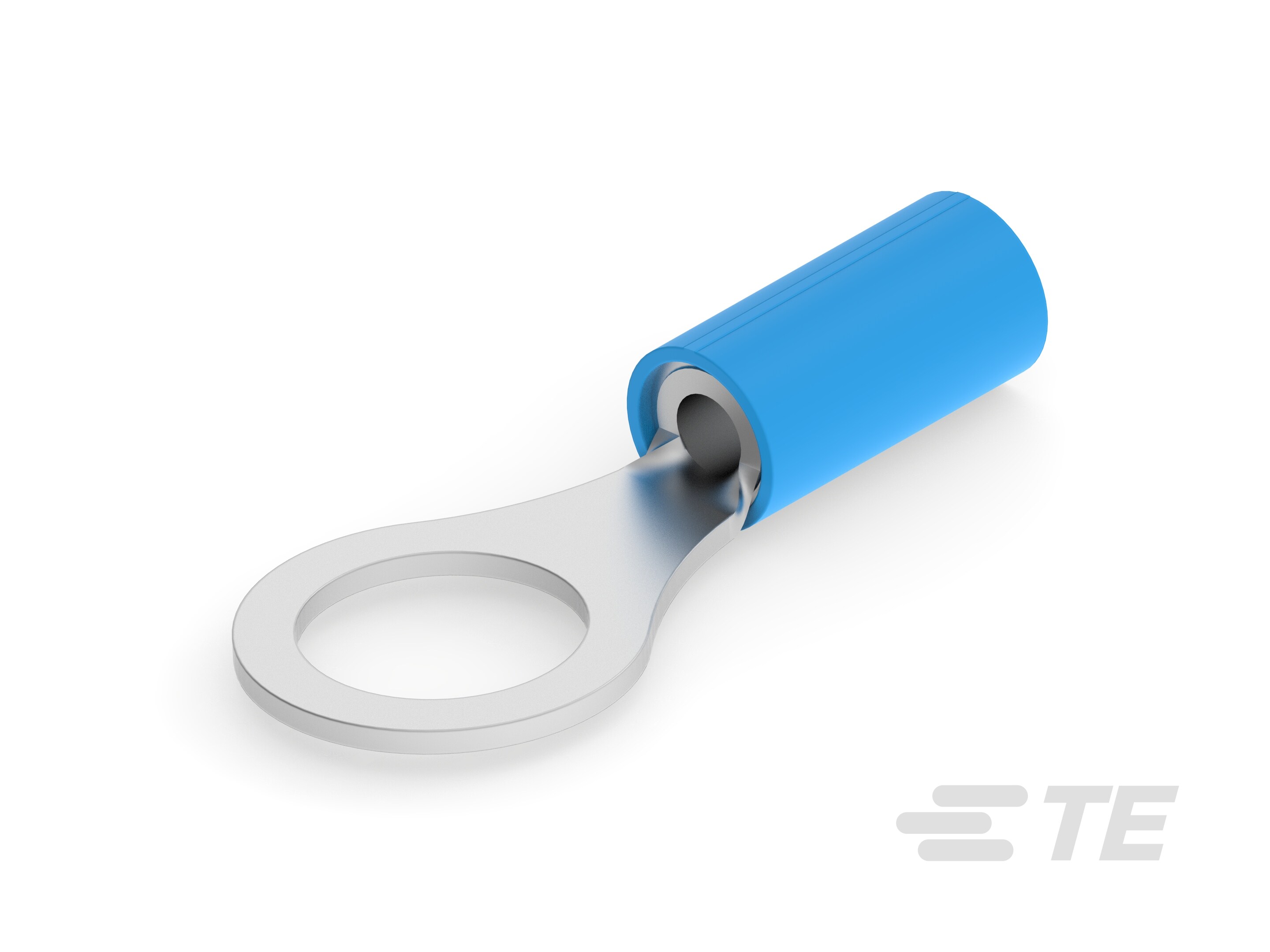

RING TONGUE TERMINAL, M8, 5/16", 10 AWG, 1.4 MM², PIDG SERIES, BLUE
| Part | Mounting Type | Thickness | Color | Wire Gauge | Length - Overall | Insulation | Contact Finish | Stud/Tab Size | Stud/Tab Size (Type) | Stud/Tab Size | Width - Outer Edges | Features | Contact Material | Terminal Type | Termination | Material - Insulation | Insulation Diameter (Max) | Insulation Diameter (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Free Hanging (In-Line) | 0.031 in | Blue Blue Stripe | 16 AWG | 1.14 in | Insulated | Tin | 0.3125 in | Stud | 16 Stud 5 Stud | 0.469 in | Insulation Restriction Serrated Termination | Copper | Circular | Crimp | Nylon PA Polyamide | 0.13 in | 0.063 in |
