KD34 Series

Catalog

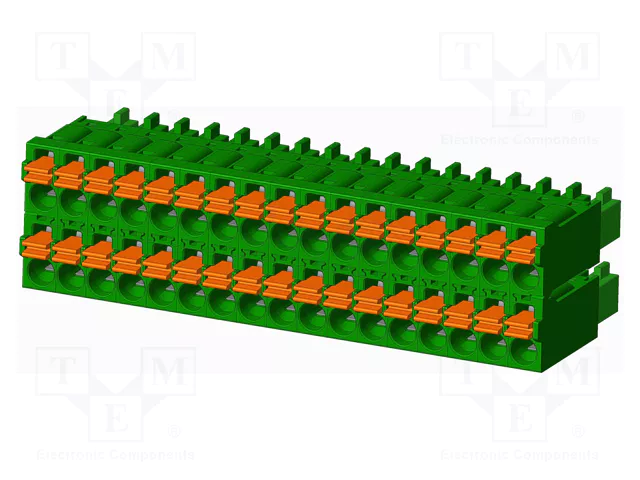

CONNECTOR: PLUGGABLE TERMINAL BLOCK; PLUG; FEMALE; 5.5A; 160V

Part	Positions Per Level	Plug Wire Entry Angle	Current - UL	Mounting Type	Number of Positions	Pitch	Termination Style	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Contact Mating Finish	Operating Temperature (Min)	Operating Temperature (Max)	Number of Levels	Color	Voltage - UL	Type	Wire Strip Length (Min)	Wire Strip Length (Max)	Insulation Height	Contact Material	Housing Material	Material Flammability Rating
McGill Microwave Systems KD341051A000G	17	180 °	5.5 A	Free Hanging (In-Line)	34	0.138 in	Push-In Spring Screwless - Leg Spring	24 AWG	16 AWG	Tin	-40 °C	115 °C	2	Green	160 V	Female Sockets Plug	9 mm	10 mm	0.634 in	Phosphor Bronze	Thermoplastic	UL94 V-0
McGill Microwave Systems KD341050A000G	17	180 °	5.5 A	Free Hanging (In-Line)	34	0.138 in	Push-In Spring Screwless - Leg Spring	24 AWG	16 AWG	Tin	-40 °C	115 °C	2	Green	160 V	Female Sockets Plug	9 mm	10 mm	0.634 in	Phosphor Bronze	Thermoplastic	UL94 V-0
