AHDMBS Series

Catalog

CONN BACKSHELL W/CLMP SZ18 SILV

Part	Includes	Screws Quantity	Includes Total Count	For Use With/Related Products	Material	Shell Size - Insert	Shell Size - Insert	Color	Thread Diameter	Thread Pitch	Features	Type	Plating	Cable Exit Angle	Cable Opening (Min)	Cable Opening (Max)	Shielding	Diameter - Outside	Cable Opening

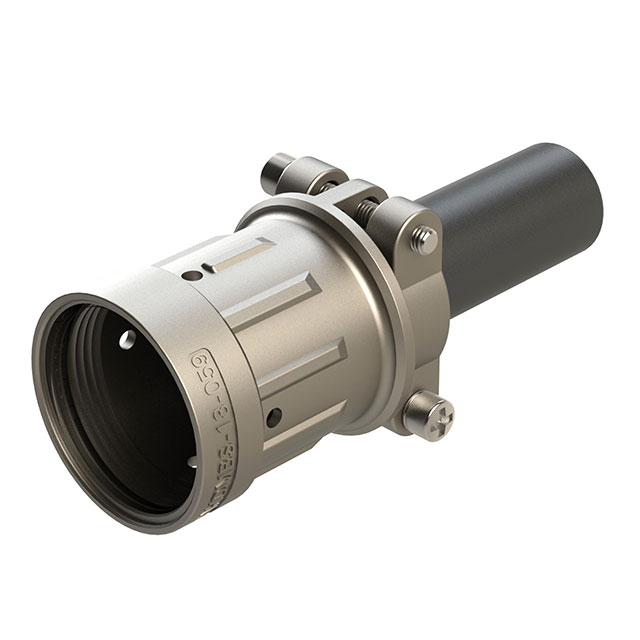

McGill Microwave Systems AHDMBS-18-059	Backshell Bushing Cable Clamp Screws Washers	2 pcs	8 pcs	AHDM Series	Aluminum Alloy	18	18	Silver	32 mm	1.5 mm	Bushing Clamp Screws	Backshell Cable Clamp	Nickel	180 °	0.441 in	0.76 in	Unshielded

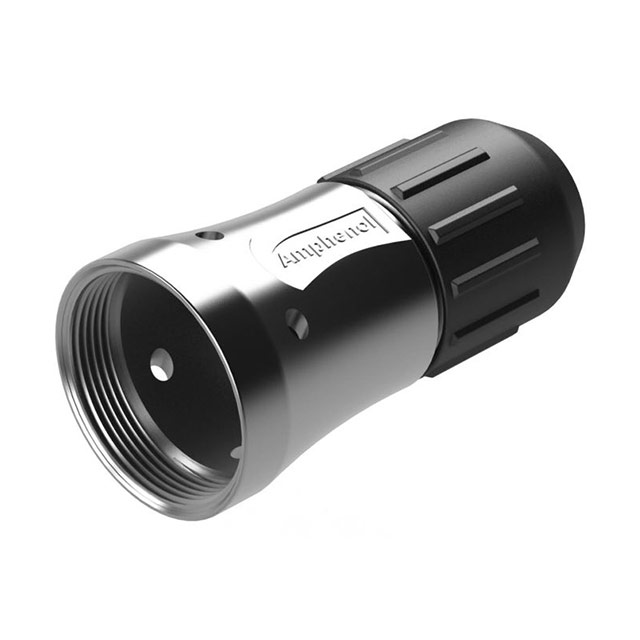

McGill Microwave Systems AHDMBS-24-002	Backshell Cage Clamp Compression Nut		3 pcs	AHDM Series	Aluminum Alloy	24	24	Black Silver	38 mm	1.5 mm	Strain Relief	Backshell	Nickel	180 °	0.807 in	0.953 in	Shielded	1.654 in
McGill Microwave Systems AHDMBS-18-SM01	Backshell Cage Clamp Compression Nut O-Rings Rubber Ring		6 pcs	AHDM Series	Aluminum Alloy	18	18	Black Silver	32 mm	1.5 mm		Backshell	Nickel	180 °	0.394 in	0.63 in	Unshielded	1.406 in

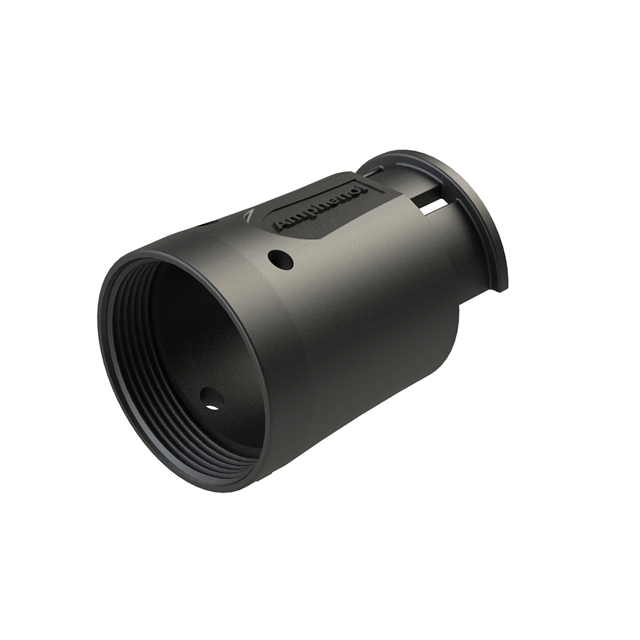

McGill Microwave Systems AHDMBS-24-001				AHDM Series	Thermoplastic	24	24	Black	38 mm	1.5 mm	Tie Wrap Holder	Backshell		180 °			Unshielded	1.622 in	1.126 in

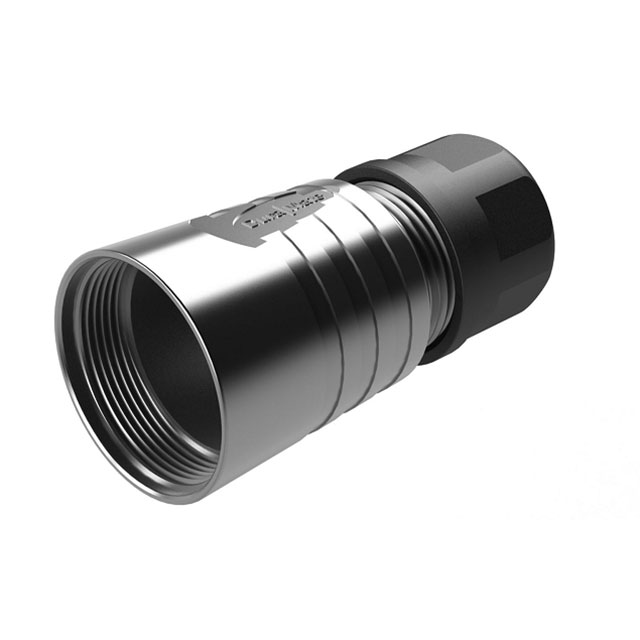

McGill Microwave Systems AHDMBS-24-SM01	Backshell Cage Clamp Compression Nut O-Rings Rubber Ring		6 pcs	AHDM Series	Aluminum Alloy	24	24	Black Silver	38 mm	1.5 mm		Backshell	Nickel	180 °	0.472 in	0.709 in	Unshielded	1.642 in
McGill Microwave Systems AHDMBS-24-059	Backshell Bushing Cable Clamp Screws Washers	2 pcs	8 pcs	AHDM Series	Aluminum Alloy	24	24	Silver	38 mm	1.5 mm	Bushing Clamp Screws	Backshell Cable Clamp	Nickel	180 °	0.441 in	0.948 in	Unshielded
