320564 Series

Catalog

SPADE TONGUE TERMINAL 14AWG COPPER BLUE/GREEN 31.24MM TIN LOOSE

Part	Contact Material	Wire Gauge	Insulation	Width - Outer Edges	Thickness	Mounting Type	Color	Features	Terminal Type	Termination	Stud/Tab Size	Stud/Tab Size	Length - Overall	Contact Finish	Material - Insulation	Insulation Diameter (Max)	Insulation Diameter (Min)	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)

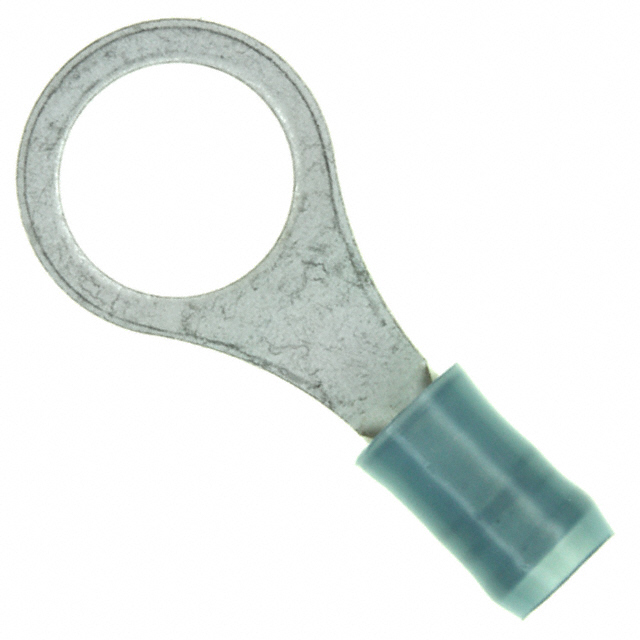

TE Connectivity AMP Connectors 2-320564-2	Copper	14 AWG	Insulated	0.531 in	0.031 in	Free Hanging (In-Line)	Blue Green Stripe	Insulation Restriction Serrated Termination	Circular	Crimp	0.375 in	3 Stud 8 Stud	1.28 in	Tin	Nylon PA Polyamide	0.13 in	0.078 in

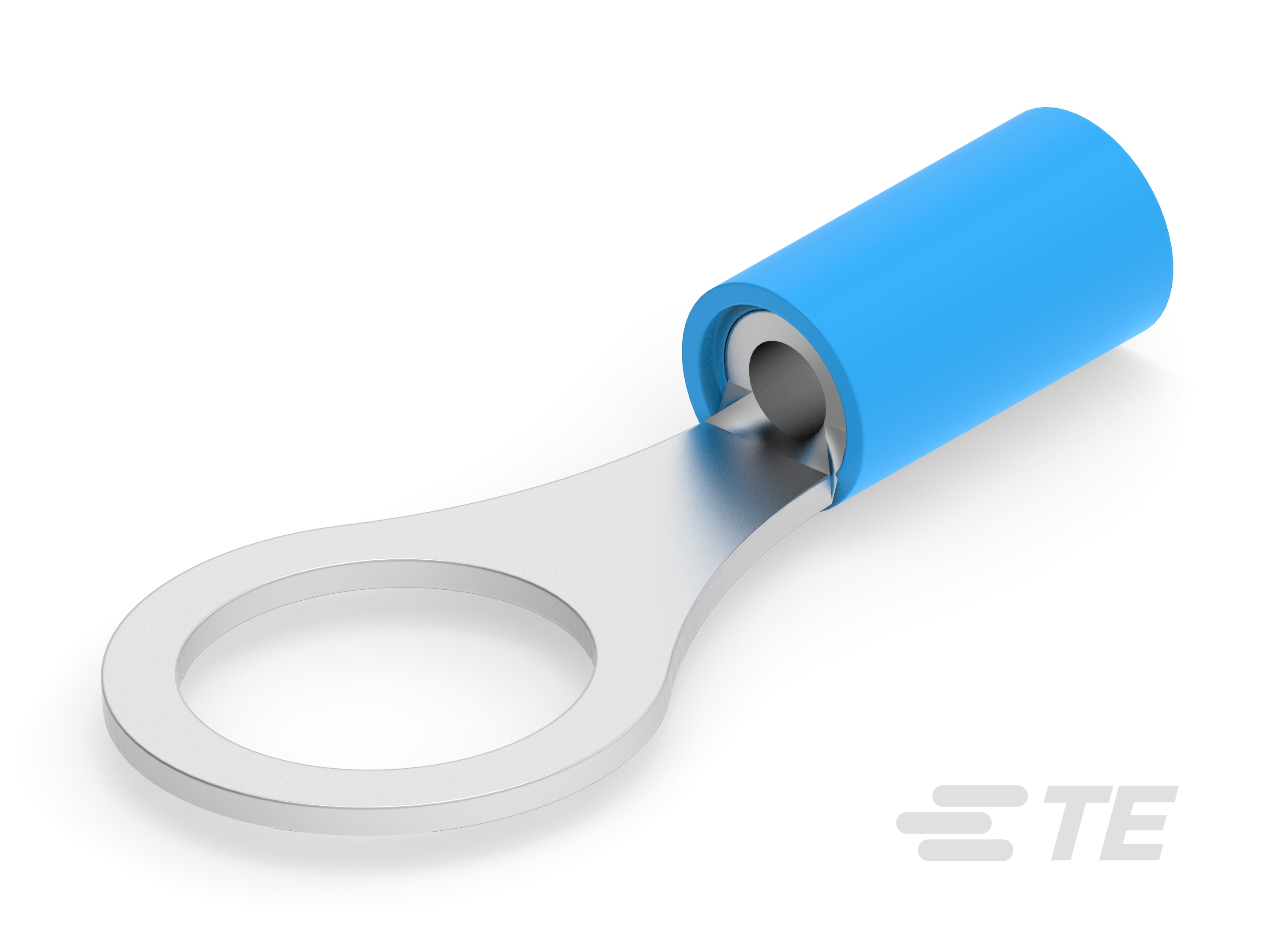

TE Connectivity AMP Connectors 2-320564-3	Copper		Insulated	0.531 in	0.031 in	Free Hanging (In-Line)	Blue	Serrated Termination	Circular	Crimp	0.375 in	3 Stud 8 Stud	1.218 in	Tin	Nylon PA Polyamide	0.15 in	0.105 in	16 AWG	14 AWG
TE Connectivity AMP Connectors 8-320564-1	Copper		Insulated	0.531 in	0.031 in	Free Hanging (In-Line)	Blue	Serrated Termination	Circular	Crimp	0.375 in	3 Stud 8 Stud	1.218 in	Tin	Nylon PA Polyamide	0.15 in	0.105 in	16 AWG	14 AWG
