SF4501 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

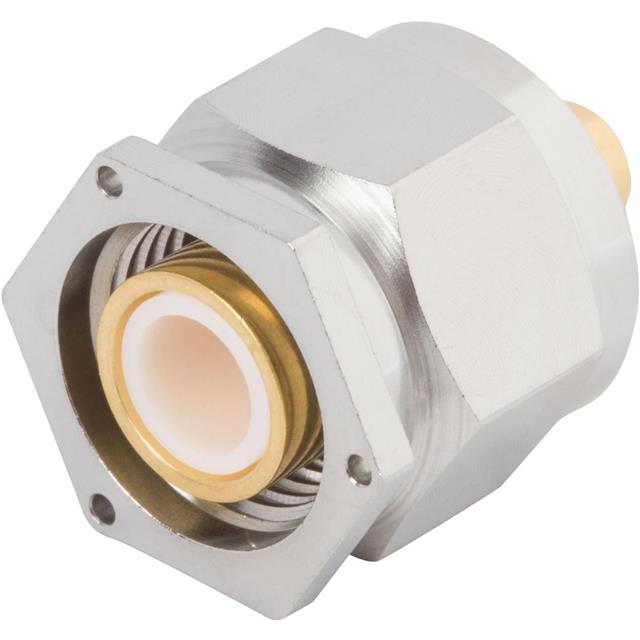

CONN PTNC PLUG STR 50OHM SOLDER
| Part | Mating Cycles | Operating Temperature (Min) | Operating Temperature (Max) | Body Material | Center Contact Plating | Dielectric Material | Connector Style | Connector Type | Impedance | Shield Termination | Number of Ports | Center Contact Material | Mounting Type | Contact Termination | Cable Group Diameter (Default) | Cable Group | Frequency - Max | Housing Color | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 500 cycles | -65 °C | 165 °C | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | PTNC | Male Pin Plug | 50 Ohm | Solder | 1 | Beryllium Copper | Free Hanging (In-Line) | Solder | 0.085 in | RG-405 | 15 GHz | Silver | Threaded |
