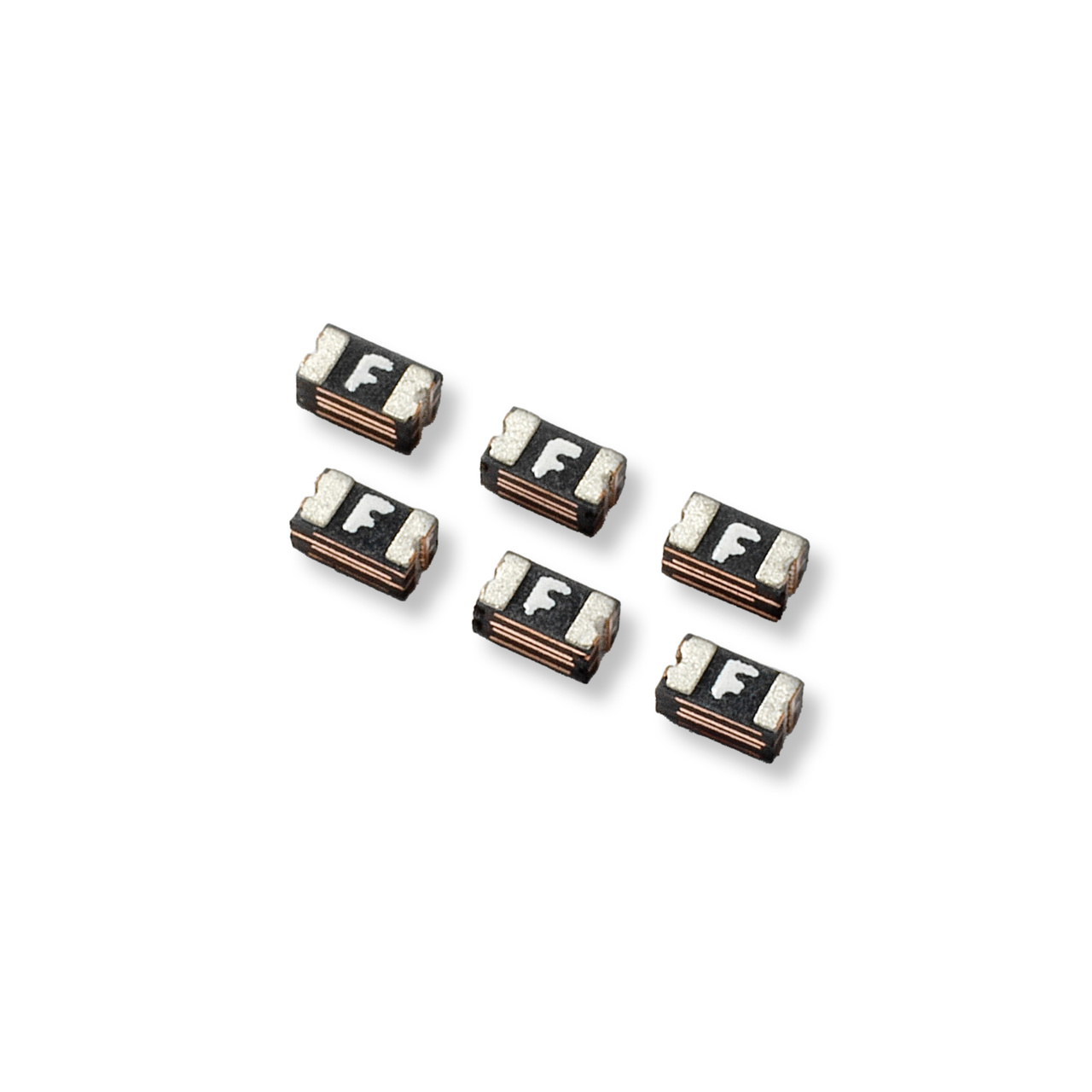

PTC 9V POLYFUSE SURF MOUNT 0603 .250A
Description
AI
The 0603L Series PTC provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.
Beta
⌘K
PTC 9V POLYFUSE SURF MOUNT 0603 .250A
PTC 9V POLYFUSE SURF MOUNT 0603 .250A
| Part | Type | Current - Max | Mounting Type | Resistance - Initial (Ri) (Min) | Current - Hold (Ih) (Max) | Thickness (Max) | Current - Trip (It) | Size / Dimension Length | Size / Dimension Width | Time to Trip | Voltage - Max | Package / Case | Operating Temperature (Min) | Operating Temperature (Max) | Resistance - Post Trip (R1) (Max) | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | Polymeric | 40 A | Surface Mount | 500 mOhms | 250 mA | 0.03 in | 550 mA | 0.063 in | 0.032 in | 80 ms | 9 V | 0603 (1608 Metric) Concave | -40 °C | 85 °C | 3 Ohms | cURus TUV |
