2236715 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

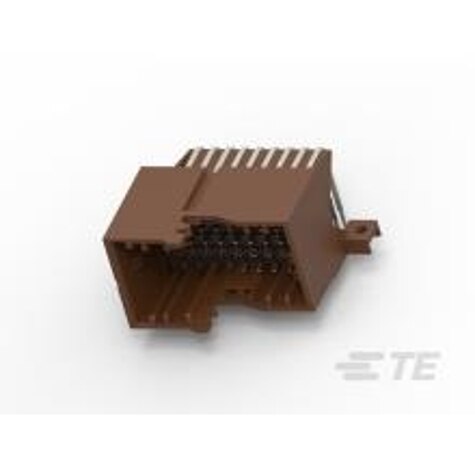

AUTOMOTIVE CONNECTORS 36P,TAB1.5X0.64,HDER ASSY,CODA,90DEG
| Part | Insulation Material | Features | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Insulation Height | Contact Shape | Termination | Pitch - Mating | Shrouding | Number of Positions Loaded | Contact Type | Contact Length - Post | Contact Material | Style | Insulation Color | Contact Length - Mating | Contact Finish - Post | Fastening Type | Material Flammability Rating | Voltage Rating | Row Spacing - Mating | Connector Type | Contact Finish - Mating | Number of Rows | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Glass Filled Polybutylene Terephthalate (PBT) | Mounting Flange | Right Angle Through Hole | -40 °C | 140 °C | 1.112 in | Rectangular | Solder | 0.157 in | Shrouded - 4 Wall | All | Tab | 0.122 in | Copper Tin | Board Cable/Wire | Brown | 0.268 in | Silver | Push-Pull | UL94 V-0 | 36 VAC | 0.15 in | Header | Silver | 4 | 36 |
