3007W2S Series

Catalog

CONN RCPT FEMALE SOCKETS 7POS

Part	Connector Type	Color	Contact Material	Dielectric Material	Voltage Rating	Number of Rows	Mounting Type	Features	Finish	Shell Material	Contact Finish	Flange Feature	Current Rating	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Termination	Number of Positions (Special)	Position Types	Number of Positions (Total)	Number of Positions (Standard)	Material Flammability Rating	Contact Type	Connector Style	Shell Size	Part Code	Connector Layout	Operating Temperature (Max)	Operating Temperature (Min)	Wire Gauge	Number of Positions (Normal)	Number of Positions (Power)	Backset Spacing	Current Rating Options
McGill Microwave Systems 3007W2SAR71E20X	Female Sockets Receptacle
McGill Microwave Systems 3007W2SAT59N40X	Female Sockets Receptacle
McGill Microwave Systems 3007W2SAR99E20X	Female Sockets Receptacle	Green	Copper Alloy	Glass Filled Polybutylene Terephthalate (PBT)	250 V	2	Through Hole	Board Lock	Tin Plated	Steel	Gold	Board Side (4-40)	7.5 A	0	Flash	Flash	Solder	2	Coax Power	7	5	UL94 V-0	Coax or Power Signal	Combo D-Sub	2	7W2	A DA
McGill Microwave Systems 3007W2SAR68C20X	Female Sockets Receptacle

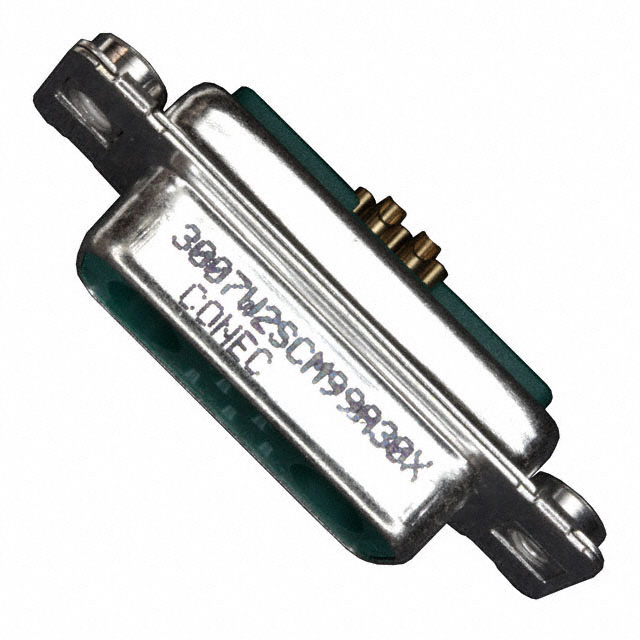

McGill Microwave Systems 3007W2SCM99A30X	Female Sockets Receptacle	Green	Copper Alloy	Glass Filled Polybutylene Terephthalate (PBT)		2	Free Hanging (In-Line)		Tin Plated	Steel	Gold	Cable Side (4-40)		30 µin			Solder Cup	2	Coax Power	7	5	UL94 V-0	Coax or Power Signal	Combo D-Sub	2	7W2	A DA	125 °C	-55 °C	20 AWG
McGill Microwave Systems 3007W2SCM42A10X	Female Sockets Receptacle	Green	Copper Alloy	Glass Filled Polybutylene Terephthalate (PBT)	250 V	2	Free Hanging (In-Line)		Tin Plated	Steel	Gold	Housing Shell (Unthreaded)	20 A	30 µin			Solder Cup			7		UL94 V-0	Power Signal	Combo D-Sub	2	7W2	A DA	125 °C	-55 °C		5	2
McGill Microwave Systems 3007W2SCT56N40X	Female Sockets Receptacle	Green	Copper Alloy	Glass Filled Polybutylene Terephthalate (PBT)	250 V	2	Right Angle Through Hole	Board Lock	Tin Plated	Steel	Gold	Housing Shell (4-40)		30 µin			Solder			7		UL94 V-0	Power Signal	Combo D-Sub	2	7W2	A DA	125 °C	-55 °C		5	2	0.287 in	20A 5A
McGill Microwave Systems 3007W2SCR76F20X	Female Sockets Receptacle
McGill Microwave Systems 3007W2SAR99F20X	Female Sockets Receptacle	Green	Copper Alloy	Glass Filled Polybutylene Terephthalate (PBT)	250 V	2	Through Hole	Board Lock	Tin Plated	Steel	Gold	Mating Side (4-40)	7.5 A	8 µin			Solder	2	Coax Power	7	5	UL94 V-0	Coax or Power Signal	Combo D-Sub	2	7W2	A DA
McGill Microwave Systems 3007W2SAP99A30X	Female Sockets Receptacle
