796694 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
6 POS TERMI-BLOK HDR DIR. POL.
| Part | Termination Style | Contact Mating Finish | Color | Number of Positions | Mounting Type | Type | Material Flammability Rating | Voltage - UL | Contact Material | Positions Per Level | Number of Levels | Insulation Height | Insulation Height | Pitch [x] | Pitch [x] | Header Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Current - UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Solder | Tin | Blue | 6 | Through Hole | Header Male Pins Shrouded (4 Side) | UL94 V-0 | 300 V | Brass | 6 | 1 | 0.362 in | 9.2 mm | 3.5 mm | 0.138 in | Vertical | -40 °C | 110 °C | 11 A |
TE Connectivity Raychem Cable Protection | Solder | Tin | Blue | 2 | Through Hole | Header Male Pins Shrouded (4 Side) | UL94 V-0 | 300 V | Brass | 2 | 1 | 0.362 in | 9.2 mm | 3.5 mm | 0.138 in | Vertical | -40 °C | 110 °C | 11 A |
TE Connectivity Raychem Cable Protection | Solder | Tin | Blue | Through Hole | Header Male Pins Shrouded (4 Side) | UL94 V-0 | 300 V | Brass | 3 | 1 | 0.362 in | 9.2 mm | 3.5 mm | 0.138 in | Vertical | -40 °C | 110 °C | 11 A | |

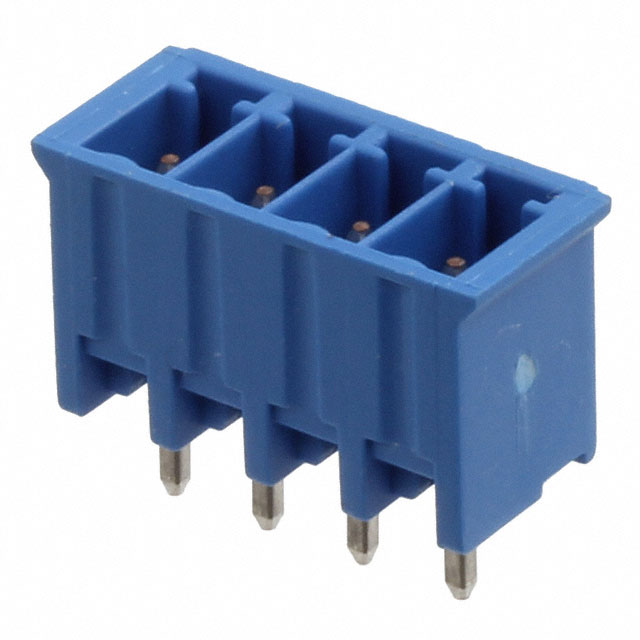

 TE Connectivity Raychem Cable Protection | Solder | Tin | Blue | 4 | Through Hole | Header Male Pins Shrouded (4 Side) | UL94 V-0 | 300 V | Brass | 4 | 1 | 0.362 in | 9.2 mm | 3.5 mm | 0.138 in | Vertical | -40 °C | 110 °C | 11 A |
