84984 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

(2-84984-6) 1MM FFC DIP V ASSY 26P TUBE

Part	FFC, FCB Thickness	Contact Finish	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Flat Flex Type	Number of Positions	Cable End Type	Mounting Type	Connector/Contact Type	Pitch [x]	Pitch [x]	Housing Color	Voltage Rating	Termination

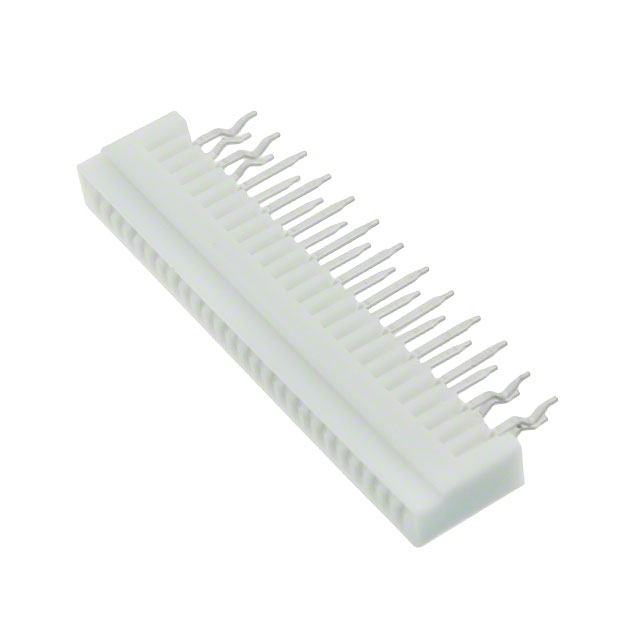

TE Connectivity Raychem Cable Protection 2-84984-6	0.3 mm	Tin	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-20 C	Phosphor Bronze	FFC FPC	26	Straight	Through Hole	Contacts Vertical - 1 Sided	0.039 in	1 mm	White	125 VDC	Kinked Pin
TE Connectivity Raychem Cable Protection 2-84984-9	0.3 mm	Tin	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-20 C	Phosphor Bronze	FFC FPC	29	Straight	Through Hole	Contacts Vertical - 1 Sided	0.039 in	1 mm	White	125 VDC	Kinked Pin

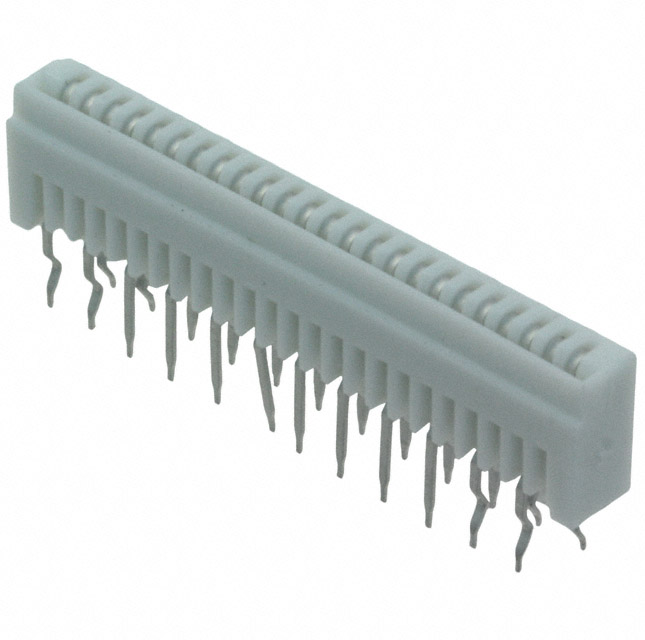

TE Connectivity Raychem Cable Protection 2-84984-4	0.3 mm	Tin	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-20 C	Phosphor Bronze	FFC FPC	24	Straight	Through Hole	Contacts Vertical - 1 Sided	0.039 in	1 mm	White	125 VDC	Kinked Pin
TE Connectivity Raychem Cable Protection 84984-8	0.3 mm	Tin	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-20 C	Phosphor Bronze	FFC FPC	8	Straight	Through Hole	Contacts Vertical - 1 Sided	0.039 in	1 mm	White	125 VDC	Kinked Pin
TE Connectivity Raychem Cable Protection 2-84984-0	0.3 mm	Tin	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-20 C	Phosphor Bronze	FFC FPC	20	Straight	Through Hole	Contacts Vertical - 1 Sided	0.039 in	1 mm	White	125 VDC	Kinked Pin

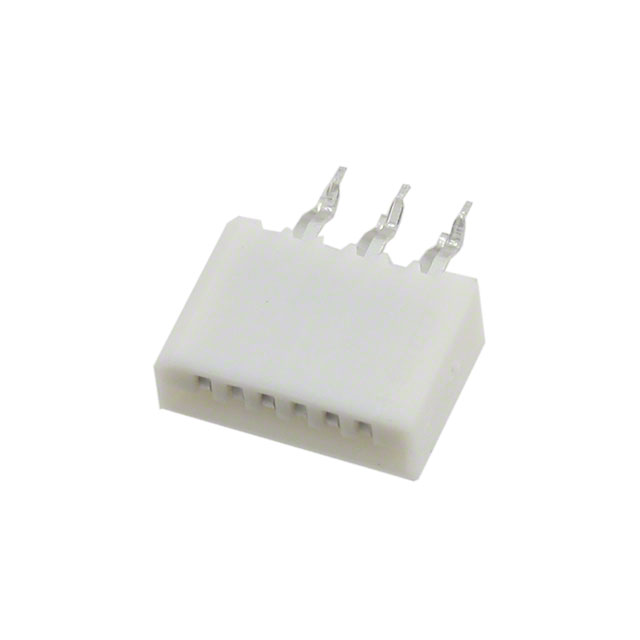

TE Connectivity Raychem Cable Protection 84984-6	0.3 mm	Tin	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-20 C	Phosphor Bronze	FFC FPC	6	Straight	Through Hole	Contacts Vertical - 1 Sided	0.039 in	1 mm	White	125 VDC	Kinked Pin
