AD-SMA Series

Catalog

COAX ADAPT SMA TO EFI, HD

Part	Adapter Type	Center Gender	Convert From (Adapter End)	Style	Convert To (Adapter End)	Adapter Series	Conversion Type	Features	Fastening Type	Mounting Type	Frequency - Max	Center Contact Plating	Impedance	Body Finish	Body Material	Mating Cycles (Min)	Mating Cycles (Max)	Center Contact Material	Operating Temperature (Max)	Operating Temperature (Min)	Dielectric Material	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Mating Cycles	Mounting Feature	Insertion Loss	Mating Cycles
McGill Microwave Systems AD-SMAJHDEFIJ-1	Jack to Jack	Female	Female Socket SMA Jack	Straight	EFI HD Jack Male Pin	HD SMA to EFI	Between Series	Limited Detent	Snap-In Threaded	Free Hanging (In-Line)	6000 MHz	Gold	50 Ohm	White Bronze	Brass	50 cycles	500 cycles	Beryllium Copper	125 °C	-55 °C	Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE)
McGill Microwave Systems AD-SMAPSMAJ-2	Plug to Jack	Female Male	Female Socket SMA Jack	Right Angle		SMA to SMA	Same Series		Threaded	Free Hanging (In-Line) Right Angle	22 GHz	Gold	50 Ohm	Gold	Brass			Brass	165 °C	-65 °C	Polytetrafluoroethylene (PTFE)	SMA Plug	Male Pin	500 cycles

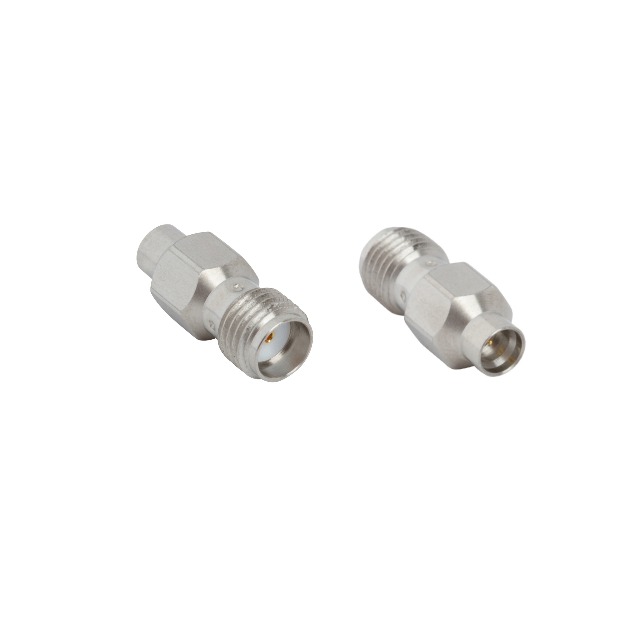

McGill Microwave Systems AD-SMAJSMPJ-3	Jack to Jack	Female Male	Female Socket SMA Jack	Straight		SMA to SMP	Between Series	Limited Detent	Snap-On Threaded	Free Hanging (In-Line)		Gold	50 Ohm		Stainless Steel			Beryllium Copper	165 °C	-65 °C	Polytetrafluoroethylene (PTFE)	SMP Jack	Male Pin	500 cycles
McGill Microwave Systems AD-SMAJHDEFIP-1	Plug to Jack	Female Male	Female Socket SMA Jack	Straight	EFI Female Socket HD Plug	HD SMA to EFI	Between Series		Snap-In Threaded	Free Hanging (In-Line)	6000 MHz	Gold	50 Ohm	White Bronze	Beryllium Copper			Beryllium Copper	125 °C	-55 °C	Polytetrafluoroethylene (PTFE)
McGill Microwave Systems AD-SMAP-PSMPJ-1	Plug to Jack	Female Male	Male Pin SMA Plug	Straight		SMA to PSMP	Between Series		Snap-On Threaded	Free Hanging (In-Line)	10 GHz	Gold	50 Ohm	Gold Passivated	Beryllium Copper Stainless Steel			Beryllium Copper	155 °C	-55 °C	Polytetrafluoroethylene (PTFE)	PSMP Jack	Female Socket		Bulkhead	0.16 dB	100 1000 500
McGill Microwave Systems AD-SMAJ-PSMPP-2	Plug to Jack	Female Male	Female Socket SMA Jack	Straight		SMA to PSMP	Between Series	Limited Detent	Snap-On Threaded	Free Hanging (In-Line)	10 GHz	Gold	50 Ohm		Stainless Steel	100 cycles	500 cycles	Beryllium Copper	155 °C	-55 °C	Polytetrafluoroethylene (PTFE)	PSMP Plug	Female Socket			0.16 dB
McGill Microwave Systems AD-SMAPSMAP-2	Plug to Plug	Male	Male Pin SMA Plug	Right Angle		SMA to SMA	Same Series		Threaded	Free Hanging (In-Line) Right Angle	22 GHz	Gold	50 Ohm	Gold	Brass			Beryllium Copper	165 °C	-65 °C	Polytetrafluoroethylene (PTFE)	SMA Plug	Male Pin	500 cycles
McGill Microwave Systems AD-SMAJHDEFIJ-2	Jack to Jack	Female	Female Socket SMA Jack	Straight	EFI HD Jack Male Pin	HD SMA to EFI	Between Series	Smooth Bore	Snap-In Threaded	Free Hanging (In-Line)	6000 MHz	Gold	50 Ohm	White Bronze	Brass			Beryllium Copper	165 °C	-65 °C	Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE)			100 cycles
McGill Microwave Systems AD-SMAPAMC4J-1	Plug to Jack	Female Male	Male Pin SMA Plug	Straight		SMA to AMC4	Between Series		Threaded	Free Hanging (In-Line)	6000 MHz	Gold	50 Ohm		Stainless Steel			Brass	165 °C	-65 °C	Polytetrafluoroethylene (PTFE)	AMC4 Jack	Female Socket	100 cycles
McGill Microwave Systems AD-SMAJSMPP-1	Plug to Jack	Female Male	Female Socket SMA Jack	Straight		SMA to SMP	Between Series		Snap-On Threaded	Free Hanging (In-Line)	18 GHz	Gold	50 Ohm	Gold	Beryllium Copper			Beryllium Copper			Polytetrafluoroethylene (PTFE)	SMP Plug	Male Pin
