Q-0304E0 Series

Catalog

CBL ASSY BNC-TNC JCK-JCK 29.53"

Part	Frequency - Max	Style	2nd Contact Gender	1st Connector	2nd Connector	1st Contact Gender	2nd Connector Mounting Feature	2nd Connector Mounting Type	1st Connector Mounting Type	Features	Cable Type	Length	Overall Impedance	Color	Length (ft)

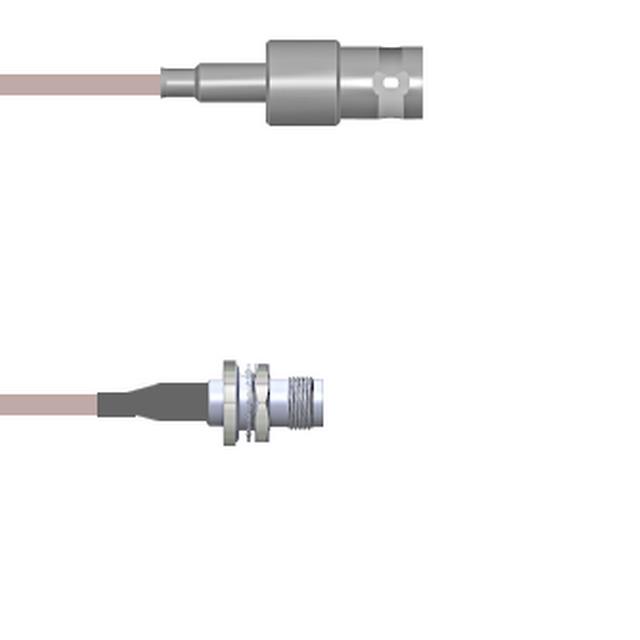

McGill Microwave Systems Q-0304E0005.75M	4 GHz	BNC TNC	Female	BNC Jack	TNC Jack	Female	Bulkhead - Front Side Nut	Panel Mount	Free Hanging (In-Line)	Shielded	316 RG	29.53 in	50 Ohms	Copper
McGill Microwave Systems Q-0304E0005084i	4 GHz	BNC TNC	Female	BNC Jack	TNC Jack	Female	Bulkhead - Front Side Nut	Panel Mount	Free Hanging (In-Line)	Shielded	316 RG	84 in	50 Ohms	Copper	7 ft
McGill Microwave Systems Q-0304E0005036i	4 GHz	BNC TNC	Female	BNC Jack	TNC Jack	Female	Bulkhead - Front Side Nut	Panel Mount	Free Hanging (In-Line)	Shielded	316 RG	36 in	50 Ohms	Copper
McGill Microwave Systems Q-0304E0005072i	4 GHz	BNC TNC	Female	BNC Jack	TNC Jack	Female	Bulkhead - Front Side Nut	Panel Mount	Free Hanging (In-Line)	Shielded	316 RG	72 in	50 Ohms	Copper
McGill Microwave Systems Q-0304E0005048i	4 GHz	BNC TNC	Female	BNC Jack	TNC Jack	Female	Bulkhead - Front Side Nut	Panel Mount	Free Hanging (In-Line)	Shielded	316 RG	48 in	50 Ohms	Copper
McGill Microwave Systems Q-0304E0005024i	4 GHz	BNC TNC	Female	BNC Jack	TNC Jack	Female	Bulkhead - Front Side Nut	Panel Mount	Free Hanging (In-Line)	Shielded	316 RG	24 in	50 Ohms	Copper
McGill Microwave Systems Q-0304E0005060i	4 GHz	BNC TNC	Female	BNC Jack	TNC Jack	Female	Bulkhead - Front Side Nut	Panel Mount	Free Hanging (In-Line)	Shielded	316 RG	1524 mm	50 Ohms	Copper	5 ft
