332433 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

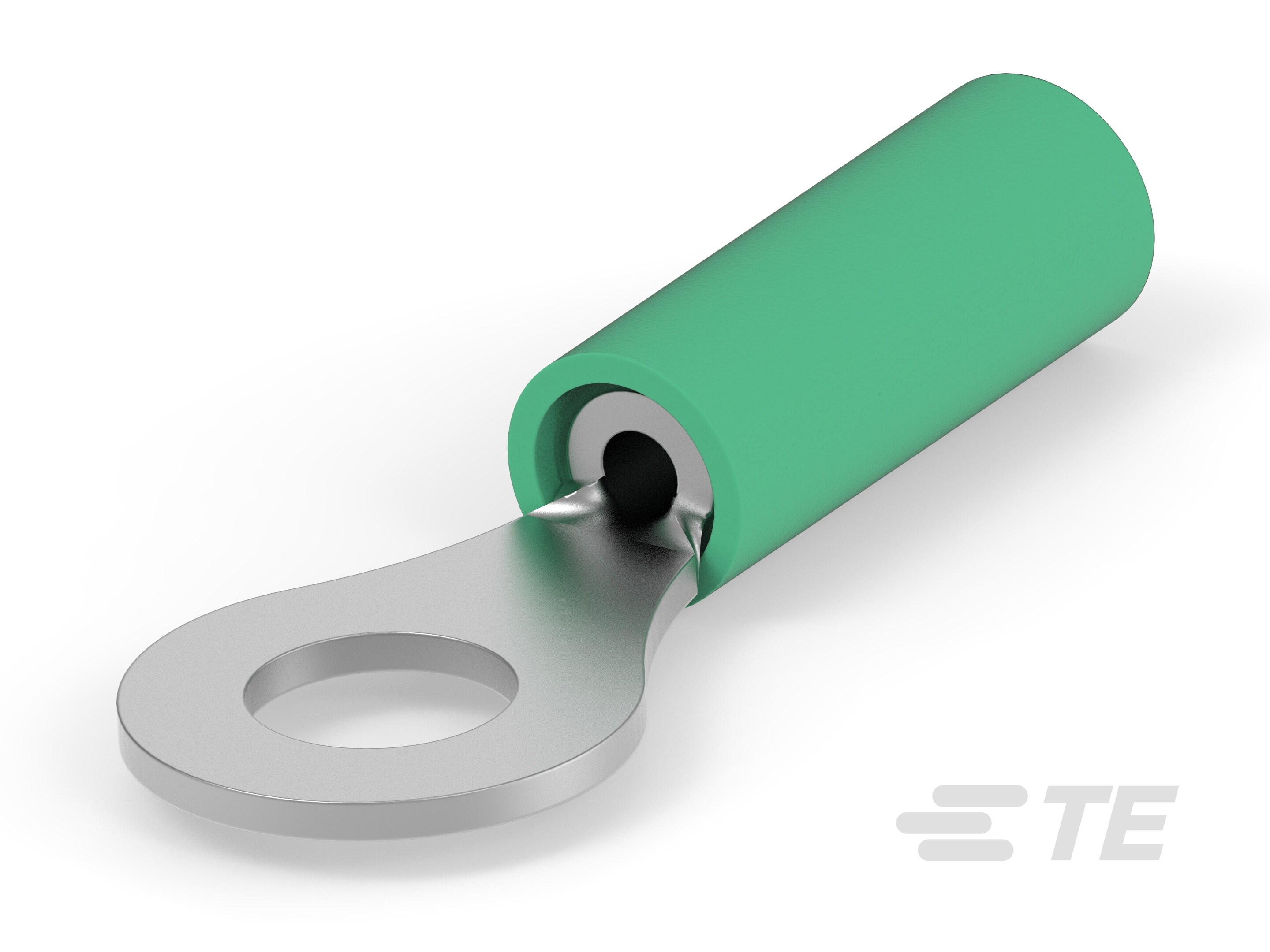

RING TONGUE TERMINAL 20-22AWG COPPER GREEN 19.65MM GOLD OVER NICKEL LOOSE
| Part | Material - Insulation | Insulation Diameter (Max) | Insulation Diameter (Min) | Termination | Length - Overall | Width - Outer Edges | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Terminal Type | Stud/Tab Size | Features | Contact Finish | Insulation | Contact Material | Thickness | Mounting Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polytetrafluoroethylene PTFE | 0.1 in | 0.035 in | Crimp | 0.774 in | 0.281 in | 19.5 AWG | 22 AWG | Circular | 6 Stud | Serrated Termination | Gold | Insulated | Copper | 0.023 in | Free Hanging (In-Line) | Green |
