RT071823 Series

Catalog

RECEPTACLE KIT, JAM NUT, 23 POSITION, FEMALE, SHELL SIZE 18, WITH MACHINED CONTACTS, SIZE 16, 16-18AWG /BAG ROHS COMPLIANT: YES

Part	Operating Temperature (Min)	Operating Temperature (Max)	Current Rating	Contact Finish Thickness - Mating	Mounting Feature	Color	Mounting Type	Termination	Connector Type	Primary Material	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Orientation	Number of Positions	Shell Material	Shell Finish	Ingress Protection Description	Ingress Protection IP Rating	Fastening Type	Voltage Rating	Voltage Rating (Type)	Contact Finish - Mating	Insert Material	Note	Type	Shielding	Contact Type	Contact Size	Housing Color	Contact Shape	Material Flammability Rating	Includes Total Count	Includes	Features

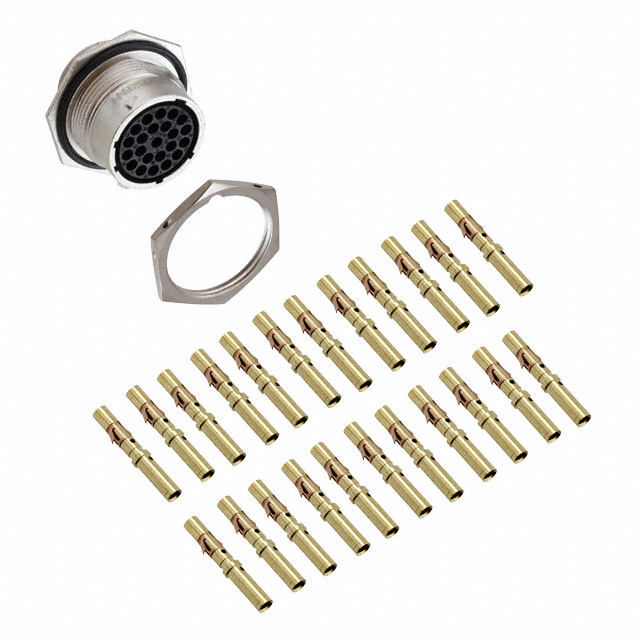

McGill Microwave Systems RT071823SNH-K	-40 °C	105 °C	13 A	Flash	Bulkhead Front Side Nut	Silver	Panel Mount	Crimp	Female Sockets Receptacle	Metal	23	18	N (Normal)	23	Zinc Die Cast	Nickel	Dust Tight Waterproof	IP67	Bayonet Lock	250 V	DC	Gold

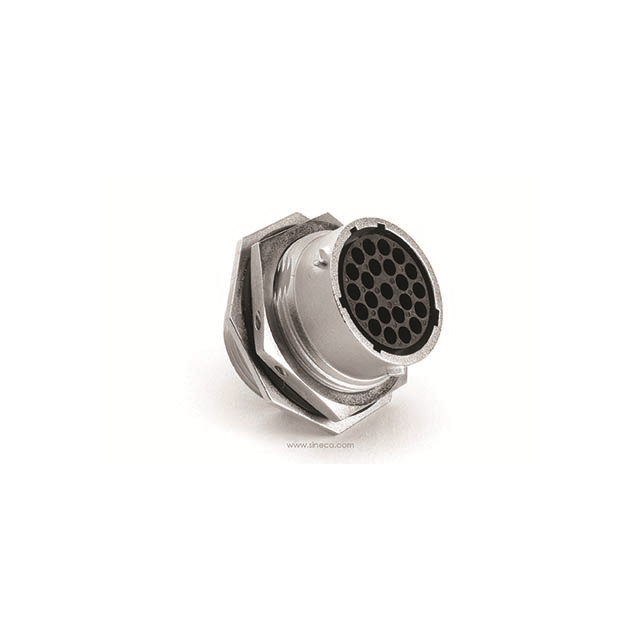

McGill Microwave Systems RT071823SNH03	-40 °C	125 °C			Bulkhead Front Side Nut		Panel Mount		Receptacle Housing		23	18	N (Normal)	23	Zinc Alloy	Nickel	Dust Tight Waterproof	IP67	Bayonet Lock				Thermoplastic	Contacts Not Included	For Female Sockets	Shielded	Crimp	16 S	Silver	Circular	UL94 V-0	4 pcs	Connector Gasket Nut O-Ring

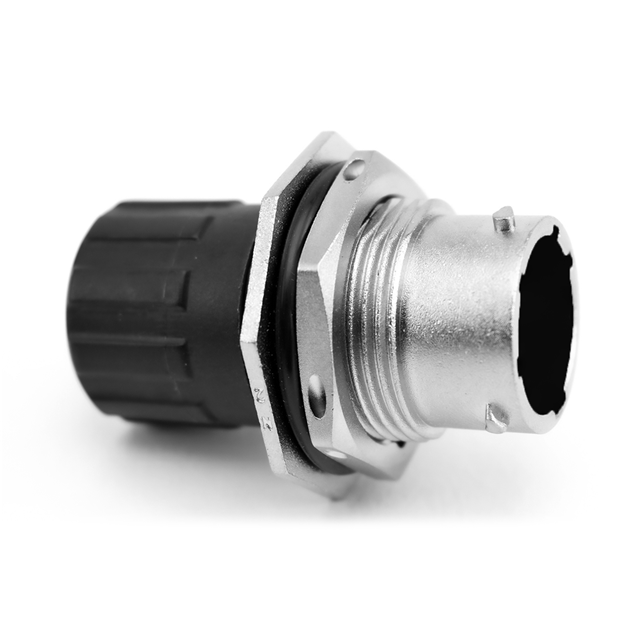

McGill Microwave Systems RT071823PNHEC	-40 °C	105 °C			Bulkhead Front Side Nut		Panel Mount		Receptacle Housing		23	18	N (Normal)	23	Zinc Alloy	Nickel	Dust Tight Waterproof	IP67	Bayonet Lock				Thermoplastic	Contacts Not Included	For Male Pins	Shielded	Crimp	16 S	Silver	Circular	UL94 V-0	3 pcs	Connector Nut O-Ring	Backshell
McGill Microwave Systems RT071823SNH	-40 °C	105 °C			Bulkhead Front Side Nut		Panel Mount		Receptacle Housing		23	18	N (Normal)	23	Zinc Alloy	Nickel	Dust Tight Waterproof	IP67	Bayonet Lock				Thermoplastic	Contacts Not Included	For Female Sockets	Shielded	Crimp	16 S	Silver	Circular	UL94 V-0
