ELVH-015D Series

Catalog

SENSOR 14.94PSID 0.19"

Part	Voltage - Supply	Pressure Type	Output Type	Operating Temperature (Max)	Operating Temperature (Min)	Maximum Pressure	Package Width	Package Name	Package Features	Package Length	Mounting Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Termination Style	Features	Port Style	Port Diameter	Port Gender	Port Feature	Accuracy	Operating Pressure (Max)	Operating Pressure (Min)	Output Bits
McGill Microwave Systems ELVH-015D-HAND-I-NAA5	5 VDC	Differential	Analog Voltage	85 °C	-20 °C	30.02 PSI	13.3 mm	8-DIP	Top Port	0.524 in	Through Hole	5.5 V	2.7 V	PC Pin	Temperature Compensated	Barbed	0.19 "	Male	Tube	0.25 %	14.94 PSI	-1.45 PSI
McGill Microwave Systems ELVH-015D-HAND-C-P2A4	3.3 V	Differential	I2C	50 °C	0 °C	30.02 PSI	13.3 mm	8-DIP	Top Port	0.524 in	Through Hole	5.5 V	2.7 V	PC Pin	Temperature Compensated	Barbed	0.19 "	Male	Tube	0.25 %	14.94 PSI	-1.45 PSI	14 b

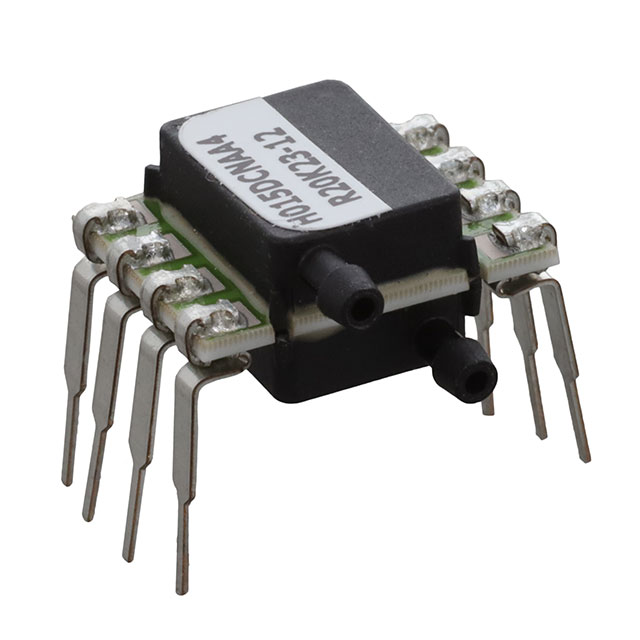

McGill Microwave Systems ELVH-015D-HRRD-C-NAA4	3.3 V	Differential	Analog Voltage	50 °C	0 °C	30.02 PSI	12.8 mm	8-DIP	Dual Ports Same Side	0.504 in	Through Hole	5.5 V	2.7 V	PC Pin	Temperature Compensated	Barbed	0.06 in	Male	Dual Tube	0.25 %	14.94 PSI	-1.45 PSI
McGill Microwave Systems ELVH-015D-HRRD-I-N2A4	3.3 V	Differential	I2C	85 °C	-20 °C	30.02 PSI	12.8 mm	8-DIP	Dual Ports Same Side	0.504 in	Through Hole	5.5 V	2.7 V	PC Pin	Temperature Compensated	Barbed	0.06 in	Male	Dual Tube	0.25 %	14.94 PSI	-1.45 PSI	14 b
