3481 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

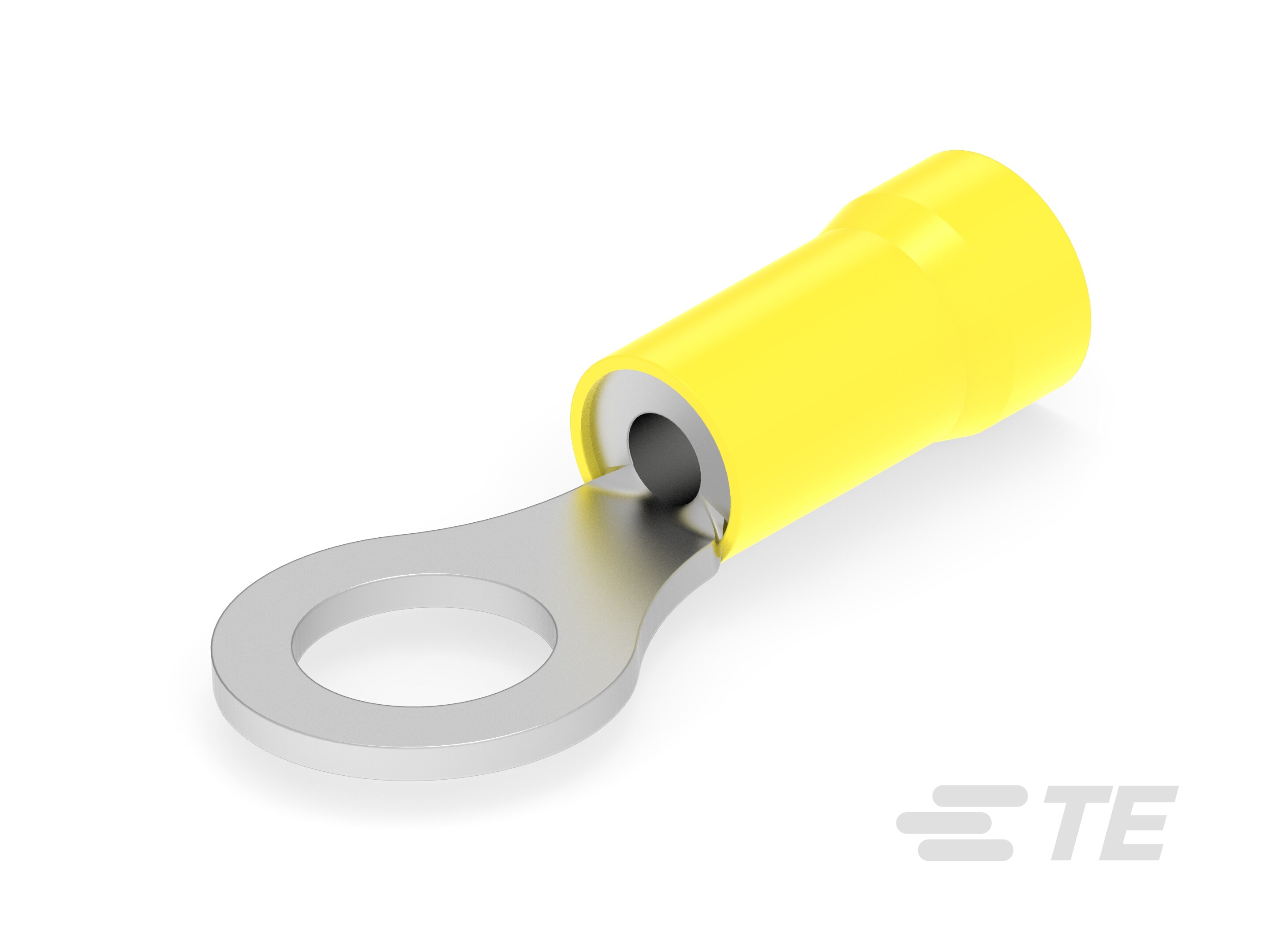

CONN RING CIRC 14-16AWG #5/16
| Part | Insulation | Stud/Tab Size | Stud/Tab Size (Type) | Stud/Tab Size | Contact Finish | Mounting Type | Length - Overall | Width - Outer Edges | Features | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Terminal Type | Color | Termination | Thickness | Contact Material | Insulation Diameter (Min) | Insulation Diameter (Max) | Material - Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Insulated | 0.3125 in | Stud | 16 Stud 5 Stud | Tin | Free Hanging (In-Line) | 1.296 in | 0.531 in | Heavy Duty Serrated Termination | 16 AWG | 14 AWG | Circular | Black Stripe Yellow | Crimp | 0.048 in | Copper | 0.15 in | 0.25 in | Nylon PA Polyamide |
