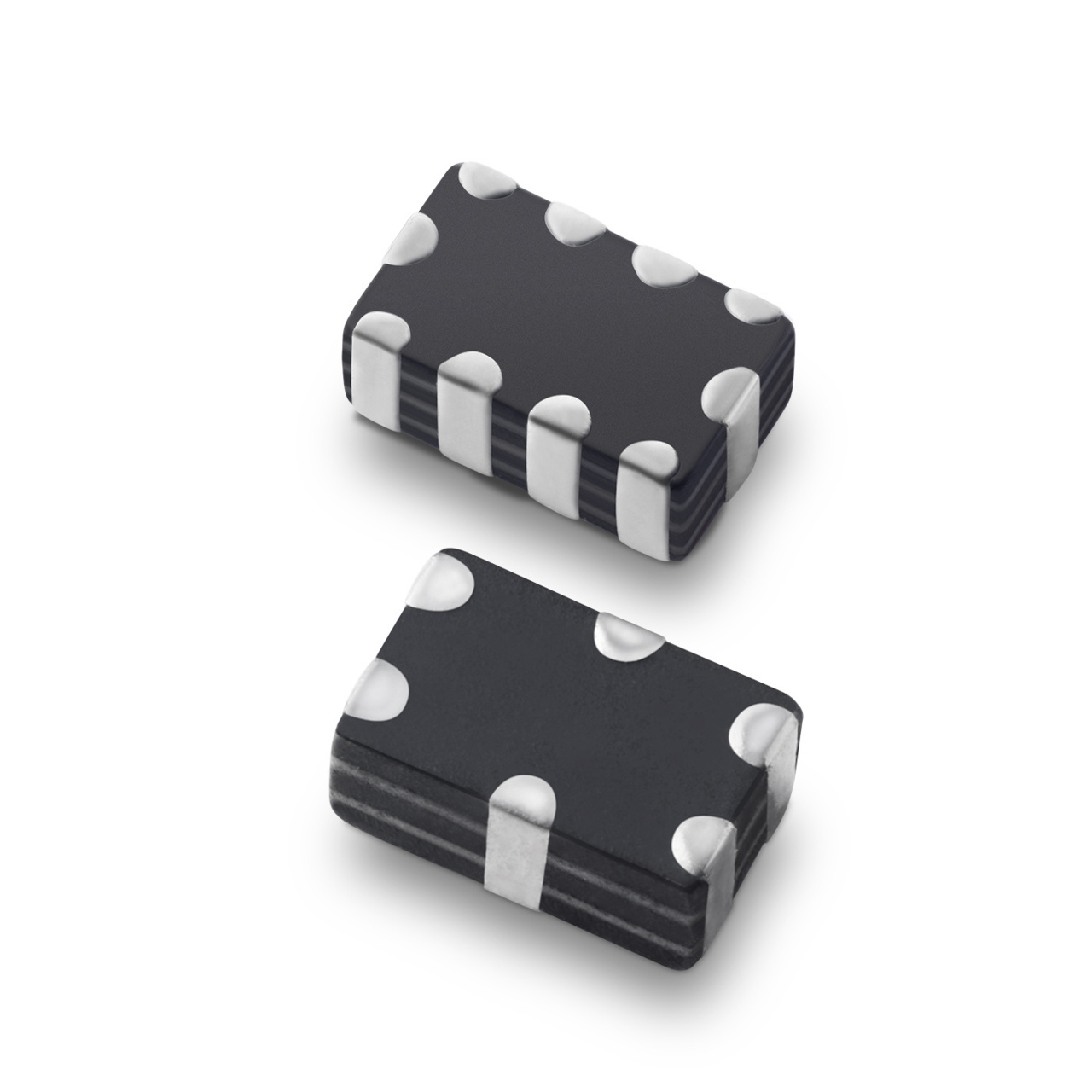

LCFE201204A101TG Series

CMEF 2012 4Lines 100ohm

Catalog

CMEF 2012 4Lines 100ohm

Part	Height (Max)	Size / Dimension Width	Size / Dimension Length	Current Rating (Max)	Features	Operating Temperature (Min)	Operating Temperature (Max)	Impedance	Package Name	Package Leads	DC Resistance (DCR) (Max)	Filter Type	Number of Lines	Mounting Type	Voltage Rating - DC
LITTELFUSE LCFE201204A101TG	0.033 in	0.047 in	0.079 in	100 mA	TVS Diode ESD Protection	-40 °C	85 °C	100 Ohms	0805 (2012 Metric)	10 Leads	4 Ohm	Signal Line	4	Surface Mount	5 V

Catalog

CMEF 2012 4Lines 100ohm

Description

Common Mode Noise Filters attenuate the common mode noise that is problematic in differential transmission (examples: USB, HDMI and MIPI), balanced transmission, power supply lines, and audio lines. Common Mode Noise Filters (CMF) are ideal for suppressing unwanted common mode noise with frequencies ranging from hundred megahertz to gigahertz with no adverse effect on the signals (differential cut-off frequency) and also offers additional ESD protection functions.
