RT00123 Series

Catalog

CONN RCPT HSNG MALE 3POS PNL MNT

Part	Connector Type	Shell Size - Insert Length	Shell Size - Insert Width	Shielding	Ingress Protection Description	Ingress Protection IP Rating	Housing Color	Shell Finish	Mounting Type	Number of Positions	Contact Size	Type	Material Flammability Rating	Contact Type	Shell Material	Fastening Type	Mounting Feature	Orientation	Insert Material	Contact Shape	Operating Temperature (Min)	Operating Temperature (Max)	Note	Current Rating	Contact Finish - Mating	Voltage Rating	Voltage Rating (Type)	Contact Finish Thickness - Mating	Primary Material	Termination	Color
McGill Microwave Systems RT00123PNH	Receptacle Housing	12 mm	3 mm	Shielded	Dust Tight Waterproof	IP67	Silver	Nickel	Panel Mount	3	16 S	For Male Pins	UL94 V-0	Crimp	Zinc Alloy	Bayonet Lock	Flange	N (Normal)	Thermoplastic	Circular	-40 °C	105 °C	Contacts Not Included

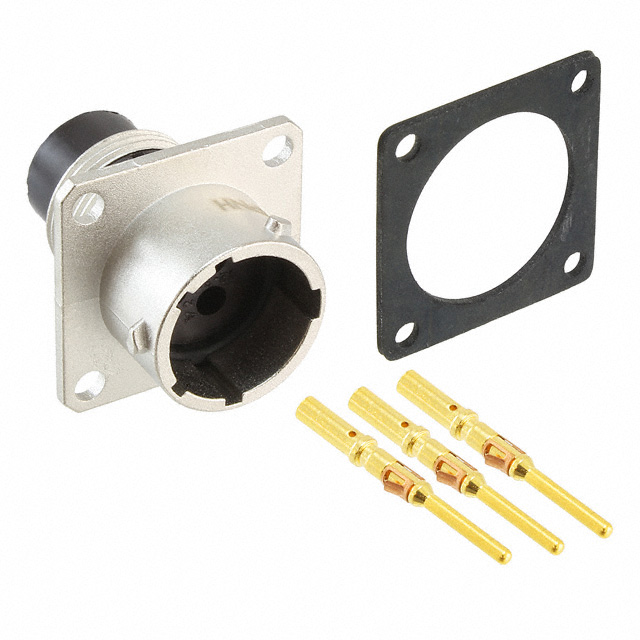

McGill Microwave Systems RT00123PNH-K	Male Pins Receptacle	12 mm	3 mm		Dust Tight Waterproof	IP67		Nickel	Panel Mount	3					Zinc Die Cast	Bayonet Lock	Flange	N (Normal)			-40 °C	105 °C		13 A	Gold	250 V	DC	Flash	Metal	Crimp	Silver

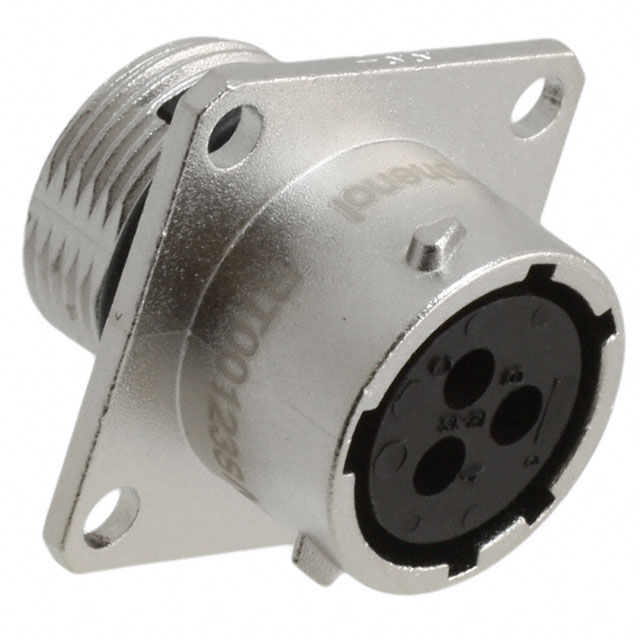

McGill Microwave Systems RT00123SNH	Receptacle Housing	12 mm	3 mm	Shielded	Dust Tight Waterproof	IP67	Silver	Nickel	Panel Mount	3	16 S	For Female Sockets	UL94 V-0	Crimp	Zinc Alloy	Bayonet Lock	Flange	N (Normal)	Thermoplastic	Circular	-40 °C	105 °C	Contacts Not Included
