CC-03BMMB Series

Catalog

X-LOK, MIDDLE SIZE, 20A, 03 PINS

Part	Contact Finish - Mating	Backshell Material, Plating	Shell Size - Insert	Mounting Type	Current Rating	Ingress Protection IP Rating	Ingress Protection Description	Orientation	Contact Material	Number of Positions	Primary Material	Shielding	Termination	Insert Material	Shell Material	Voltage Rating	Fastening Type	Features	Operating Temperature (Min)	Operating Temperature (Max)	Cable Opening (Max)	Cable Opening (Min)	Color	Connector Type	Position Types	Voltage Rating (Type)	Material Flammability Rating
McGill Microwave Systems CC-03BMMB-QL8MPP	Silver	Thermoplastic	C	Free Hanging (In-Line)	20 A	IP68	Dust Tight Waterproof	Keyed	Copper Alloy	3	Plastic	Unshielded	Screw	Thermoplastic	Thermoplastic	300 VAC/DC	Bayonet Lock	Backshell	-40 °C	105 °C	0.394 in	0.315 in	Black	Male Pins Plug

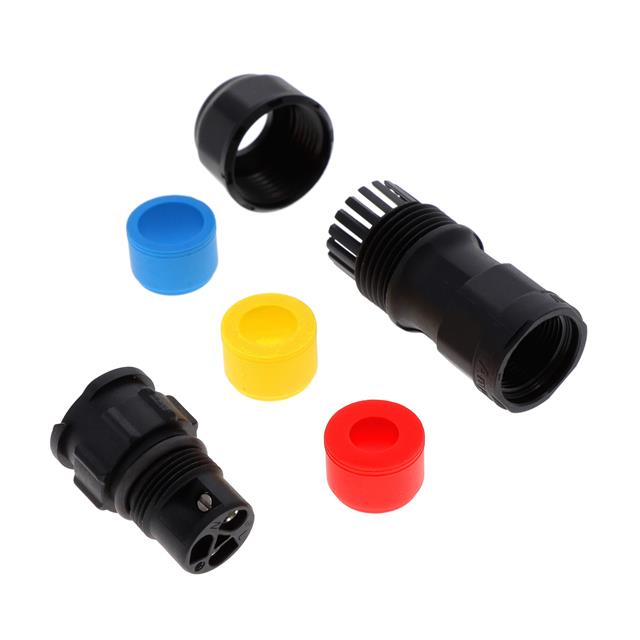

McGill Microwave Systems CC-03BMMB-QL8APP	Gold		C	Free Hanging (In-Line)	20 A	IP68	Dust Tight Waterproof	Keyed	Copper Alloy	3	Plastic	Unshielded	Screw	Glass Filled Nylon PA Polyamide	Thermoplastic	300 VAC/DC	Push-Pull	Backshell	-40 °C	105 °C	0.472 in	0.236 in	Black	Male Pins Receptacle	PE Power	DC	UL94 V-0
