Power Diode Discretes-FRED TO-3P (3)
Description
AI
The FRED Low Vf series offers improved forward voltage characteristics and breakdown voltages up to 1200V.
Beta
⌘K
Power Diode Discretes-FRED TO-3P (3)
Power Diode Discretes-FRED TO-3P (3)
| Part | Speed - Fast Recovery (Maximum) | Speed - Fast Recovery (Minimum) | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Mounting Type | Technology | Package Name | Diode Pair Count | Diode Configuration | Reverse Recovery Time (trr) | Package / Case | Voltage - DC Reverse (Vr) (Max) | Voltage - Forward (Vf) (Max) | Current - Reverse Leakage | Current - Average Rectified (Io) (per Diode) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

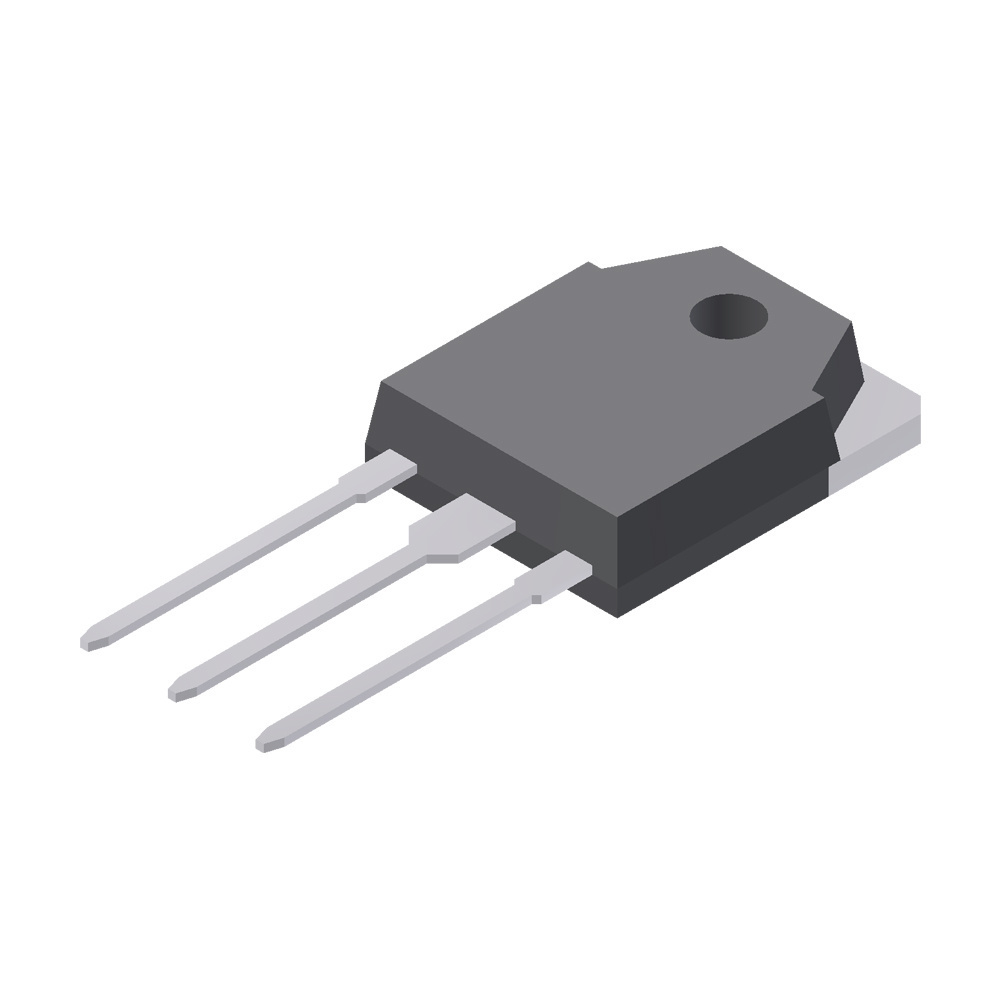

 LITTELFUSE | 500 ns | 200 mA | 175 °C | -55 °C | Through Hole | Standard | TO-3P | 1 pair | Common Cathode | 35 ns | SC-65-3 TO-3P-3 | 200 V | 1.34 V | 1 µA | 30 A |

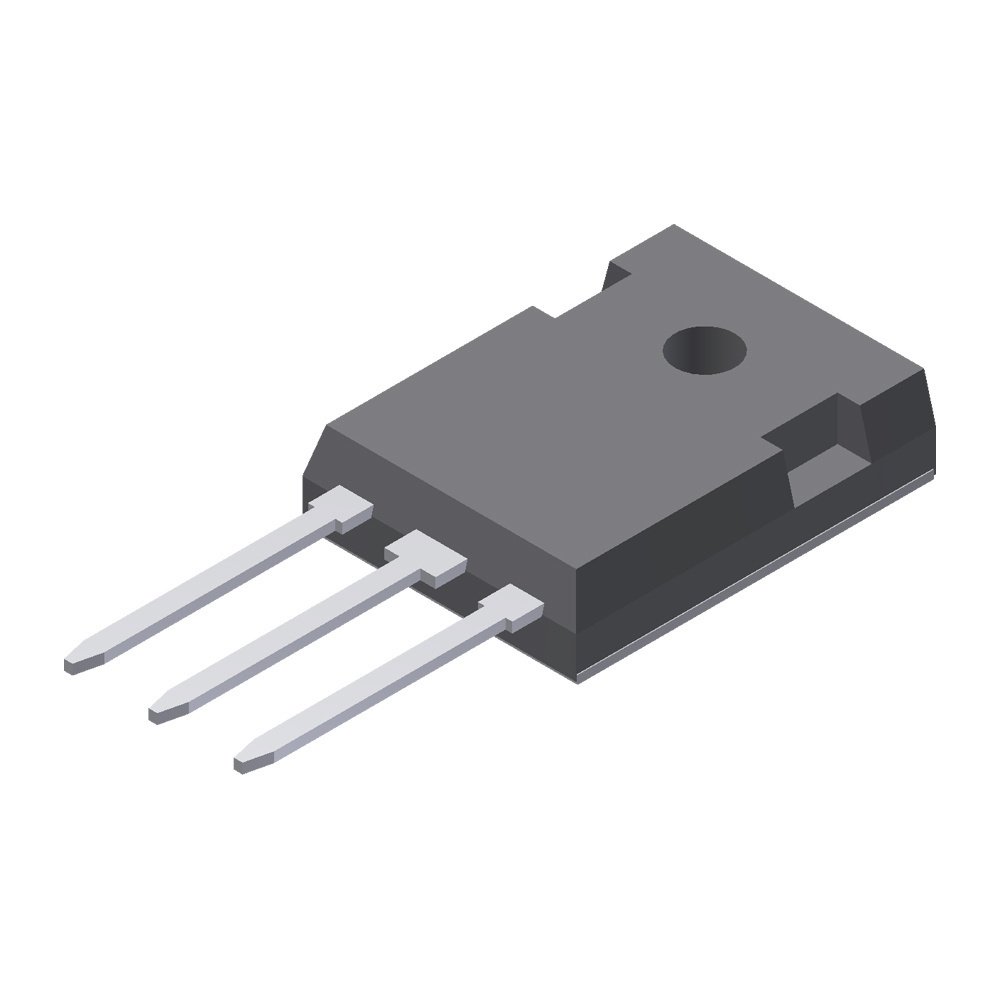

 LITTELFUSE | 500 ns | 200 mA | 175 °C | -55 °C | Through Hole | Standard | TO-247AD | 1 pair | Common Cathode | 35 ns | TO-247-3 | 200 V | 1.34 V | 1 µA | 30 A |
