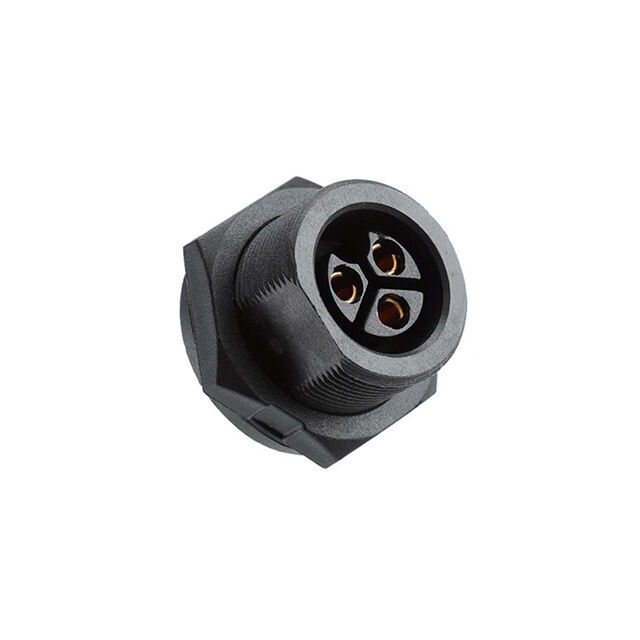

ACD-09PMFS Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
MIDDLE STAMPING PIN
| Part | Shell Size - Insert | Number of Positions | Connector Type | Contact Finish - Mating | Operating Temperature (Min) | Operating Temperature (Max) | Mounting Type | Insert Material | Mounting Feature | Ingress Protection Description | Ingress Protection IP Rating | Current Rating | Fastening Type | Orientation | Material Flammability Rating | Primary Material | Termination | Color | Voltage Rating | Contact Material | Shell Finish | Shielding | Shell Material | Voltage Rating (Type) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | C | 9 | Female Sockets Receptacle | Gold | -40 °C | 105 °C | Panel Mount | Glass Filled Nylon PA Polyamide | Bulkhead Front Side Nut | Dust Tight Waterproof | IP67 | 5 A | Threaded | Keyed | UL94 V-0 | Plastic | Solder Cup | Black | 300 VAC/DC | Copper Alloy | Nickel | Unshielded | ||
 McGill Microwave Systems | C | 9 | Female Sockets Receptacle | Gold | -40 °C | 105 °C | Panel Mount | Glass Filled Nylon PA Polyamide | Bulkhead Front Side Nut | Dust Tight Waterproof | IP67 | 5 A | Bayonet Lock | Keyed | UL94 V-0 | Plastic | Solder Cup | Black | 250 V | Copper Alloy | Unshielded | Glass Filled Nylon Polyamide (PA) | DC |
