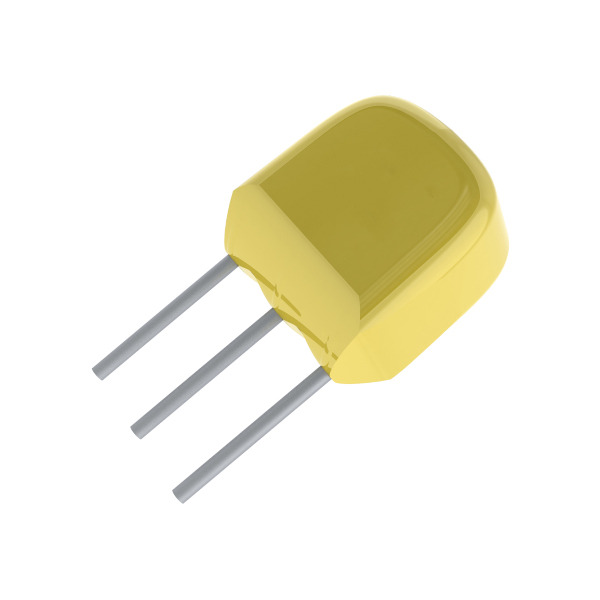

T398 Series

Manufacturer: KEMET

Catalog

TANTALUM CAPACITORS - SOLID LEADED 25V 1UF 10%

Part	Capacitance	Height - Seated (Max)	Lead Spacing	Type	Tolerance	Voltage - Rated	Size / Dimension Length	Size / Dimension Width	Manufacturer Size Code	Package Leads	Package Name	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	ESR (Equivalent Series Resistance)	Features
KEMET T398A105K025AT	1 µF	0.354 in	0.1 in	Conformal Coated	10 %	25 VAC	0.28 in	0.189 in	A	3 Leads	Radial	125 °C	-55 °C	Through Hole	10 Ohm	General Purpose
KEMET T398H226K025AT	22 µF	0.441 in	0.1 in	Conformal Coated	10 %	25 VAC	0.28 in	0.272 in	H	3 Leads	Radial	125 °C	-55 °C	Through Hole	1.5 Ohm	General Purpose
KEMET T398F336M010AS	33 µF	0.429 in	0.1 in	Conformal Coated	20 %	10 V	0.28 in	0.24 in	F	3 Leads	Radial	125 °C	-55 °C	Through Hole	2.1 Ohm	General Purpose
KEMET T398G475M050AT7301	4.7 µF	0.441 in	0.1 in	Conformal Coated	20 %	50 V	0.28 in	0.248 in	G	3 Leads	Radial	125 °C	-55 °C	Through Hole	2.5 Ohm	General Purpose
KEMET T398E106M016AS	10 µF	0.413 in	0.1 in	Conformal Coated	20 %	16 V	0.28 in	0.228 in	E	3 Leads	Radial	125 °C	-55 °C	Through Hole	3.2 Ohm	General Purpose
KEMET T398A105K035AT	1 µF	0.354 in	0.1 in	Conformal Coated	10 %	35 V	0.28 in	0.189 in	A	3 Leads	Radial	125 °C	-55 °C	Through Hole	8 Ohm	General Purpose
KEMET T398B225M025AT7301	2.2 µF	0.366 in	0.1 in	Conformal Coated	20 %	25 VAC	0.28 in	0.189 in	B	3 Leads	Radial	125 °C	-55 °C	Through Hole	6 Ohm	General Purpose
KEMET T398J156M035AT	15 µF	0.48 in	0.1 in	Conformal Coated	20 %	35 V	0.299 in	0.299 in	J	3 Leads	Radial	125 °C	-55 °C	Through Hole	1.6 Ohm	General Purpose
