CG2430 Series

Catalog

IC RF SWITCH SP3T 6GHZ 8TSON

Part	Test Frequency	Operating Temperature (Min)	Operating Temperature (Max)	Package Name	Circuit	Isolation	Insertion Loss	Frequency Range (Max)	Frequency Range (Min)	Package / Case	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	RF Type	IIP3	P1dB	Impedance	For Use With/Related Products	Supplied Contents	Frequency (Max)	Frequency (Min)	Contents	Utilized IC / Part	Type	Package Length	Package Width

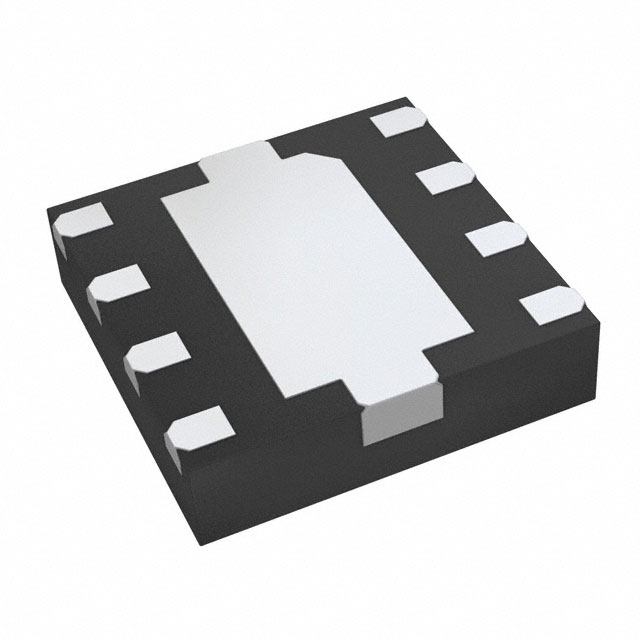

Renesas Electronics Corporation CG2430X1-C2	6 GHz	-45 °C	85 °C	8-TSON	SP3T	25 dB	0.6 dB	6 GHz	100 MHz	8-XFDFN Exposed Pad	1.8 V	5 V	802.11a ac b g n	55 dBm	31 dBm	50 Ohm

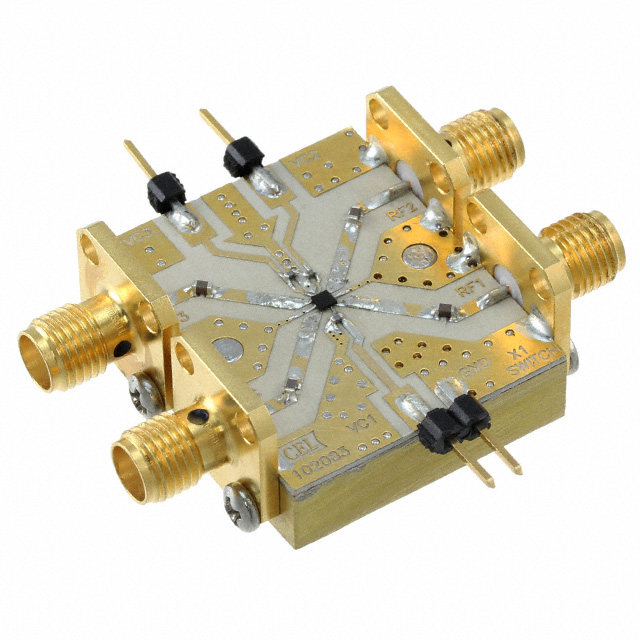

Renesas Electronics Corporation CG2430X1-EVAL																	CG2430X1	Board(s)	6 GHz	100 MHz	Board	CG2430X1	SP3T Switch
Renesas Electronics Corporation CG2430X1	6 GHz	-45 °C	85 °C	8-TSON	SP3T		0.6 dB	6 GHz	100 MHz	8-XFDFN Exposed Pad	1.8 V	5 V	802.11a ac b g n		31 dBm	50 Ohm								1.5 mm	1.5 mm
