AD7904 Series

Catalog

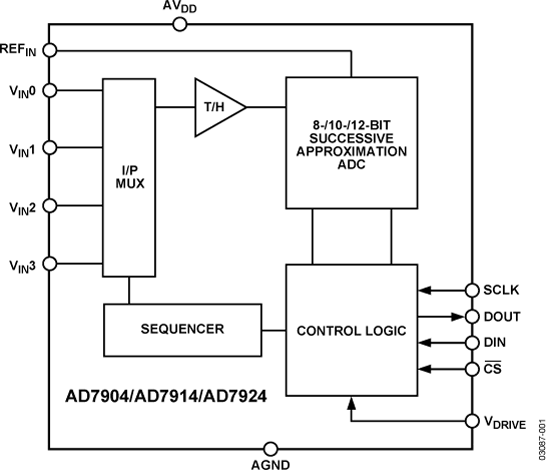

4-CHANNEL, 1 MSPS, 8-BIT A/D CONVERTER WITH SEQUENCER IN 16-LEAD TSSOP

Part	Operating Temperature (Min)	Operating Temperature (Max)	Number of A/D Converters	Configuration	Sampling Rate (Per Second)	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Ratio - ADC	Ratio - S/H	Package Name	Number of Inputs	Number of Bits	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Mounting Type	Package Length	Package Width	Architecture	Data Interface	Input Type	Reference Type	Grade
Analog Devices Inc./Maxim Integrated AD7904BRUZ-REEL7	-40 °C	85 °C	1 count	MUX-S/H-ADC	1 MHz	2.7 V	5.25 V	1	1	16-TSSOP	4	8 bits	5.25 V	2.7 V	Surface Mount	0.173 in	4.4 mm	SAR	DSP SPI	Single Ended	External
Analog Devices Inc./Maxim Integrated AD7904BRU	-40 °C	85 °C	1 count	MUX-S/H-ADC	1 MHz	2.7 V	5.25 V	1	1	16-TSSOP	4	8 bits	5.25 V	2.7 V	Surface Mount	0.173 in	4.4 mm	SAR	DSP SPI	Single Ended	External
Analog Devices Inc./Maxim Integrated AD7904BRUZ	-40 °C	85 °C	1 count	MUX-S/H-ADC	1 MHz	2.7 V	5.25 V	1	1	16-TSSOP	4	8 bits	5.25 V	2.7 V	Surface Mount	0.173 in	4.4 mm	SAR	DSP SPI	Single Ended	External
Analog Devices Inc./Maxim Integrated AD7904WYRUZ-REEL7	-40 °C	125 °C	1 count	MUX-S/H-ADC	1 MHz	2.7 V	5.25 V	1	1	16-TSSOP	4	8 bits	5.25 V	2.7 V	Surface Mount	0.173 in	4.4 mm	SAR	DSP SPI	Single Ended	External	Automotive
Analog Devices Inc./Maxim Integrated AD7904BRUZ-REEL	-40 °C	85 °C	1 count	MUX-S/H-ADC	1 MHz	2.7 V	5.25 V	1	1	16-TSSOP	4	8 bits	5.25 V	2.7 V	Surface Mount	0.173 in	4.4 mm	SAR	DSP SPI	Single Ended	External
